Hardness Sorting Flaw Detection Synchronized Eddy Current Testing Machine Two Lines 4 Channels STY-2

  • Hardness Sorting Flaw Detection Synchronized Eddy Current Testing Machine Two Lines 4 Channels STY-2
  • Hardness Sorting Flaw Detection Synchronized Eddy Current Testing Machine Two Lines 4 Channels STY-2
  • Hardness Sorting Flaw Detection Synchronized Eddy Current Testing Machine Two Lines 4 Channels STY-2
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number STY-2
Minimum Order Quantity 1
Price personnally dicuss
Packaging Details 100mm×650mm×900mm(customizable)
Delivery Time 5-8days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Namee Eddy Current Testing Machine Associativity Hardness Sorting And Flaw Detection Are Synchronized
Channel Two Lines 4 Channels Excitation Frequency Variety
Excitation Power 0~100W Gain Range 0-90dbcontinuously Adjustable, Step: 0.5dB
Display Mode Square Fluorescent Oscilloscope Tube Detection Speed 2500~3000 Pieces/hour
Detection Object Various Parts Of Magnetic Conductive Materials Operating Temperature Tippically From -15°C To + 55°C
Storage Temperature Tippically From -20℃ To +60℃ Operating Voltage AC220±10 V
Highlight

Synchronized Eddy Current Testing Machine

,

Two Lines Eddy Current Testing Machine

,

4 Channels Eddy Current Testing Machine
Leave a Message
Product Description

Hardness Sorting and Flaw Detection Synchronized Eddy Current Testing Machine - Two Lines 4 Channels


Descriptions

STY-2 eddy current testing machine can carry out hardness sorting and flaw detection simultaneously, used in industrial applications to perform simultaneous hardness and flaw inspections on materials.

Because ferromagnetic substances can sense a certain current value in the alternating magnetic field. Our probe emits a uniform magnetic field, and the current induced in the magnetic field is not the same for the workpiece with the same size and different hardness and cracks in the surface. STY-2 eddy current testing machine compares the current values induced by the workpiece and standard samples, displaying results as magnetic flux on the computer screen. This enables distinction of hardness cracks in same-sized workpieces.


Specifications

STY-2 eddy current testing machine specifications
Frequency Range Variety
Gain range 0-90db continuously adjustable, step: 0.5dB
Excitation power 0~100W
Detection speed 2500~3000 pieces/hour
Operating voltage AC220±10V
Operating Temperature Typically from -15°C to +55°C
Storage temperature Typically from -20℃ to +60℃
Display mode Square fluorescent oscilloscope tube
Detection object Various parts of magnetic conductive materials
Relative humidity Not more than 85%


Other Descriptions

  1. STY-2 eddy current testing machine is multi-functional. The instrument inspects the workpiece after testing its hardness. If the hardness is not qualified, flaw detection will not be performed.
  2. Qualified products will be passed thourgh both hardness and inspection tests. Any unqualified workpiece is automatically seperated by the robot arm and placed on a different transmission track.
  3. The surface state of measured workpieces MUST be consistent, with identical specifications and sizes.
  4. Some processing error is allowed within relevant standards.

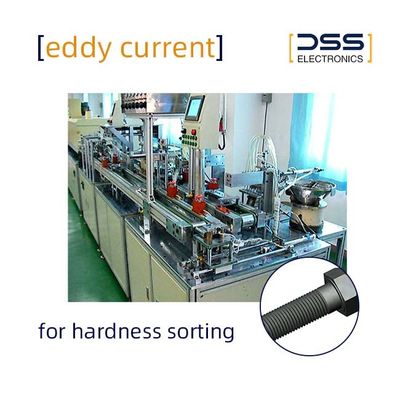

STY-2 eddy current testing machine operating picture

Hardness Sorting Flaw Detection Synchronized Eddy Current Testing Machine Two Lines 4 Channels STY-2 0
