Intelligent Digital Portable Eddy Current Flaw Detector of Steel pipe metal pipe

Intelligent Digital Portable Eddy Current Flaw Detector of Steel pipe metal pipe

Brand Name: Suzhou Desisen (DSS) Electronics
Model Number: FET-99ST
MOQ: 1 set
Price: 8400-13900 USD
Payment Terms: T/T
Supply Ability: 100 sets
Detail Information
Place of Origin:
China
Certification:
ISO 9001, CE
Detection Object:
Automatic Flaw Detection Of Various Metal Parts, Automobile Parts, Metal Pipes, Rods, Wires, Inner Wall Of Pipes, Drilling Plates, Bearing Rings, Square Billets, Round Billets And Other Mechanical Parts.
Frequency Range:
64 Hz ~ 10 MHz, To Meet The Detection Of Different Metal Parts
Detection Speed:
0-780m/min
Power Source:
Lithium Batteries Can Be Used For 6-12 Hours On A Full Charge
Packaging Details:
wooden
Supply Ability:
100 sets
Highlight:

Intelligent Eddy Current Flaw Detector

,

Digital Eddy Current Flaw Detector

,

Portable Eddy Current Flaw Detector

Product Description

Product Description:

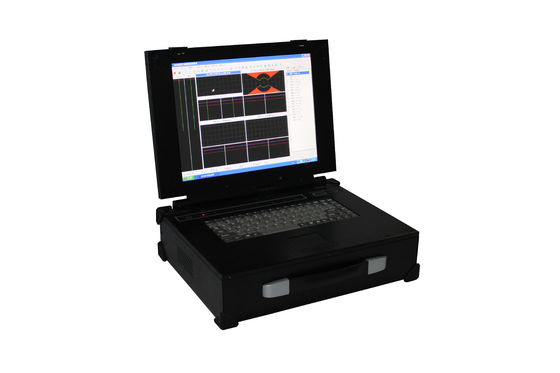

Portable FET-99ST Intelligent Digital Eddy Current Flaw Detector is easy to carry and suitable for on-line, off-line and field flaw detection of all kinds of metal parts, automobile parts, metal tubes, rods and wires, and it can be used for automatic flaw detection of other mechanical parts such as inner wall of tubes, drilling boards, bearing rings, aperture plate blanks, billets and round billets, etc. It has a relatively independent testing channel which can drive the combined probes consisting of absolute and differential coils. With relatively independent test channel, can drive the combined probe composed of absolute and differential coils, the detection channel at the same time for data acquisition, used to detect longitudinal cracks and transverse defects (such as barge mouth) in the production of metal tubes, bars, wires, dark meeting, open cracks and other axial defects have a high sensitivity.

Features:

The signals acquired by the testing channel can be displayed on the screen in real time as impedance plane and time base scanning diagrams. It has the ability to adapt to the testing requirements of different metal materials, wires, etc. And due to the fully digital design, it can establish multiple standard testing procedures or expert systems within the instrument, which is convenient for users to call when changing product specifications, and it is equipped with input and output control interfaces, which is convenient for connecting the testing site with various equipments and synchronous work, constituting a highly automated whole.



Technical Parameters:

Name Portable Eddy Current Flaw Detector FET-99ST
Detection channel  1 (can be extended according to the number of channels)
frequency range 64 Hz ~ 10 MHz, to meet the detection of different metal parts
gain range 0 ~ 90.0 dB continuously adjustable, step: 1dB
phase rotation 0 ~ 359 ° continuously adjustable, step: 1 deg
Gain ratio (Y/X) 0.1~10.0
Detection speed 0-780m/min
adjustable probe drive (excitation) level 1-10
more in the display mode impedance, time base;
 digital filtering low-pass (0Hz ~ 2000Hz) high-pass (0Hz ~ 2000KHz)
alarm mode sound and light alarm output

delay hardware output alarm, real-time hardware output alarm

non-equal amplitude, asymmetric phase alarm area settings

fast digital / analog electronic balance

with end, end signal removal function

can be stored in a large number of testing programs and testing data

eddy current signal playback expansion function, measuring defects amplitude, phase, digital values

Automatically form a test report (including the number of tests, the number of qualified and unqualified number)

Automatically record and display the number of defects and their location
fading display coefficient 1 ~ 100
Display mode solid line, fading
automatic balance time 1 ~ 1000 seconds
power supply lithium battery once full use 6-12 hours
 Operating temperature  -15 ~ 55 ℃
  Storage temperature -20 ~ 60 ℃
   Relative humidity no more than 85%
  Working voltage DC24V


Support and Services:

Technical Support and Service for Portable Eddy Current Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is FET-99ST.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
