Fully Automatic Eddy Current Flaw Detector Dual Frequency Eight Channel

eddy current flaw detectorIt can detect the inside, outside and end of metal parts at the same time

Introduction to the instrument:

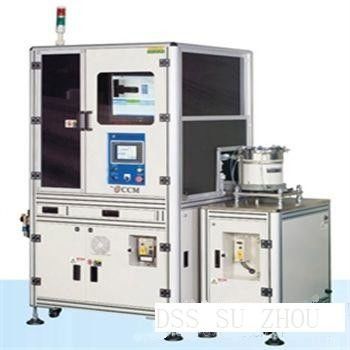

WT-608 automatic eddy-current flaw detector is a fully automatic dual-frequency eight channel digital eddy-current flaw detector integrating optical, electrical and mechanical functions. The workpiece is sent into the waiting area by translation, which can detect the inside, outside and end surface of the metal parts at the same time, automatic feeding and automatic sorting, and has an administrator mode and working mode to facilitate the management of the equipment. The whole equipment is divided into main control system, feeding system and mechanical transmission system. Fully enclosed control cabinet, open aluminum alloy frame transmission device, humanized human-machine interface dialogue, especially suitable for 100% inspection of metal parts.
Functional features:
1. Can detect 0.03mm deep crack. Dual-frequency eight-channel operation
2. The detection surface is inside, outside and end
3. Detection speed 2 seconds/piece
4. Automatic feeding, automatic sorting, automatic counting.
5. No damage to the parts after eddy current inspection.
6. No demagnetization, cleaning and other auxiliary processes are required after inspection.
7. Statistics of the total number of inspected workpieces, qualified number, qualified rate and other functions.
Instrument parameters:
1. Dual-frequency eight-channel operation
2. Device noise <60db. Power consumption <500W (220V).
3. Frequency range: 64Hz-2MHz arbitrary setting
4. Gain: 0-99db, step is 0.1db
5. Phase: 0-360 degrees, step length is 1 degree
