Intelligent Digital Eddy Current Flaw Detector A Relatively Independent Test Channel

  • Intelligent Digital Eddy Current Flaw Detector A Relatively Independent Test Channel
  • Intelligent Digital Eddy Current Flaw Detector A Relatively Independent Test Channel
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number FET-99E
Minimum Order Quantity 1
Price Negotiate
Packaging Details wooden
Delivery Time 5-8days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Eddy Current Flaw Detector Advanced Intelligent Digital
High Sensitivity A Relatively Independent Test Channel Frequency Range 6Hz-9MHz
Gain Range 0-90dbcontinuously Adjustable, Step: 0.5dB Phase Rotation 0 ~ 360° Continuously Adjustable, Step: 1 Deg
Detection Speed 1m/min～360m/min Operating Temperature Tippically From -15°C To + 55°C
Storage Temperature Tippically From -20℃ To +60℃ Operating Voltage AC220±10V
Gain Ratio (Y/X) 0.1 ~ 10.0 Probe Type External Pass-through, Rotary
Display High-resolution LCD Display Mode Impedance, Time Base
Highlight

Digital eddy current flaw detector

,

eddy current flaw detector
Leave a Message
Product Description

Intelligent Digital Eddy Current Flaw Detector A Relatively Independent Test Channel

Descriptions
     FET-99E intelligent digital eddy current flaw detector is suitable for online and offline flaw detection of metal parts such as metal pipe, bar, wire, wire and auto parts, and can be used for automatic flaw detection of other mechanical parts. It has a relatively independent test channel, which can drive the combined probe composed of absolute and differential coils. The detection channel is used for data acquisition at the same time for detecting metal tubes and rods. The longitudinal cracks and transverse defects (such as lapels), dark cracks, open cracks and other axial defects in the production of wire have high sensitivity.

    FET-99E Intelligent Digital  Eddy Current Flaw Detector is an advanced non-destructive testing (NDT) device designed for detecting surface and near-surface defects in conductive materials. It integrates cutting-edge technology with a user-friendly interface.
   FET-99E Intelligent Digital Eddy Current Flaw Detector enhances the efficiency and accuracy of flaw detection in various industries, offering real-time results and a range of advanced features tailored for professional non-destructive testing applications.

Specifications

 FET-99E intelligent digital eddy current flaw detcetor
Frequency Range 6Hz-9MHz
Gain range 0-90dbcontinuously adjustable, step: 0.5dB
Phase rotation 0 ~ 360° continuously adjustable, step: 1 Deg
Detection speed 0-360m/min
Gain ratio (Y/X) 0.1 ~ 10.0
Display High-resolution LCD
Operating voltage AC220±10V
Operating Temperature Tippically from -15°C to + 55°C
Storage temperature Tippically from -20℃ to +60℃
Probe type External pass-through, rotary
Gain ratio (Y/X) 0.1 ~ 10.0
Detection mode Offline on-line inspection
Display mode Impedance, time base
Detection object Pipe, bar, wire, and auto parts



Other descriptions
1,The signal obtained by the detection channel can be displayed on the screen in real time by impedance plan and time base scan.
2,FET-99E intelligent digital eddy current flaw detector has the function of detecting signal playback, two-way access and so on.
3,FET-99E intelligent digital eddy current flaw detector can store a large number of various detection programs and detection data.

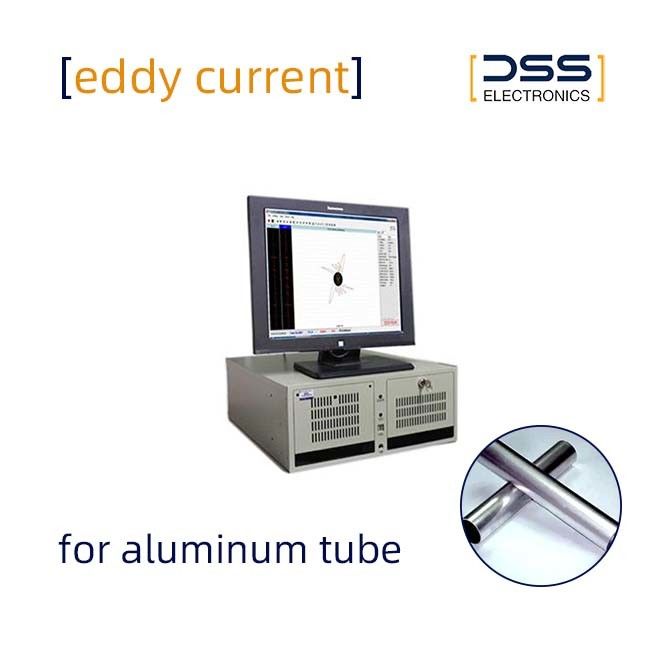

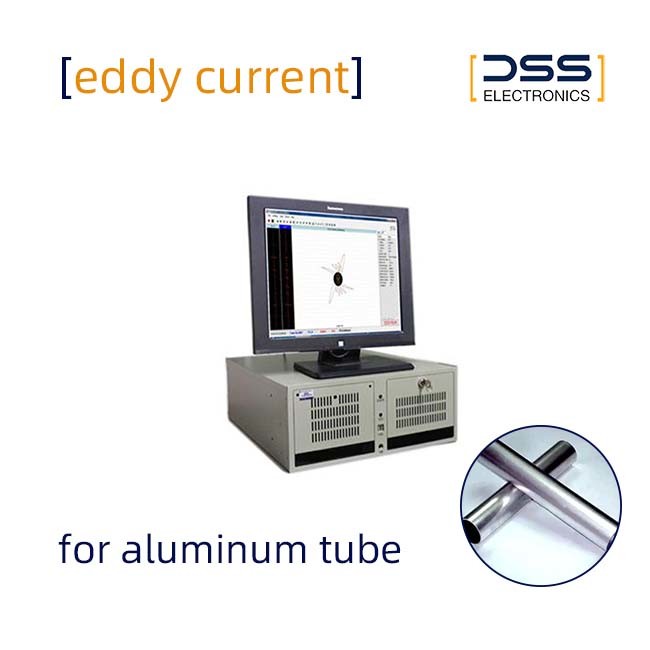

        FET-99E intelligent digital eddy current flaw detector'operating picture
Intelligent Digital Eddy Current Flaw Detector A Relatively Independent Test Channel 0
