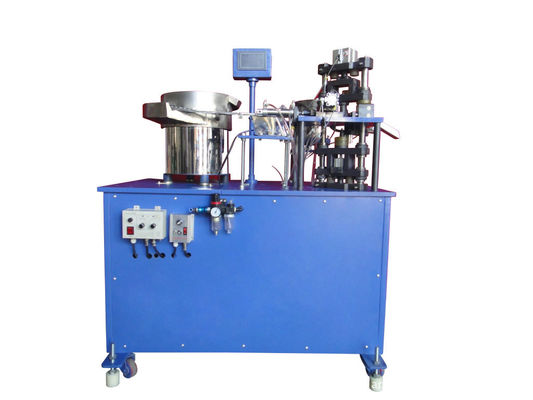

Automatic Double Channel Eddy Current Flaw Detector For Short Metal Rod

Introduction to the instrument:
SWT-662 automatic eddy current flaw detector (double channel), using the most advanced eddy current technology, microcomputer control of automatic mechatronics testing machine. Its powerful function, easy to operate intelligent, high degree of automation. The software written by WINDOWS operating platform makes the instrument more convenient and intelligent. The performance of the instrument is stable and reliable, and it is an ideal equipment for crack detection and hardness sorting of metal parts such as short metal rods (such as needle roller, tungsten rod, pin shaft).
Functional features:
1. Applicable object: crack detection and hardness separation of short metal rod
2. Dual channel (equivalent to the efficiency of two independent machines)
3. Detection frequency range: 100Hz ~ 2MHz adjustable
4. Size: ≧ 0.5mm
5. Can detect ≧0.1MM deep crack, ±1HRC hardness
6. Automatic feeding, automatic sorting, automatic counting, automatic feeding
7. Detection speed 1 SEC/piece (dual channel)
8. Sampling rate 4×25000 times/second
9. Gain: 0-70dB adjustable
10. Phase: 0-360 degrees adjustable, frequency distance is 1 degree
11. Industrial control computer, WINDOWS operating platform flaw detection software
12. No damage to the parts after sorting
