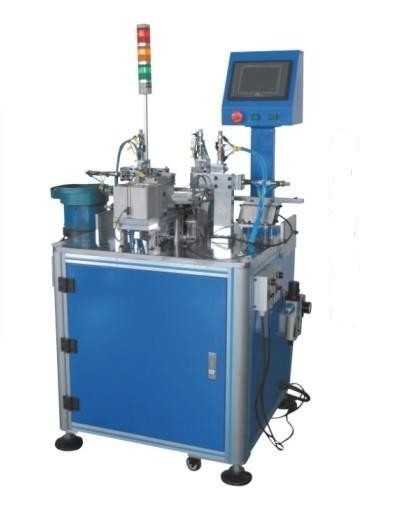

ODM End Eddy Current Inspection Machine Automatic SWT-610

  • ODM End Eddy Current Inspection Machine Automatic SWT-610
  • ODM End Eddy Current Inspection Machine Automatic SWT-610
Place of Origin china
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number SWT-610
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden
Delivery Time 2-3 weeks
Payment Terms T/T
Supply Ability 100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature -15~55℃ Saving Temperature -20~60℃
Relative Humidity Not Exceed 85% Working Voltage AC220±10V
Highlight

ODM Eddy Current Inspection Machine

,

Automatic Eddy Current Inspection Machine

,

End Eddy Current Inspection Machine
Leave a Message
Product Description

Product Description:

SWT-610 end socket eddy currrent flaw detector is an automatic eddy current testing equipment to test flaw on external surface to end socket of axisymmetric metal parts.

Especially suitable for test on cylinder metal parts.

Features:

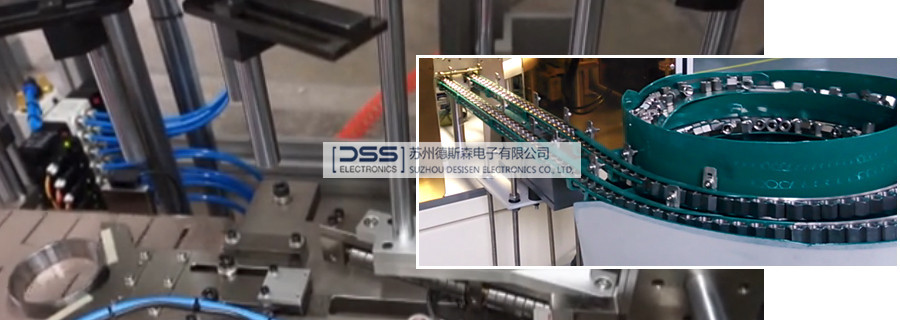

Stepping electric machine drives chain to rotate stepping,and go through probe respectively and testing ,after testing ,when it is rotating ,if qualified ,then the machine will accumulate testing  samples,if is not qualified, then it will be eliminated by air cylinder. The electric control mode uses the light and electricity switch and control box to realize logical control. By outputting of realizing testing signal to testing main engine and probe.

Main engine and probe use preventive multi-frequency and flat pannel display to predict two modes to realize testing signal output


Technical Parameters:


 Portable Eddy Current Flaw Detector SWT-610

Adopting dot mode differential probe

Detecting 0.05MM deep flaw

Detecting surface is two end surface

Detecting speed is 1.5 seconds per piece

Equipment noise <60db.Power consumption <500W(220V)

Automatic supply,sorting ,counting

There is no damage on accessories after eddy flaw detection

No auxiliary process such as wash ,demagnetization


Support and Services:

Technical Support and Service for ERW Automatic Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is SWT-610 Automatic.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
