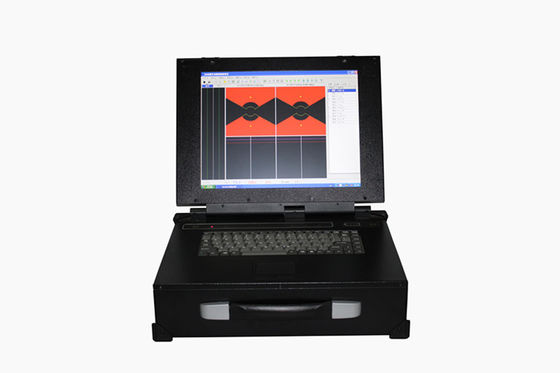

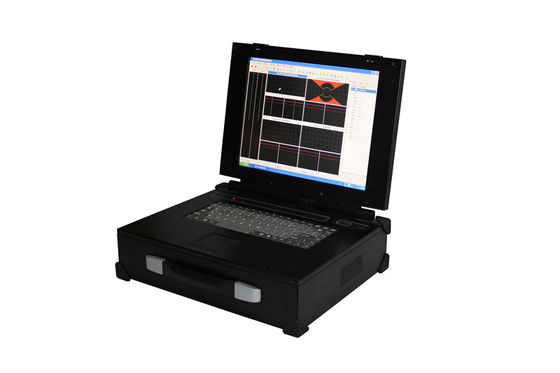

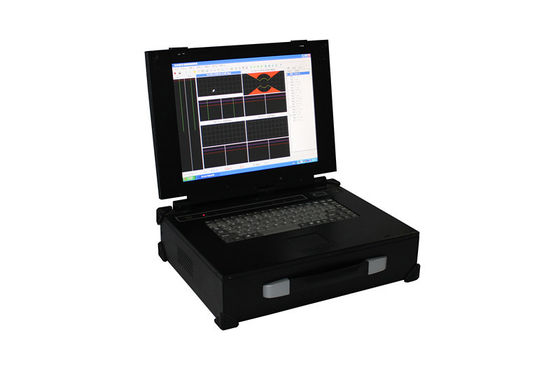

Portable eddy current flaw detector FET-9HS for weld crack detection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Portable Eddy Current Flaw Detector |
||
|---|---|---|---|
Product Description
Product Description:
FET-9HS intelligent digital type eddy current flaw detector is convenient to bring and suitable for online ,offline flaw detection of metal pipe , wire rods,steel pipe,steel rods it can also apply to automatic flaw detection of other mechanical accessories such as the inner wall of the tube,drill plate,bearing coil,hole of the slap,square billet,round billet.Equipped with relative independent testing channel,so it can drive combined probe formed by absolute and differential coil,the detecting channel collect data simultaneously so as to detect longitudinal crack and transverse defect of metal bars,rods,wire rods ,during production. it has high sensitivity on longitudinal defects such as submerged joint and surface opening cracks.It can reliably detect cracks resulted from malfunction during production.
Features:
The signal got by detecting channel can make impedance plane diagram and time base showed on the screen,Suitable for detecting requirements of every kind of metal material,due to adopting full digitization design ,so it can build many standard detecting procedures and professional systems in the instrument.It’s convenient for users to use to change the specifications and be furnished with input and output control connector,convenient to detect connector of scene and many kinds of equipment and work together.
Technical Parameters:
| Name | Portable Eddy Current Flaw Detector FET-9HS |
|---|---|
| Detection channel | 1 (can be extended according to the number of channels) |
| frequency range |
64 Hz～2 MHz,satisfying detection of multiple kinds of metal material |
| gain range | 0 ~ 90.0 dB continuously adjustable, step: 1dB |
| phase rotation | 0 ~ 359 ° continuously adjustable, step: 1 deg |
| Gain ratio | (Y/X) 0.1～10.0 |
| Detection speed |
0-640m/min |
|
Probe drive level is adjustable |
1～8,truly means multifunctional detection |
|
more in the display mode |
impedance, time base; |
| digital filtering | low-pass (0Hz ~ 2000Hz) high-pass (0Hz ~ 2000KHz) |
| alarm mode | sound and light alarm output |
| delay hardware output alarm, real-time hardware output alarm | |
| non-equal amplitude, asymmetric phase alarm area settings | |
| fast digital / analog electronic balance | |
| with end, end signal removal function | |
| can be stored in a large number of testing programs and testing data | |
| eddy current signal playback expansion function, measuring defects amplitude, phase, digital values | |
| Automatically form a test report (including the number of tests, the number of qualified and unqualified number) | |
| Automatically record and display the number of defects and their location | |
| fading display coefficient | 1 ~ 100 |
| Display mode | solid line, fading |
| automatic balance time | 1 ~ 1000 seconds |
| power supply | lithium battery once full use 6-12 hours |
| Operating temperature | -15 ~ 55 ℃ |
| Storage temperature | -20 ~ 60 ℃ |
| Relative humidity | no more than 85% |
| Working voltage |
VC220V/DC24V |
Support and Services:
Technical Support and Service for Portable Eddy Current Flaw Detector
We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.
On-site Support
Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.
Online Support
Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is FET-9HS.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
