Intelligent Digital Portable Eddy Current Flaw Detector Convenient Carry FET-99ST
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Object | Automatic Flaw Detection Of Various Metal Parts, Automobile Parts, Metal Pipes, Rods, Wires, Inner Wall Of Pipes, Drilling Plates, Bearing Rings, Square Billets, Round Billets And Other Mechanical Parts. | Frequency Range | 64 Hz ~ 10 MHz, To Meet The Detection Of Different Metal Parts |
|---|---|---|---|
| Detection Speed | 0-780m/min | Power Source | Lithium Batteries Can Be Used For 6-12 Hours On A Full Charge |
| Highlight | Intelligent Eddy Current Flaw Detector,Digital Eddy Current Flaw Detector,Portable Eddy Current Flaw Detector |
||
Product Description
Product Description:

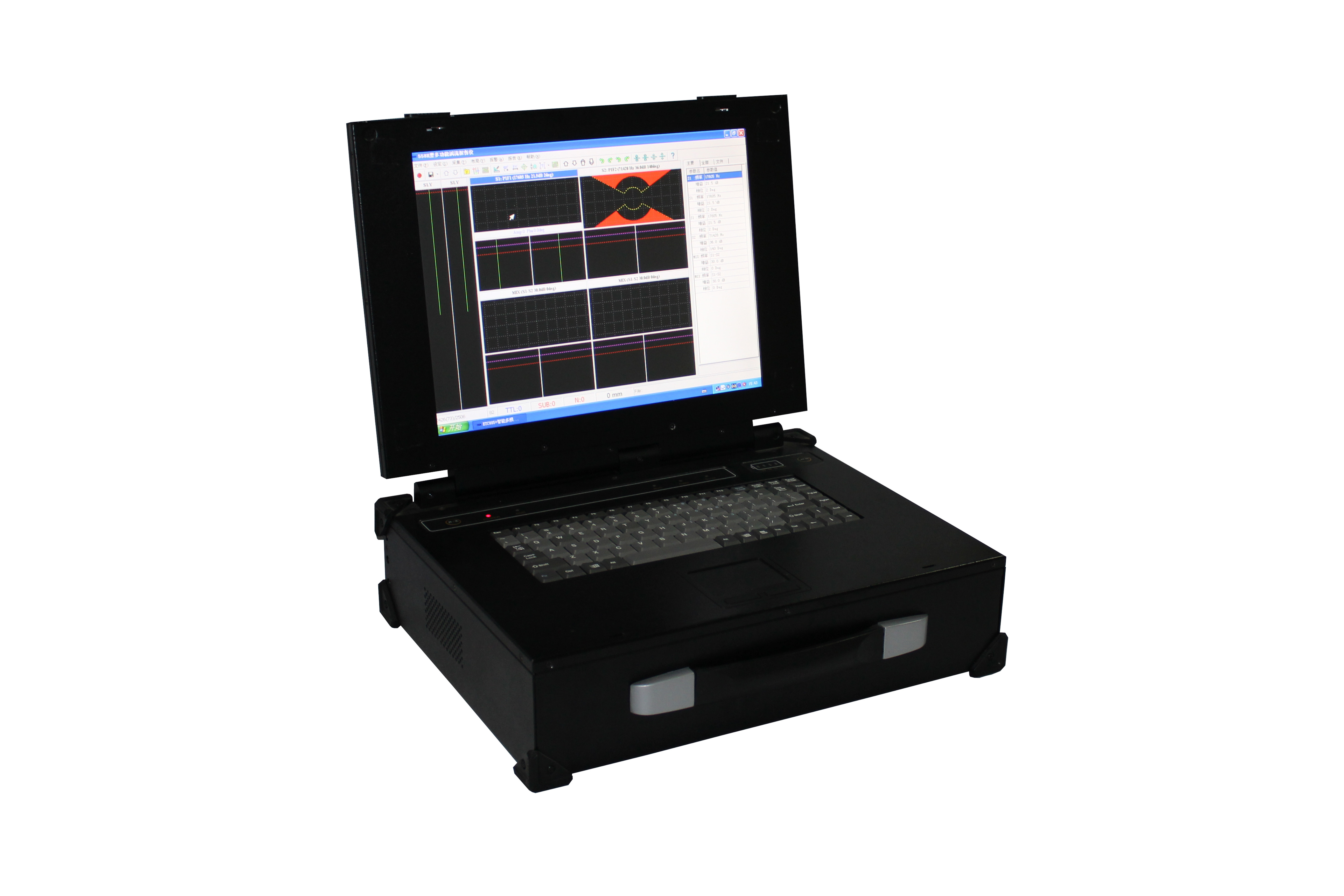

Portable FET-99ST Intelligent Digital Eddy Current Flaw Detector is easy to carry and suitable for on-line, off-line and field flaw detection of all kinds of metal parts, automobile parts, metal tubes, rods and wires, and it can be used for automatic flaw detection of other mechanical parts such as inner wall of tubes, drilling boards, bearing rings, aperture plate blanks, billets and round billets, etc. It has a relatively independent testing channel which can drive the combined probes consisting of absolute and differential coils. With relatively independent test channel, can drive the combined probe composed of absolute and differential coils, the detection channel at the same time for data acquisition, used to detect longitudinal cracks and transverse defects (such as barge mouth) in the production of metal tubes, bars, wires, dark meeting, open cracks and other axial defects have a high sensitivity.
Features:
The signals acquired by the testing channel can be displayed on the screen in real time as impedance plane and time base scanning diagrams. It has the ability to adapt to the testing requirements of different metal materials, wires, etc. And due to the fully digital design, it can establish multiple standard testing procedures or expert systems within the instrument, which is convenient for users to call when changing product specifications, and it is equipped with input and output control interfaces, which is convenient for connecting the testing site with various equipments and synchronous work, constituting a highly automated whole.
Technical Parameters:
| Name | Portable Eddy Current Flaw Detector FET-99ST |
|---|---|
| Detection channel | 1 (can be extended according to the number of channels) |
| frequency range | 64 Hz ~ 10 MHz, to meet the detection of different metal parts |
| gain range | 0 ~ 90.0 dB continuously adjustable, step: 1dB |
| phase rotation | 0 ~ 359 ° continuously adjustable, step: 1 deg |
| Gain ratio | (Y/X) 0.1～10.0 |
| Detection speed | 0-780m/min |
| adjustable probe drive (excitation) level | 1-10 |
| more in the display mode | impedance, time base; |
| digital filtering | low-pass (0Hz ~ 2000Hz) high-pass (0Hz ~ 2000KHz) |
| alarm mode | sound and light alarm output |
| delay hardware output alarm, real-time hardware output alarm | |
| non-equal amplitude, asymmetric phase alarm area settings | |
| fast digital / analog electronic balance | |
| with end, end signal removal function | |
| can be stored in a large number of testing programs and testing data | |
| eddy current signal playback expansion function, measuring defects amplitude, phase, digital values | |
| Automatically form a test report (including the number of tests, the number of qualified and unqualified number) | |
| Automatically record and display the number of defects and their location | |
| fading display coefficient | 1 ~ 100 |
| Display mode | solid line, fading |
| automatic balance time | 1 ~ 1000 seconds |
| power supply | lithium battery once full use 6-12 hours |
| Operating temperature | -15 ~ 55 ℃ |
| Storage temperature | -20 ~ 60 ℃ |
| Relative humidity | no more than 85% |
| Working voltage | DC24V |
Support and Services:
Technical Support and Service for Portable Eddy Current Flaw Detector
We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.
On-site Support
Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.
Online Support
Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is FET-99ST.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
