Analog Circuit High Speed Eddy Current Flaw Detector Digital Circuit

The analog circuit ,high-speed eddy current flaw detector,Digital circuit

Descriptions
      DS-MODEL-405H high-speed eddy current flaw detector is suitable for online high-speed flaw detection of steel, copper, aluminum, aluminum-clad steel, copper-clad aluminum, copper-clad steel and other metal wires and wires, using analog circuit detection to obtain damage signals, digital circuit analysis, record and print, using standard damage adjustment can record the number of large, medium and small three kinds of damage points, which can facilitate the classification treatment of wire and wire.The high-speed eddy current flaw detector has an independent test channel that can drive a detection probe, and the detection channel is used for data acquisition to detect longitudinal cracks and transverse defects in the production of metal wire, and has high sensitivity to dark holes, porosity impurities, open cracks and other axial defects.
     DS-MODEL-405H high-speed eddy current flaw detector has a test frequency range of 1Hz-999 KHz, which can adapt to the detection high-speed requirements of various gold wires, and because the analog and full digital design speed can reach up to 3200 meters per minute, different frequencies control different detection speeds.

The high-speed eddy current flaw detector is equipped with output control interface, which is convenient to connect the test site with various equipment and work simultaneously, forming a highly automated whole.

Specifications

Other descriptions

1,DS-MODEL-405H high-speed eddy current flaw detector has independent detection channel.
2,This high-speed eddy current flaw detector can synchronize alarm output.

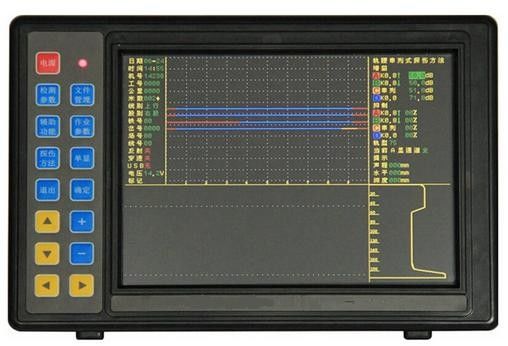

DS-MODEL-405H high-speed eddy current flaw detector operating picture
