Eight Channels Microcomputer Controlled Eddy Current Flaw Detector Axisymmetric Part
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microcomputer-controlled Eddy Current Flaw Detector | Channel | 8 |
|---|---|---|---|
| Advanced | Microcomputer-controlled | Detection Object | Axisymmetric Parts(⌀ 12mm ~ ⌀30mm) |
| Frequency Range | 100Hz－10MHz(adjustable Based On Material) | Gain Range | 0-70dbcontinuously Adjustable, Step: 0.5dB |
| Phase Rotation | 0 ~ 360° Continuously Adjustable, Step: 1 Deg | Detection Speed | <2 Seconds/piece |
| Sorting Speed | Not Less Than 50 Pieces/min | Operating Temperature | Tippically From -10°C To + 55°C |
| Storage Temperature | Tippically From -20℃ To +60℃ | Operating Voltage | AC220±10 V |
| Relative Humidity | Not More Than 85% | Power Dissipation | < 400 W (220 V) |
| Highlight | Eight channels Eddy Current Flaw Detector,Microcomputer controlled Eddy Current Flaw Detector,Axisymmetric part Eddy Current Flaw Detector |
||
Product Description
Eight Channels Microcomputer-controlled Eddy Current Flaw Detector Axisymmetric Part
Descriptions
SWT-618 microcomputer-controlled eddy current flaw detector is an advanced non-destructive testing (NDT) device designed to detect surface and subsurface defects in conductive materials. By utilizing eddy current principles, the machine induces currents in the material and monitors their interaction with imperfections such as cracks, corrosion, or material property changes. The system is equipped with a microcomputer that automates the control, data acquisition, signal processing, and analysis, offering enhanced accuracy and ease of use. The device is widely used in industries like aerospace, automotive, manufacturing, and power generation.
The system consists of a probe, signal generator, signal processor, and a microcomputer that provides real-time feedback and analysis through graphical displays. Operators can adjust test parameters for different materials and defect detection requirements, ensuring flexibility and customization in various inspection scenarios.
SWT-618 microcomputer-controlled eddy current flaw detector is a fully automatic mechatronics inspection machine which combines the most advanced eddy current technology and microcomputer control. SWT-618 microcomputer-controlled eddy current flaw detector has powerful function, simple and intelligent operation, high degree of automation, can effectively detect and distinguish various defects in real time, and has the advantages of beautiful shape, reasonable structure and compact. The software written by WINDOWS operating platform makes the instrument more convenient and intelligent.
Specifications
|
Other descriptions
1,SWT-618 microcomputer-controlled eddy current flaw detector uses a point differential eight-channel array probe.
2,SWT-618 microcomputer-controlled eddy current flaw detector‘s detection surface is the outer diameter and the end face.
3,SWT-618 microcomputer-controlled eddy current flaw detector is automatic feeding, automatic sorting, automatic counting.

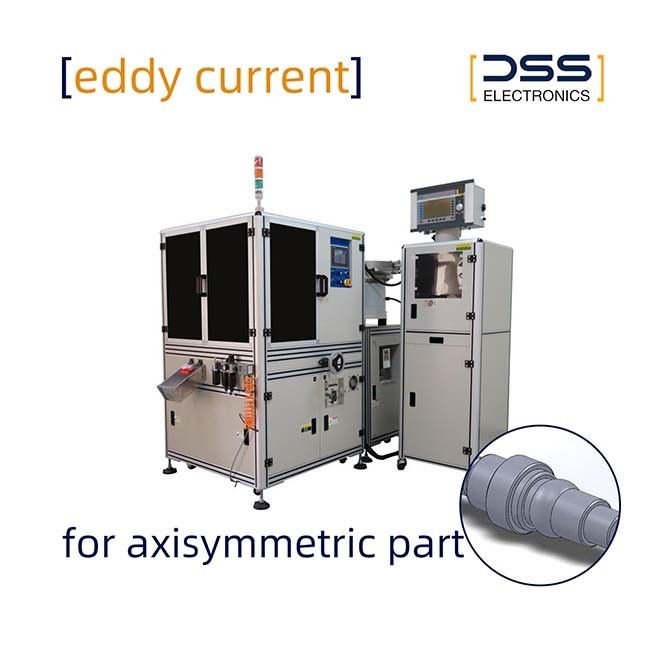

SWT-618 microcomputer-controlled eddy current flaw detector ’operating picture
