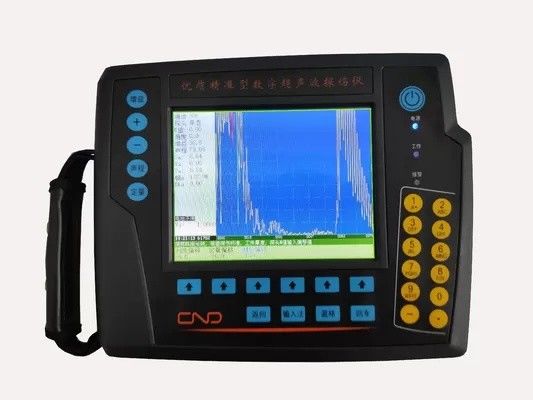

Portable Ultrasonic Flaw Detector Weld Testing HY-30 NDT equipment
| Place of Origin | China |
|---|---|
| Brand Name | Suzhou Desisen (DSS) Electronics |
| Certification | ISO 9001, CE |
| Model Number | HY-30 |
| Minimum Order Quantity | 1 set |
| Price | USD $ 2359-2799 (Wholesale price negotiable) |
| Packaging Details | Wooden case |
| Delivery Time | 20-30 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 sets/ month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gain Range | 110dB | Bandwidth | 0.4~20.0MHz |
|---|---|---|---|
| Detection Range | 0~6000.0mm | Sensitivity Margin | >56dB（Depth 200mm Φ2 Flat Bottom Hole) |
| Resolution | >40dB | Probes By Default | Angle Probe 9*9 2.5MHz, Normal Probe Φ 20mm 2.5MHz |
| Highlight | 8 Hours Ultrasonic Flaw Detector,Colorful Digital Ultrasonic Flaw Detector,Continuous Work Time Ultrasonic Flaw Detector |
||
Product Description
Product Description:
Our ultrasonic flaw detection equipment integrates multiple advanced technologies, boasting significant advantages.
- Equipped with a Chinese touch keyboard, featuring full Chinese operation prompts and graphic display; users can master operation skillfully after simple training.
- Automatically determines instrument and probe performance, with automated calibration; also capable of measuring thickness and material sound velocity.
- Comes with ten independent electronic switching flaw detection channels, enabling customized flaw detection processes for workpieces such as welds and forgings, free from test blocks.
- Automatically generates curves like DAC and AVG, with flexible sampling and compensation correction; gain and sound range change intelligently.
- Presents real-time multi-dimensional data of defective echoes and weld profiles, with complete alarm functions such as wave gates; gate position, width, and height are freely adjustable.
- Equipped with peak memory and envelope functions to assist in accurate wave searching.
- Stores 500 pieces of flaw data; features a new 5.5″ EL flat color screen with strong anti-interference ability and clear display.
- Has low-voltage alarm and automatic shutdown protection; imported nickel-metal hydride batteries support over 6 hours of battery life.
- Adopts a 1.6Kg lightweight design for easy portability.
- Can operate stably in extreme environments ranging from -20℃ to 50℃, providing efficient and reliable protection for flaw detection work.
Application:
1. Bearing outer ring, bearing inner ring, gear blanks, ring metal parts, auto parts
2. Copper pipe, steel pipe, stainless steel pipe, welded pipe, aluminium-plastic pipe, steel wire, double-layer pipe, copper-clad aluminium, copper-clad steel, aluminium wire metal bars and other production lines on-line and off-line non-destructive flaw detection.
3. Nondestructive testing of oil casing, pumping rods, hollow shafts, etc.
4. Detection of condenser tubes, air conditioner tubes, automobile oil tubes, etc.
5. Suitable for nondestructive testing of various metal tubes, bars and wires
Technical Parameters:
| Name | Portable Ultrasonic Flaw Detector HY-30 |
|---|---|
| Dynamic range | >32dB |
| Horizontal linearity | <0.1% |
| Vertical linearity | <3% |
| Noise level | <10% |
| Working mode | single probe, dual crystal probe, penetrating probe |
| Pulse generator | variable pulse generator |
| Damping | 50/100/400 ohm auto-matching |
| Attenuator accuracy | < ±1dB/12dB |
| Digital rejection | (0 ~ 80)%, does not affect linearity and gain |
| Gate | into the wave gate, loss of wave gate; single gate reading, double gate reading |
| Alarm | Beep alarm, LED light alarm |
| Ambient temperature | (-10 ~ 50)℃ |
| Relative humidity | (20~95)%RH |
Support and Services:
1. From the date of completion of installation and commissioning of the equipment, as the beginning of the quality assurance period of the equipment. The supplier will warranty the equipment for one year and implement lifelong maintenance service for the equipment. In the equipment warranty period of the relevant costs borne by the supplier, in the equipment warranty period of the relevant costs of the supply side only charge material costs.
2. The equipment into normal operation after the supply side will still be ready for the demand side to provide all the technical advice
3. In the use of equipment in the process of the demand side can not be resolved by the demand side of the technical problems, the supply side in the receipt of the demand side's request, will be as soon as possible to arrive at the scene.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is HY-30.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
