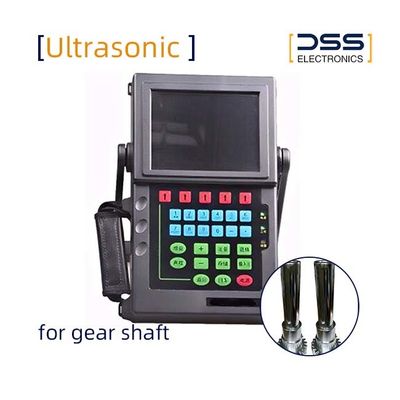

Portable ultrasonic flaw detector Scanning range 0-6000mm Operating frequency 0.4-20 MHz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Scan Range | 0-6000mm | Frequency Range | 0.4-20 MHz |
|---|---|---|---|
| Resolution | >40 DB | Gain Range | Gain Range |
| Sensitivity Margin | >56 DB (200mm Depth, Ø2 FBH*) | Operating Modes | Single Crystal/Dual Crystal/Penetrating Prob |
| Velocity Range | 1,000-9999 M/s | Rectification Mode | Half-wave/RF |
| Horizontal Linearity | ≤0.1% Error Over 1m | Vertical Linearity | <3% |
| Channel Storage | 10 | Data Storage | 500 Sets |
| Operating Temp | -20°C To 50°C | Relative Humidity | (20~95)% RH |
| Charger | 18VDC,220VAC | Operating Voltage | 24V |
| Damping | 50/100/400Ω Auto-matching | Gates | First Echo Gate/Drop Echo Gate |
| Attenuator Accuracy | < ±1dB/12dB | PRF | 15-1000 Hz Adjustable |
| Digital Rejection | 0~80% Linear Rejection | Sampling Rate | ≥140 MHz (real-time Hardware) |
| Noise Level | ≤10% (of Full Scale) | Amplifier Bandwidth | 0.2-20 MHz (-3dB) |
| Continuous Operation Duration | 6h | Dimensions (L×W×H) | 220 × 175 × 9 Mm |
| Weight | 1.3Kg | Storage Temperature | -30℃ ~ 60℃ |
| Highlight | aluminum Portable Flaw Detector,copper Portable Flaw Detector,portable flaw detection gauge |
||
Product Description
Portable ultrasonic flaw detector Scanning range 0-6000mm Operating frequency 0.4-20 MHz
Descriptions
1. The fully Chinese touch keyboard is intuitive and easy to remember. The operation process is fully indicated in Chinese and displayed graphically. With simple training, one can master it proficiently.
2. The instrument and probe performance are automatically measured. The instrument calibration is automated. It can measure thickness and material sound velocity.
3. Ten independent flaw detection channels (electronic switching).
4. According to the actual workpiece (such as weld seams, forgings, castings, pipes, plates, axles, wheels, small diameter tubes, etc.), custom flaw detection processes can be generated. No test blocks need to be carried on-site for flaw detection.
5. DAC, AVG, decibel DAC curves are automatically generated. The sampling points are not restricted. Compensation and correction can be performed. The curves automatically float with gain and expand with sound path.
6. Defect echoes (horizontal, vertical, distance, dB equivalent values) are displayed in real time. Weld seam cross-section display.
7. Detection wave gate, loss wave gate, DAC sound alarm. The gate position, gate width and gate height can be adjusted arbitrarily.
8. Peak memory, envelope function. It is easier to find the highest waveform.
9. 500 flaw detection data can be stored in the instrument.
10. Adopting a new type of low-reflectivity 5.5" EL flat display screen (color TFT display), with strong anti-electromagnetic interference, high contrast and high resolution.
11. Low-voltage sound alarm, automatic shutdown protection.
Specifications
Parameters of the HY350 Portable Ultrasonic Inspection Equipment
| Scan Range | 0-6000mm | Frequency Range | 0.4-20 MHz |
| Resolution | >40 DB | Gain Range | 0 DB ~ 110 DB |
| Sensitivity Margin | >56 DB (200mm Depth, Ø2 FBH*) | Operating Modes | Single Crystal/Dual Crystal/Penetrating Probe |
| Velocity Range | 1,000-9999 M/s | Rectification Mode | Half-wave/RF |
| Horizontal Linearity | ≤0.1% Error Over 1m | Vertical Linearity | <3% |
| Channel Storage | 10 | Data storage | 500 sets |
| Operating Temp | -20°C To 50°C | Relative Humidity | (20~95)% RH |
| Charger | 18VDC,220VAC | Operating Voltage | 24V |
| Damping | 50/100/400Ω auto-matching | Gates | First echo gate/Drop echo gate |
| Attenuator Accuracy | < ±1dB/12dB | PRF | 15-1000 Hz adjustable |
| Digital Rejection | 0~80% linear rejection | Sampling Rate | ≥140 MHz (real-time hardware) |
| Noise Level | ≤10% (of full scale) | Amplifier Bandwidth | 0.2-20 MHz (-3dB) |
| Continuous Operation Duration | 6h | Dimensions (L×W×H) | 220 × 175 × 9 mm |
| Weight | 1.3Kg(With batteries) | Storage Temperature | -30℃ ~ 60℃ |
Other Descriptions
1.Dedicated storage shortcut keys for quick save, recall, playback, and deletion
2.DAC/AVG curve creation without sequence constraints for effortless operation
3.Supports spike pulse & square wave transmission
4.Adjustable pulse amplitude/width for optimal probe performance
5.Selectable impedance matching to meet varying sensitivity/resolution requirements
6. It has a storage capacity of 500 pieces of flaw detection data

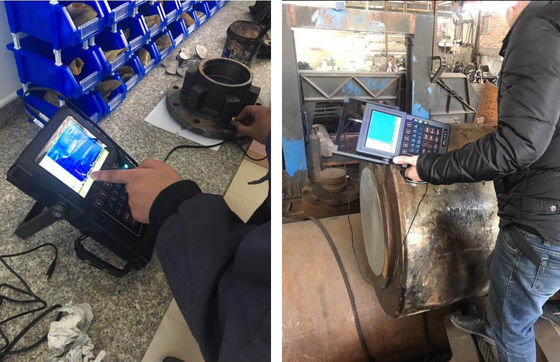

HY350 Portable Ultrasonic Detector Operation Diagram
