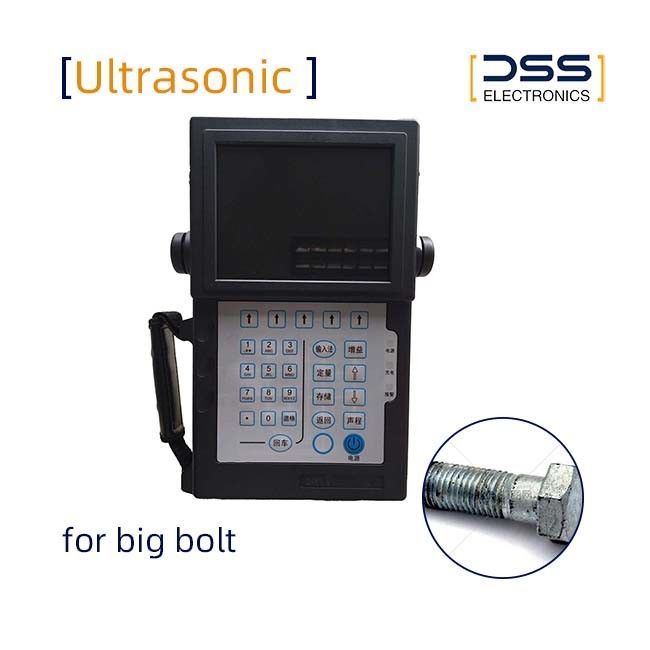

Portable ultrasonic flaw detector Scanning range 0-6000mm Operating frequency 0.2-15 MHz

Name: Portable ultrasonic flaw detector Scanning range 0-6000mm Operating frequency 0.2-15 MHz
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: HY30
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	HY30
MOQ:	1
Price:	discuss personally
Payment Terms:	T/T, D/P
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Scan Range:

0-6000mm

Frequency Range:

0.2-15 MHz

Resolution:

>40 DB

Gain Range:

0 DB ~ 110 DB

Sensitivity Margin:

>56 DB (200mm Depth, Ø2 FBH*)

Operating Modes:

Single Crystal/Dual Crystal/Penetrating Probe

Velocity Range:

1,000-9999 M/s

Rectification Mode:

Half-wave/RF

Horizontal Linearity:

≤0.1% Error Over 1m

Vertical Linearity:

<3%

Channel Storage:

Data Storage:

500 Sets

Operating Temp:

-10°C To 50°C

Relative Humidity:

(20~95)% RH

Charger:

18VDC，220VAC

Operating Voltage:

24V

Damping:

100/150/200/500Ω

Gates:

First Echo Gate/Drop Echo Gate

Attenuator Accuracy:

< ±1dB/12dB

PRF:

10-1000 Hz Adjustable

Digital Rejection:

0~80% Linear Rejection

Sampling Rate:

≥140 MHz (real-time Hardware)

Noise Level:

≤10% (of Full Scale)

Amplifier Bandwidth:

0.2-20 MHz (-3dB)

Continuous Operation Duration:

Dimensions (L×W×H):

220 × 175 × 9 Mm

Weight:

1.6Kg

Storage Temperature:

-30℃ ~ 60℃

Packaging Details:

Wooden box

Supply Ability:

100

Highlight:

50hz Portable Flaw Detector

60hz Portable Flaw Detector

7.4v ut flaw detector

Product Description

Portable ultrasonic flaw detector Scanning range 0-6000mm Operating frequency 0.2-15 MHz

Descriptions

1. Automatic generation of DAC and AVG curves with unrestricted sampling points, along with compensation and correction capabilities.

2. Adjustable pulse emission frequency with a maximum rate of up to 1000 pulses per second.

3. Ten independent flaw detection channels that enable the flexible configuration and storage of multiple flaw detection processes and standards, thereby eliminating the need for carrying test blocks during on-site inspections.

4. Capable of processing echo signals with a maximum range of 6 meters.

5. Real-time dynamic video recording and playback during the detection process, supporting a cumulative maximum recording duration of 50 minutes.

6. A 5.7-inch TFT color display screen that allows users to customize the screen color based on environmental conditions.

7. Support for various flaw detection working modes, including single-probe, dual-probe, and penetration methods.

8. Four detection modes: positive half-wave, negative half-wave, full wave, and radio frequency.

9. Dual-gate functionality for waveform capture.

Specifications

Parameters of the HY30 Portable Ultrasonic Inspection Equipment

Scan Range	0-6000mm	Frequency Range	0.2-15 MHz
Resolution	>40 DB	Gain Range	0 DB ~ 110 DB
Sensitivity Margin	>56 DB (200mm Depth, Ø2 FBH*)	Operating Modes	Single Crystal/Dual Crystal/Penetrating Probe
Velocity Range	1,000-9999 M/s	Rectification Mode	Half-wave/RF
Horizontal Linearity	≤0.1% Error Over 1m	Vertical Linearity	<3%
Channel Storage	10	Data storage	500 sets
Operating Temp	-10°C To 50°C	Relative Humidity	(20~95)% RH
Charger	18VDC,220VAC	Operating Voltage	24V
Damping	100/150/200/500Ω	Gates	First echo gate/Drop echo gate
Attenuator Accuracy	< ±1dB/12dB	PRF	10-1000 Hz adjustable
Digital Rejection	0~80% linear rejection	Sampling Rate	≥140 MHz (real-time hardware)
Noise Level	≤10% (of full scale)	Amplifier Bandwidth	0.2-20 MHz (-3dB)
Continuous Operation Duration	6h	Dimensions (L×W×H)	220 × 175 × 9 mm
Weight	1.6Kg	Storage Temperature	-30℃ ~ 60℃

Other Descriptions

1. Data can be transferred to the computer through the USB 2.0 interface for further analysis.

2. The system is capable of processing echo signals with a maximum range of up to 6 meters.

3. The device supports battery charging while in operation, ensuring uninterrupted performance.

4. During the inspection process, real-time dynamic video recording and playback are supported, with a cumulative recording duration of up to 50 minutes.

5. Equipped with a 5.7-inch TFT color display, users can customize the screen color settings based on environmental conditions.

HY30 Portable Ultrasonic Detector Operation Diagram
