xProduct Details
| Product Name | Bearing Roller Eddy Current Flaw Detector | Automate | Microcomputer Control, Full Automation |
|---|---|---|---|
| Detection Object | Bearing Roller | Advanced | Large-scale Imported Integrated Circuit |
| Frequency Range | 64Hz－ 4MHz | Gain Range | 0-60dbcontinuously Adjustable, Step: 0.5dB |
| Phase Rotation | 0 ~ 360° Continuously Adjustable, Step: 1 Deg | Detection Speed | ≤ 6 M/s |
| Operating Temperature | Tippically From -15°C To + 55°C | Storage Temperature | Tippically From -20℃ To +60℃ |
| Operating Voltage | AC220±10V | Gain Ratio | (Y/X) 0.1 ~ 10.0 |
| Relative Humidity | Not More Than 85% | Detection Capability | Can Detect 0.03mm Deep Crack |
| Equipment Noise | <60db | Power Dissipation | <500W（220V） |
| Highlight | Automatic Eddy Current Flaw Detector,Automatic eddy current flaw detector |
||
Product Description
Automatic bearing roller eddy current flaw detector large-scale integrated circuit
Descriptions
SWT-602 bearing roller Eddy Current flaw detector is a specialized non-destructive testing (NDT) device designed to inspect the quality and integrity of bearing rollers. It utilizes eddy current testing (ECT) technology to detect surface and sub-surface defects, such as cracks, inclusions, and other material irregularities that could affect the performance of the rollers in service.
SWT-602 bearing roller Eddy Current flaw detector operates by inducing eddy currents in the bearing roller through a rapidly alternating magnetic field. As the roller moves past the eddy current probe, these induced currents flow through the material. Any surface or sub-surface defect alters the flow of these currents, producing a detectable signal change. The changes are analyzed by the machine's software, which interprets the data to determine the presence and characteristics of defects.
SWT-602 bearing roller eddy current flaw detector is a fully automatic inspection machine which adopts large-scale imported integrated circuit, combined with the most advanced eddy current technology and microcomputer control. Equipped with a perfectly designed mechanical transmission device, the formation of a complete mechatronics system, is the only complete set of complete system bearing roller automatic flaw detection machine. The software written by WINDOWS operating platform makes the instrument more convenient and intelligent. The performance of the instrument is stable and reliable, which is suitable for the bearing manufacturing industry to detect the cracks formed by the raw material quenching and grinding of the bearing roller. Compared with the magnetic powder flaw detector, it has the advantages of high automation, fast detection speed, convenient inspection process and no human factors. It is the most ideal equipment for the inspection of the bearing roller.
Specifications
|
Other descriptions
1,SWT-602 bearing roller eddy current flaw detector uses two independent ways to detect the workpiece (i.e. one tow two).
2,After inspection, there is no need for demagnetization, cleaning and other auxiliary processes.
3,SWT-602 bearing roller eddy current flaw detector automatically feeds, sorts and counts.

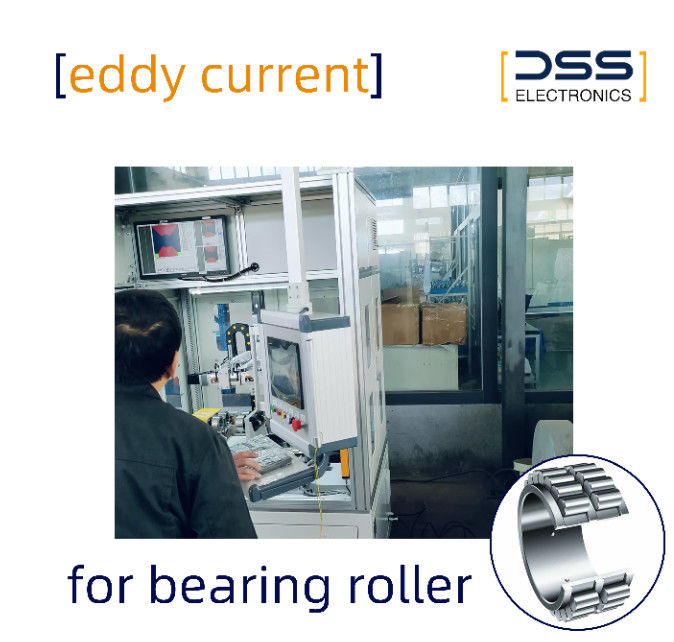

SWT-602 type bearing roller eddy current inspection machine working site diagram
