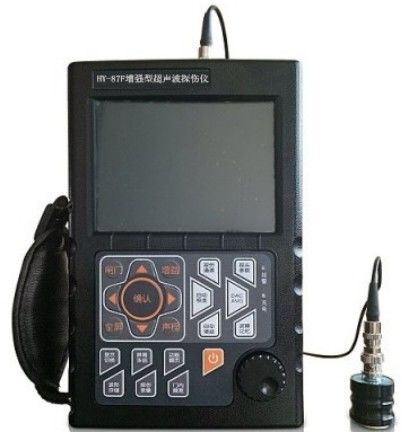

Functional features:
A special advantage
1, full digital, true color display, according to the environment to choose the background color, brightness value can be set freely, leading the trend of domestic application.
2, digital shuttle knob, one-click operation
3, spectrum analysis, high-speed FFT operation, measured probe frequency
4, high-performance security lithium, module plug-in, one machine two power two charge, leading the trend
B transmitting pulse
1, pulse intensity: graded selection, set 200V, 300V, 400V, wide range of applicable probes
2, pulse width: 100-300ns continuous adjustment, matching different frequency probes when the best sensitivity
3, impedance matching: 51Ω, 150Ω, 200Ω, 400Ω, to meet the sensitivity and resolution of different working requirements
4, working mode: single crystal inspection, double crystal inspection
C Scan range
Zero interface incidence ~ 14000mm (steel longitudinal wave), proportional adjustment, continuous adjustment of two modes.
D amplification reception
1, hardware real-time sampling: 150MHz, waveform high fidelity
2, detection mode: full detection, positive, negative detection, RF wave display
3, gate signal: single gate, double gate, full screen search, peak reading in gate.
4, value-added/automatic gain: set 0.1dB, 2dB, 6dB step value, set amplitude height value automatic gain mode
E Alarm
Sound and light alarm and close in gate and curve
F Data storage
1, 50 groups of fast selection of detection parameter channels, pre-adjust all kinds of probe and instrument combination parameters, free to set industry inspection standards, convenient storage, call, reinspection, printing, communication and transmission
2, memory 1000 detection echo signals and data, to achieve storage, reading and browsing, single print, continuous print and communication transmission of computer management.
3, parameter attachment: all Chinese set inspection parameters, input real-time data, random storage, call, print, report communication
G Flaw detection function
1. Wave crest memory: real-time retrieval of the highest defect wave and calibration of the maximum defect
2, φ value calculation: straight probe forgings flaw detection to find the highest wave automatic conversion
3, crack height measurement: find the highest defect wave, real-time diffraction method height measurement
4, dynamic recording: detection of real-time dynamic recording waveform, storage, playback
5, defect location: real level value L, depth value H, acoustic path value S
6. Defect quantification: display SL quantitative value
7, defect qualitative: through the envelope waveform, manual experience judgment
8, surface correction: surface workpiece detection, correction curvature conversion
9, distance compensation: thick workpiece remote inspection real-time compensation, to avoid missing small defects
10, weld cutting form: describe the sound path process in real-time flaw detection to achieve defect location
11, Type B scanning: real-time scanning, describing the defect cross-section
H Real-time clock recording
Real-time inspection date, time tracking records, and storage
I control interface
High-speed USB, RS232 two interfaces provide transmission and printing
J Screen Saver
When standby, the screen can be closed to save power, reduce the number of switching, extend the service life of the instrument)
