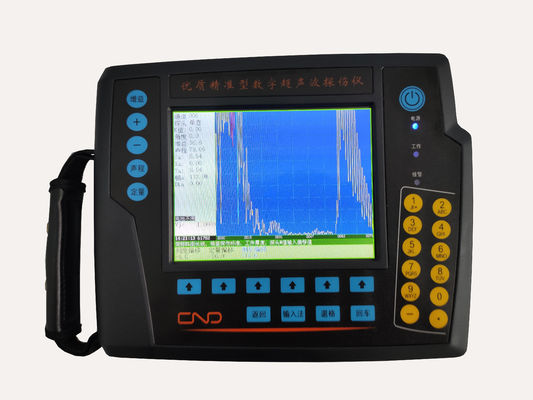

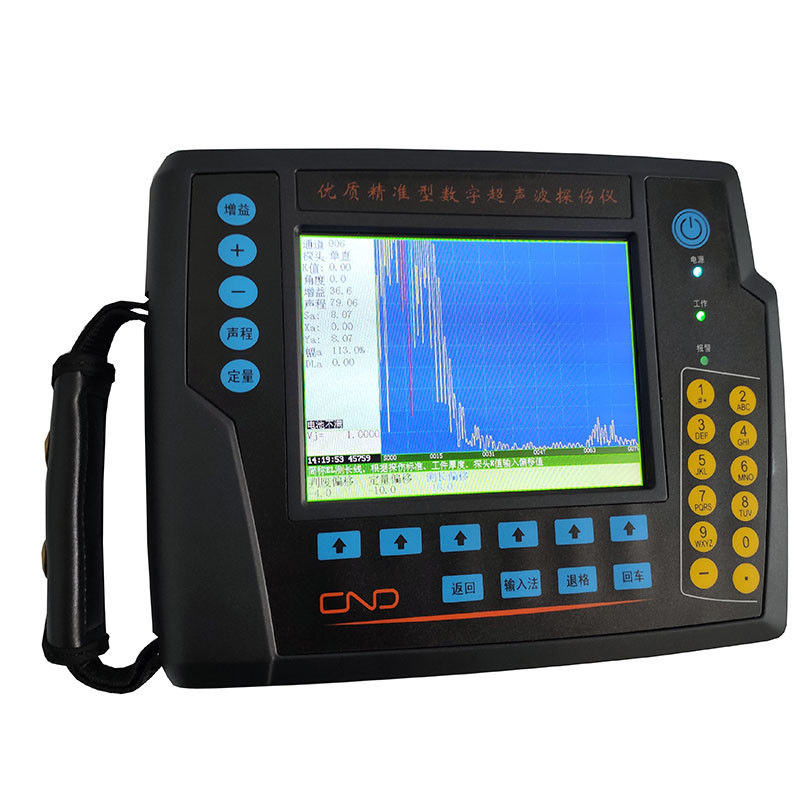

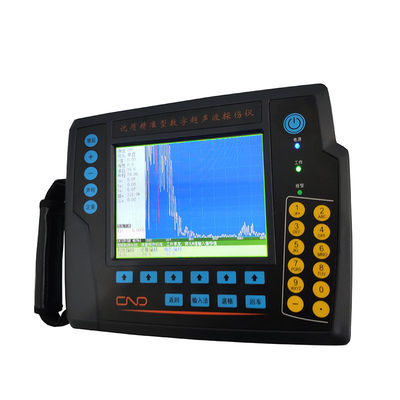

HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector

  • HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector
  • HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector
  • HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector
  • HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector
  • HY-580 Pulse Echo Ultrasonic Flaw Detector Metal Ultrasonic Detector
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number HY-580
Minimum Order Quantity 1
Price negotiation
Delivery Time 2-3 weeks
Payment Terms T/T
Supply Ability 100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Scan Range 0-15,000 Mm Frequency Rang 0.4-20 MHz
Resolution >45 DB Gain Range 0 DB ~ 120 DB
Sensitivity Margin >65 DB (200mm Depth, Ø2 FBH*) Operating Modes Single Crystal/Dual Crystal/Penetrating Probe
Velocity Range 1,000-15,000 M/s Rectification Mode Half-wave/RF
Horizontal Linearity ≤0% Error Over 1m Vertical Linearity <2%
Channel Storage 100 Waveform Recording 5 Min × 20 Segments
Operating Temp -20°C To 50°C Relative Humidity (20~95)% RH
Charger AC 220-240V Operating Voltage 7.4V±0.3V
Continuous Operation Duration 8h Dimensions (L×W×H) 215 × 175 × 33 Mm
Weight 1.5 Kg Storage Temperature -30℃ ~ 60℃
Highlight

DAC pulse echo ultrasonic flaw detector

,

AVG pulse echo ultrasonic flaw detector

,

ULTRASONIC phased array flaw detector
Leave a Message
Product Description

Portable ultrasonic flaw detector Scanning range 0-15000mm Operating frequency 0.2-20 MHz


Descriptions

The HY-580 Digital Ultrason ic Flaw Detector is an advanced, intelligent, and user-friendly portable ultrasonic inspection instrument independently developed by our company. It features a high-resolution 2.7-inch color display that ensures clear visibility even under direct sunlight. The device is equipped with automated parameter settings, including automatic testing of probe zero point, sound velocity, and K value, as well as the automatic generation of DAC and AVG curves. This functionality effectively addresses common issues in conventional portable ultrasonic flaw detection equipment, such as slow parameter adjustments, complex calibration processes, and frequent errors. The instrument utilizes imported high-quality mainboard components, ensuring enhanced durability and stability. A high-shielded lithium battery is integrated to prevent power interference during inspections. Additionally, the device supports password protection for parameter settings, allowing flaw detection personnel to securely store their customized parameters, which are permanently retained and protected from unauthorized modifications. Users also have the flexibility to customize their own flaw detection report formats.
The HY580 digital ultrasonic flaw detector can detect internal defects (such as cracks, inclusions, pores, etc.) and can automatically perform positioning, assessment and diagnosis. It is widely used in various industries including metal materials, metal components, steel pipes, steel rods, bearings, metal pins, forgings, castings, etc.

Specifications

   Parameters of the HY580 Portable Ultrasonic Inspection Equipment

Scan Range 0-15,000 Mm Frequency Range 0.4-20 MHz
Resolution >45 DB Gain Range 0 DB ~ 120 DB
Sensitivity Margin >65 DB (200mm Depth, Ø2 FBH*) Operating Modes Single Crystal/Dual Crystal/Penetrating Probe
Velocity Range 1,000-15,000 M/s Rectification Mode Half-wave/RF
Horizontal Linearity ≤0% Error Over 1m Vertical Linearity <2%
Channel Storage 100 Waveform Recording 5 Min × 20 Segments
Operating Temp -20°C To 50°C Relative Humidity (20~95)% RH
Charger AC 220-240V Operating Voltage 7.4V±0.3V
Damping 50/100/400Ω auto-matching Gates First echo gate/Drop echo gate
Attenuator Accuracy < ±1dB/12dB PRF 15-1000 Hz adjustable
Digital Rejection 0~99% linear rejection Sampling Rate ≥140 MHz (real-time hardware)
Noise Level ≤15% (of full scale) Amplifier Bandwidth 0.2-20 MHz (-3dB)
Continuous Operation Duration 8h Dimensions (L×W×H) 215 × 175 × 33 Mm
Weight 1.5 Kg Storage Temperature -30℃ ~ 60℃
Detect defect types Cracks, inclusions, pores Application fields steel pipes, steel rods, bearings, metal pins, forgings, castings


Other Descriptions

1. It has a large storage capacity of 12,000 pieces of flaw detection data, and the data will not be lost even after power failure.
2. It has an extremely long working time, with an efficient lithium battery that does not have memory effect. The continuous working time is over 8 hours.
3. It supports high-speed data transmission via Ethernet, allowing the flaw detection report to be directly read and printed through a browser. It can also be read and copied from a USB drive.
4. The flaw detection waveforms can be saved for a long time in dynamic recording.


                        HY580 Portable Ultrasonic Detector Operation Diagram
