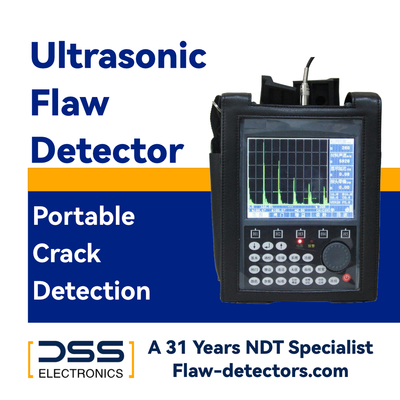

Ultrasonic Flaw Detector Probe Flaw Identifier With 5.7 Inch Color LCD HY-30

Product Description:

Automatic generation of DAC and AVG curves, with no restrictions on sampling points, and capable of compensation and correction; Adjustable transmit pulse frequency, up to 1000 times per second; 10 independent flaw detection channels, allowing free setting and storage of multiple flaw detection processes and standards, eliminating the need to carry test blocks for on-site flaw detection; Capable of processing echo signals with a maximum range of 6 meters; Real-time dynamic recording and review during the detection process, with a cumulative maximum recording duration of 50 minutes; 5.7-inch TFT color screen display, allowing users to set the screen color according to the environment; Various flaw detection modes such as single-probe, dual-probe, and penetration.

Features:

• Automatic generation of DAC and AVG curves, with no restrictions on sampling points, and capable of compensation and correction


• Adjustable transmit pulse frequency, up to 1000 times per second


• 10 independent flaw detection channels, allowing free setting and storage of multiple flaw detection processes and standards, eliminating the need to carry test blocks for on-site flaw detection


• Capable of processing echo signals with a maximum range of 6 meters


• Real-time dynamic recording and review during the detection process, with a cumulative maximum recording duration of 50 minutes


• 5.7-inch TFT color screen display, allowing users to set the screen color according to the environment


• Various flaw detection modes such as single-probe, dual-probe, and penetration


• 4 detection modes in total: positive half-wave, negative half-wave, full-wave, and radio frequency


•  With dual gate waveform capture function


• Automatic measurement and calculation of crack depth


• Real-time retrieval of the highest defect wave and recording of the maximum defect value


• Functions such as peak trajectory description and peak memory for defect echoes to assist in qualitative judgment of defects


• Audible and visual alarms for various conditions such as gate and curve wave entry and wave loss can be set


• Main menu and submenus are displayed in the same window, which is clear at a glance, simple to operate and convenient to find


• Main functions can be quickly accessed through shortcut keys, and the shuttle wheel facilitates quick adjustment of settings


• Multiple industry reports available


• Data can be imported into the computer via USB2.0 interface


• Large-capacity lithium battery can ensure a battery life of more than 8 hours


• The host can charge the battery when working


• It can be operated with one hand using a wristband, or hung on the chest with a strap for operation


• Protection class IP53, can be used in dripping water environment or light rain

Technical Parameters:

Applications:

Desisen HY-30 Ultrasonic Flaw Detector is a multi-functional ultrasonic defect locator that is used to identify defects in a variety of materials. It is certified with ISO9001 and manufactured in China. The minimum order quantity is 1, and the price is to be discussed personally. The product comes with a wooden box for packaging and it is delivered within 5-10 work days. Payment terms can be either T/T or D/P. With a supply ability of 100, this ultrasonic flaw identifier has a 5.7-inch color LCD display, with a gain range of 0~120dB. Its scanning mode includes PA, TOFD, and Phased Array, and it is powered by a rechargeable lithium battery. Finally, it has a sensitivity of 0.1mm.

Support and Services:

We provide technical support and service for our Ultrasonic Flaw Detector. Our team of qualified experts can help you with any technical issue you might face. We can provide you with troubleshooting, repair and maintenance services, as well as system upgrades and hardware installations. We also offer training and technical support for the product.

Our technical support team is available 24/7 to answer any questions you might have. We also provide free online tutorials and user manuals to help you get the most out of the product. In addition, we offer a wide range of spare parts and accessories that can be used to extend the life of your Flaw Detector.

We take pride in providing excellent customer service and technical support. Our experts are always available to help you get the most out of the product. If you have any questions or need any assistance, please don't hesitate to contact us.

FAQ:
