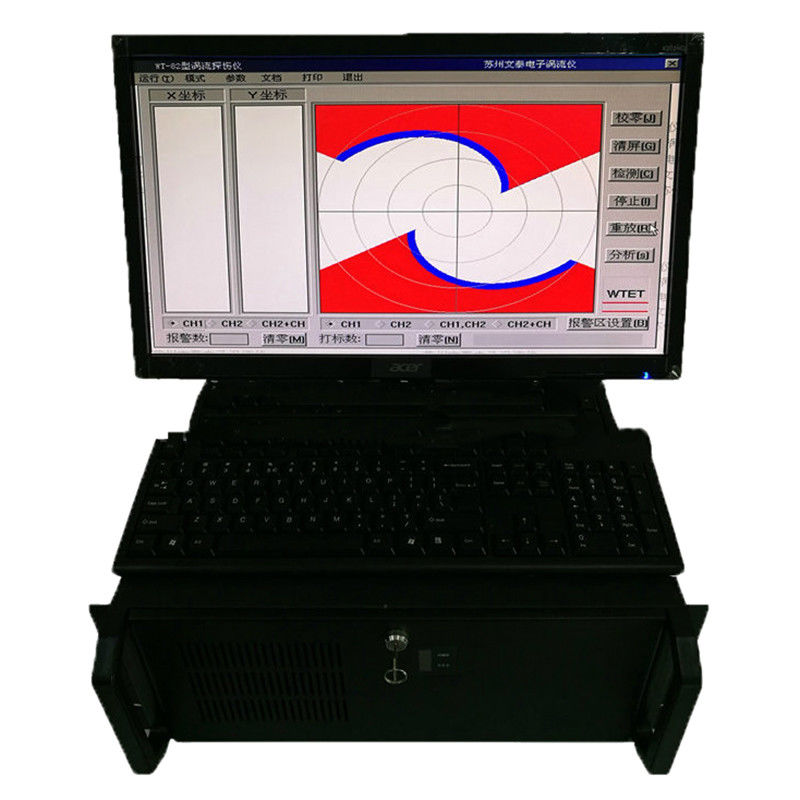

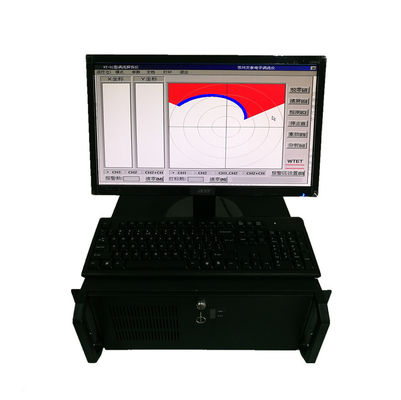

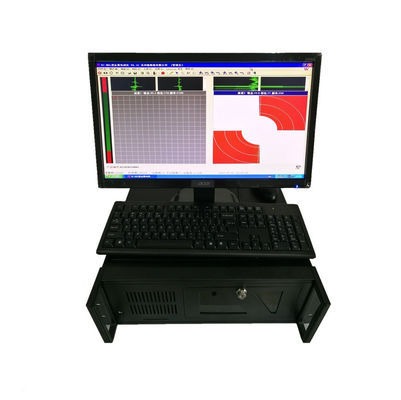

WT-82 intelligent digital eddy current detector
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | intelligent eddy current detector,digital eddy current detector |
||
|---|---|---|---|
Product Description
Product Description:
1. copper pipe, steel pipe, stainless steel pipe, welded pipe, aluminum-plastic pipe, steel wire, double-layer pipe, fiber optic cable on the aluminum wire, aluminum wire metal bar production line online and offline non-destructive flaw detection
2. Nondestructive testing of oil casing, pumping rod, hollow shaft, etc.
3. Condenser tube, air-conditioner tube, automobile fuel line and other testing
4. Suitable for nondestructive testing of various metal pipes, bars and wires.
Features:
Real-time display of the eddy current changes in the detection object of two-dimensional graphics and two band scanning curve. All operations use menu-based human-machine dialog, keyboard control.
Technical Parameters:
| Name | Portable Eddy Current Flaw Detector WT-82 |
|---|---|
| Phase | 0-360degree,steps of 1 degree |
| frequency range |
64 Hz～2 MHz,satisfying detection of multiple kinds of metal material |
| gain | 0-70db,steps of 0.1db |
| Applicable to metal pipe, bar production plant online quality inspection | |
| adapted to a variety of probes: such as external through the type, rotary, etc. | |
| Two independent selectable frequencies | |
| automatic phase, amplitude analysis function | |
| automatic zero calibration system: can set the interval between zero calibration time | |
| three different styles of alarm area settings, can be applied to a variety of modes | |
| Automatic screen clearing/tracking of two impedance display, and can set the interval time or cancel the function | |
| Automatic alarm delay system, you can set any delay time | |
| perfect document processing functions, and can be customized to produce a variety of standard parameters | |
| WINDOWS operating interface is simple and intelligent, easy to operate | |
| fading display coefficient | 1 ~ 100 |
| Display mode | solid line, fading |
| automatic balance time | 1 ~ 1000 seconds |
| power supply | lithium battery once full use 6-12 hours |
| Operating temperature | -15 ~ 55 ℃ |
| Storage temperature | -20 ~ 60 ℃ |
| Relative humidity | no more than 85% |
| Working voltage |
VC220V/DC24V |
Support and Services:
Technical Support and Service for Portable Eddy Current Flaw Detector
We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.
On-site Support
Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.
Online Support
Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is FET-9HS.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
