Cases - SuZhou desisen electronics CO.,Ltd of page 2

2025-05-28

Cylindrical roller crack detector

Cylindrical Roller Crack Detecto Roller Specification Range for Detection: φ3～φ30mm in diameter, 4～30mm in length. Detection Host: FET-99S Intelligent Digital Eddy Current Flaw Detector Detection Probe: Adopts Desson's micro high-sensitivity probe, which can detect cracks as shallow as 0.03mm deep on the roller surface. Detection Speed: Adjustable (2mm-100mm/second). The system automatically adjusts the driving wheel speed and linear speed based on the input workpiece diameter and required linear velocity. Cylindrical Roller Crack Detector: Cylindrical Roller Crack Detector Feeding 1: Cylindrical Roller Crack Detector Feeding 2: Detection by Cylindrical Roller Crack Detector:

2025-05-29

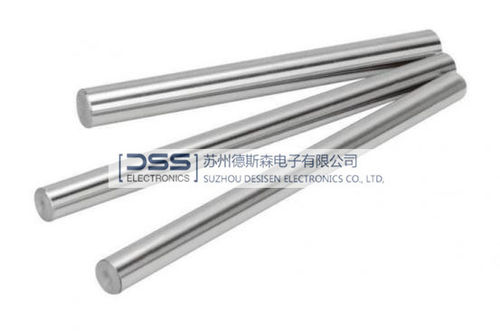

Round Bar and Large Diameter Shaft Crack Detection Syste

Detection Host: 12-channel FET-99S Intelligent Digital Eddy Current Flaw Detector Probe: Array probe (composed of 12 probes) Measured Workpiece Dimensions: Diameter range: 50–600 mm Length: 500–10,000 mm Workpiece Rotation Speed: 30–300 revolutions per minuteFeeding Speed: 12–60 mm per revolution Detection Targets: Longitudinal and circumferential cracks Gas pores (sand holes) with a depth of 0.1 mm or more Probe: On-site Detection of Round Bar and Large Diameter Shaft Surface Crack Detection System:

2025-05-29

Linear Guide Rail Heat Treatment Condition Testing System

Testing Host: ZGF-III Intelligent Non-Destructive Sorting Instrument Guide Rail Specifications: Width: 15–100 mm Length: 6 m Testing Interval: Every 25 mmFunctional Features: Visual database, continuous inkjet marking Linear Guide Rail: Linear Guide Rail Heat Treatment Condition Testing System:

2025-05-29

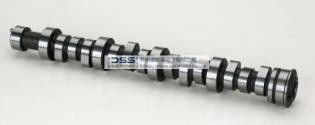

Camshaft Hardness Sorting Instrument

Physical Image of Camshaft Detection Host: ZGF-III Intelligent Non-Destructive Sorting InstrumentSorting Objects: Sorting of camshaft hardness and hardened layer depth Camshaft Hardness Sorting Instrument: Probe Detection of Camshaft Hardness Sorting Instrument:

2025-05-29

Casing Crack Detection System

Detection Host: FET-99S Intelligent Digital Eddy Current Flaw DetectorDetection Object: Casing cracks Casing Dimensions: Diameter range: 6–8 mm Length: 34 mm Detection Speed:4.5 meters per minute, up to 204 pieces per minute Calibrated Crack Specifications for Inner/Outer Walls: Longitudinal: 2.000 mm (Length) × 0.075 mm (Width) × 0.080 mm (Depth) Circumferential: 2.000 mm (Length) × 0.075 mm (Width) × 0.150 mm (Depth) Calibrated Cracks on Flange Surface Longitudinal & Radial: 2.000 mm (Length) × 0.075 mm (Width) × 0.100 mm (Depth) Casing: Casing Crack Detection System: Casing Crack Detection System:

2025-05-29

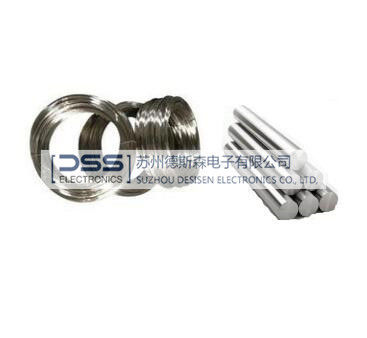

Wire and Bar Crack Detection System

Detection Host: DSSEN FET-99S Two-Channel Intelligent Digital Eddy Current Flaw Detector Detectable Defects: Various defects including longitudinal and circumferential cracks, as well as sand holes (gas pores). Rotating Probe: Utilizes the DSSEN rotating probe system Specifications of Tested Wires and Bars: Diameter: 4–12 mm Length: 500–3000 mm Surface Detection Capability: Polished wire surface: Detects artificial cracks as shallow as 0.1 mm deep Cold-drawn wire surface: Detects artificial cracks as shallow as 0.2 mm deep Detection Speed: At 3,600 RPM (rotations per minute) for the rotating probe: 120 mm/second At 6,000 RPM: 200 mm/second (12 meters/minute) Wire and Bar Crack Detection System: Wire Crack Detection System: Bar Crack Detection System: Conveyor Unit of Wire and Bar Crack Detection System:

2025-05-29

Water Pump Pin Hardness and Material Sorting Instrumen

Sorting Objects: Hardness, material, and hardened layer depth of water pump pins Detection Host: ZGF-III Intelligent Non-Destructive Sorting Instrument Detection Speed:

2025-05-29

Drive Shaft Heat Treatment and Surface Crack Detection Instrument

Detection Hosts: Hardness Detection: NDT-ED-O Intelligent Digital Eddy Current Flaw Detector Crack Detection: FET-99S Intelligent Digital Eddy Current Flaw Detector Detection Speed: 1,125 pieces/hourWorkpiece Dimensions: Diameter: 8.0 mm to 13 mm Length: 26 mm to 63 mm Calibrated Crack Specifications: Length 7.500 mm × Width 0.075 mm × Depth 0.050 mmCrack Directions: Longitudinal and transverse Drive Shaft: Drive Shaft Heat Treatment and Surface Crack Detection Instrument: Detection by Drive Shaft Heat Treatment and Surface Crack Detection Instrument:

2025-05-29

Drive Shaft Fork Heat Treatment and Material Mix-Up Multi-Position Detection System

Detection Object: Material and hardness sorting of drive forks Detection Host: ZGF-III Intelligent Non-Destructive Sorting InstrumentDetection Method: Manual System Workflow:The system includes four detection stations for four types of workpieces. Workpieces are manually placed into the corresponding detection stations, and proximity switches automatically trigger detection. Each workpiece undergoes pre-multi-frequency method testing at 3–4 positions for: Surface hardness Hardened layer depth Correct heat hardness location Material mix-up Drive Shaft Fork: Drive Shaft Fork Heat Treatment and Material Mix-Up Multi-Position Detection System:

2025-05-29

Automatic Surface Crack and Other Defects Detection System for Ball Head Pins

Detection Host: FET Two-Channel 99S Intelligent Digital Eddy Current Flaw Detector System Detection Process: Automatic feeding, automatic detection, automatic sorting Detection Objects: Surface cracks and other surface defects (pitting, chipping) on ball head pins, as well as the presence of holes Detection Speed: 1,440 pieces/hour (dual-station detection) Ball Head Pin: Detection by the Automatic Surface Crack and Other Defects Detection System for Ball Head Pins:

2025-05-29

Hinge and Connecting Rod Hardness and Material Mix-Up Detection System

Detection Host: SET-O Eddy Current Flaw Detector System Detection Process: One main host with two detection lines, respectively for detecting material mix-up and hardness of ball hinges and connecting rods (sorting by material and hardness of connecting rods). The two lines can operate simultaneously. Detection Speed per Single Line: Connecting rods: 1,800 pieces/hour Ball hinges: 900 pieces/hour Ball Hinge: Ball Hinge and Connecting Rod Hardness and Material Mix-Up Detection System:

2025-05-29

Bolt Surface Crack and Other Defects Detection System

Detection Object: Detection of the bolt outer surface, including surface cracks at R corners and other defects. Detection Host: DSSEN FET-99S Two-Channel Intelligent Digital Eddy Current Flaw Detector Detectable Defects: Various defects including longitudinal and circumferential cracks, as well as sand holes (gas pores). System Detection Process: Automatic feeding, automatic detection, automatic sorting. Detection Speed: 7 seconds per piece Partial View of Bolt Surface Crack and Other Defects Detection System: Feeding of Bolt Surface Crack and Other Defects Detection System: Detection by Bolt Surface Crack and Other Defects Detection System:
