Cases - SuZhou desisen electronics CO.,Ltd of page 4

2025-05-29

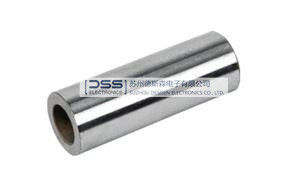

Piston Pin Hardness Sorting Instrument

Sorting Object: Hardness of piston pinsDetection Host: ZGF-III Intelligent Non-Destructive Sorting InstrumentSorting Speed: 3,600 pieces/hourWorkpiece Range: Diameter 18–28 mm, Length 55–100 mm Piston Pin: Piston Pin Hardness Sorting Instrument: Sorting by Piston Pin Hardness Sorting Instrument:

2025-05-29

Piston Bushing Surface Crack and Sand Hole Detection System

Detection Objects: Surface cracks and sand holes on the inner and outer walls of piston bushings, including straight-face bushings, arc-face bushings, and bevel-face bushings. Bushing Dimensions: Outer diameter: 17–95 mm Inner diameter: 15–70 mm Height: 18–55 mm Detection Host: DSSEN FET-99S Multi-Channel Intelligent Digital Eddy Current Flaw Detector System Detection Process Two detection stations for inner and outer walls, with each station calibrated and detected in three zones: bevel face, straight face, and notch face. Angle masking can be applied to notches as needed, masking only the notch itself rather than the entire circumference where the notch is located. Semi-automatic feeding, automatic detection, and automatic sorting. Detection Speed: 8–13 seconds per piece (varying by whether notch masking is applied) Piston Bushing Surface Crack and Sand Hole Detection System:Feeding of Piston Bushing Surface Crack and Sand Hole Detection System:Inner Wall Detection of Piston Bushing Surface Crack and Sand Hole Detection System:

2025-05-29

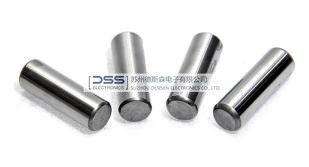

Needle Roller Crack Detector

Detection Object: Needle rollersDetection Host: FET-99S Intelligent Digital Eddy Current Flaw DetectorCalibrated Crack Specifications: 3.000 mm (Length) × 0.070 mm (Width) × 0.050 mm (Depth)Detection Speed: 36,000 pieces/hourRotating Probe Disk Speed: 6,000 revolutions/minuteNumber of Probes on Rotating Probe Disk: Two Needle Roller Crack Detector:Rotating Probe Disk of Needle Roller Crack Detector:

2025-05-29

Steel Ball Material Mix-Up and Hardness Detector

Detection Objects: Material mix-up sorting and hardness detection of steel balls Detection Host: ZGF-III Intelligent Non-Destructive Sorting InstrumentDetection Speed: 40,000 pieces/hourSteel Ball Diameter Range: 1.5 mm to 6 mm Steel Ball Material Mix-Up and Hardness Detector:

2025-05-29

Steel Ball Material Mix-Up and Hardness Sorting Instrument

Detection Objects: Detection of steel ball material mix-up and surface hardness Detection Host: ZGF-III Intelligent Non-Destructive Sorting InstrumentDetection Speed: 2,000–4,000 pieces/hourSteel Ball Diameter Range: 12 mm to 26 mm Sorting by Steel Ball Material Mix-Up and Hardness Sorting Instrument:

2025-05-29

Inner Wall Crack Detection System for Steel Bottle Necks

Detection Host: FET-99S Intelligent Digital Eddy Current Flaw Detector Calibrated Crack Specifications: 10.0 mm (Length) × 0.1 mm (Width) × 0.5 mm (Depth)Detection Cycle:

2025-05-29

Flange Crack Detector

Detection Host: FET-99S Intelligent Digital Eddy Current Flaw Detector Detection Objects: Cracks on the outer diameter and upper end face of flanges Cylindrical Surface Calibrated Crack Specifications: Longitudinal: 3.750 mm (Length) × 0.075 mm (Width) × 0.100 mm (Depth) Circumferential: 3.750 mm (Length) × 0.075 mm (Width) × 0.150 mm (Depth) Upper End Face Crack Specifications (Radial):3.750 mm (Length) × 0.075 mm (Width) × 0.100 mm (Depth) Detection Speed: 10.5 seconds per pieceFlange:Flange Crack Detector:

2025-05-29

Crack and Sand Hole Detection System for Engine Cylinder Liners

Detection Host: FET Two-Channel 99S Intelligent Digital Eddy Current Flaw Detector System Detection Process: Uses one probe to simultaneously detect multiple surface defects, including longitudinal and circumferential cracks, as well as sand holes (gas pores). Detection Areas: Inner diameter, chamfer, end face, outer diameterApplicable Cylinder Liner Specifications: Inner diameter: 68–100 mm Outer diameter: 80–110 mm Height: 120–145 mm Detected Defects: Cracks and other surface defects (sand holes, chipping)Detection Cycle: Approximately 13 seconds per piece Engine Cylinder Liner: Crack and Sand Hole Detection System for Engine Cylinder Liners 1: Crack and Sand Hole Detection System for Engine Cylinder Liners 2: Detection Probe of the Crack and Sand Hole Detection System for Engine Cylinder Liners:

2025-05-29

Heat Treatment Detector for Stamped Parts

Detection Host: FET-99S Pre-Multi-Frequency Eddy Current Detector System Detection Process: Workpieces are fed into the detection system via vibration feeding, pushed into the detection coil, and automatically detected. Qualified and unqualified workpieces are automatically sorted. Detection Cycle:

2025-05-29

Hardness and Material Mix-Up Detection System for Gear Forgings

Detection Objects: Material and hardness of gear forgingsDetection Host: FET Single-Channel NDT-ED-O Eddy Current Detector System Process Description: One main unit with one detection line, which can be expanded to two detection lines in the future. Maximum detected gear forging size: Diameter 125 mm Detection speed of the line: 1,200–2,200 pieces/hour

2025-05-29

Gear End Face Crack Detector

Detection Host: FET-99S Intelligent Digital Eddy Current Flaw DetectorDetection Object: Cracks on the end face of gearsDetection Cycle:

2025-05-29

Brake Shaft Heat Treatment Hardness Sorting System

Detection Host: ZGF-III Intelligent Non-Destructive Sorting Instrument System Detection Process: Manual loading and unloading, automatic identification of unqualified hardnessDetection Objects: Hardness sorting for various types of workpieces, at 3 positions: 2x shaft, 1x topExpandability: Can be expanded into a fully automatic system Brake Shaft:On-Site Sorting by Brake Shaft Heat Treatment Hardness Sorting System:
