LCD Display Flaw Detection Sorting Machine SWT-636

Place of Origin	China
Brand Name	Suzhou Desisen (DSS) Electronics
Certification	ISO 9001, CE
Model Number	SWT-636
Minimum Order Quantity	1 set
Price	negotiation
Delivery Time	2-3 weeks
Payment Terms	T/T
Supply Ability	100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	AP-NDT-FD	Working Temperature	-15~55℃
Saving Temperature	-20~60℃	Relative Humidity	Not Exceed 85%
Working Voltage	AC220V±10V	Detection Range	0 - 5000 Mm
Resolution	0.1 Mm	Material	Metal
Frequency Range	100HZ-2MHZ Changeable	Display	LCD
Highlight	flaw detection sorting machine , hardness sorting machine

Leave a Message

Product Description

Product Description:

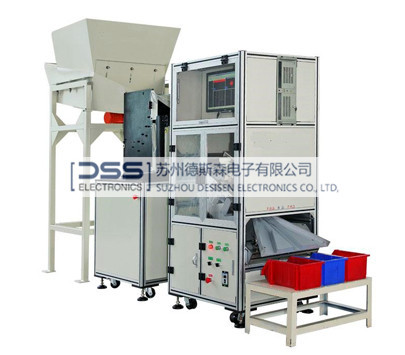

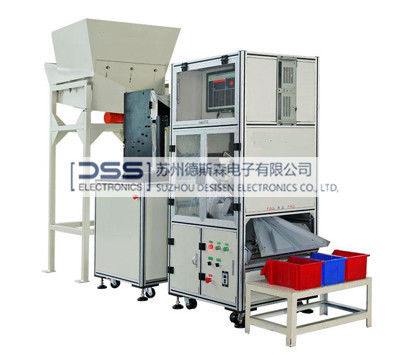

SWT-636 type flaw detection sorting machine is a full automatic eddy current detecting device what is aimed at doing flaw sorting on every kind of small workpiece,it is specially suitable for 100%detection on standard component.

Features:

1. Adopting multifrequency double channels to do nondestructive detection on workpiece

2. Detecting sensitivity 2HRC

3. Detecting speed is lower than 1.5seconds per piece

4. Automatic supply ,sorting and count

5. There is no damage on accessories after sorting

6. Count up the number of detected workpiece, qualified products and the percent of pass

Technical Parameters:

Name	Portable Eddy Current Flaw Detector SWT-636
Suitable target	small thin workpiece
Detecting frequency range	100HZ-2MHZ changeable
Specification dimension	according to customers’ requirements
Detecting speed	1 second per piece (double channels)
Gain	0--70db changeable
Phase position	0_360degree can be change freely ,frequency step is 1 °
	Adopting multifrequency and double channels to detect on workpiece
	Detecting hardness of ±1HRC
	Automatic supply ,sorting ,count
	Sample rate 4×25000times per second
	Count on the number of detected workpiece ,qualified products , percent of pass

Support and Services:

Technical Support and Service for SWT-636 Automatic Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.

About Us

Suzhou Desisen Electronics combines 31 years of NDT expertise with rapid 48-hour solution development, delivering customized automated flaw detection systems that have proven successful across 3,000+ installations in 70+ countries. We provide complete end-to-end NDT automation—from initial sample analysis to fully operational systems—specifically engineered for tubes, rods, plates, automotive parts, and metal components across critical industries including aerospace, automotive, and manufacturing.Free

Auto-NDT Engineering Consulting Service

Upon receiving your parts and defect parameters, we develop tailored online/offline automation solutions within your budget, delivering custom NDT systems in 48 hours.

LCD Display Flaw Detection Sorting Machine SWT-636 0

Q&A

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is SWT-636 Automatic.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
