Cylinder liner flaw detector semi-automatic eddy current testing NDT

Place of Origin	China
Brand Name	Suzhou Desisen (DSS) Electronics
Certification	ISO 9001, CE
Model Number	DNT-ED-O
Minimum Order Quantity	1
Price	0

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Ratio Of Gains

(Y/X)0.1～10.0

Frequency Scope

64 Hz～2 MHz,satisfying Detection Of Multiple Kinds Of Metal Material

The Scope Of Gains

0～48.0 DB ,continuously Adjust ,stepping Is 0.5db

Phase Position Rotation

0～359°,continuously Adjust,stepping Is 1 Degree

Highlight

gear eddy current flaw detector

9HS eddy current flaw detector

Leave a Message

Product Description

Product Description:

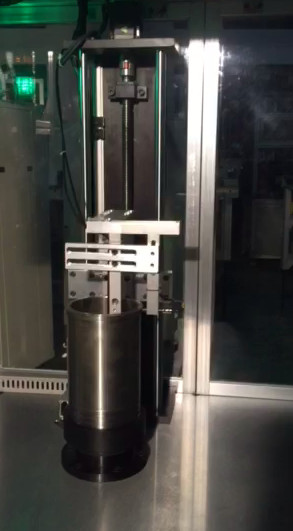

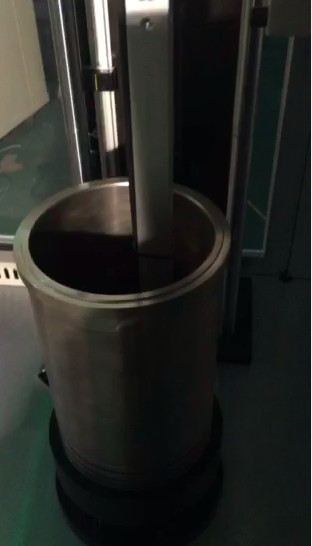

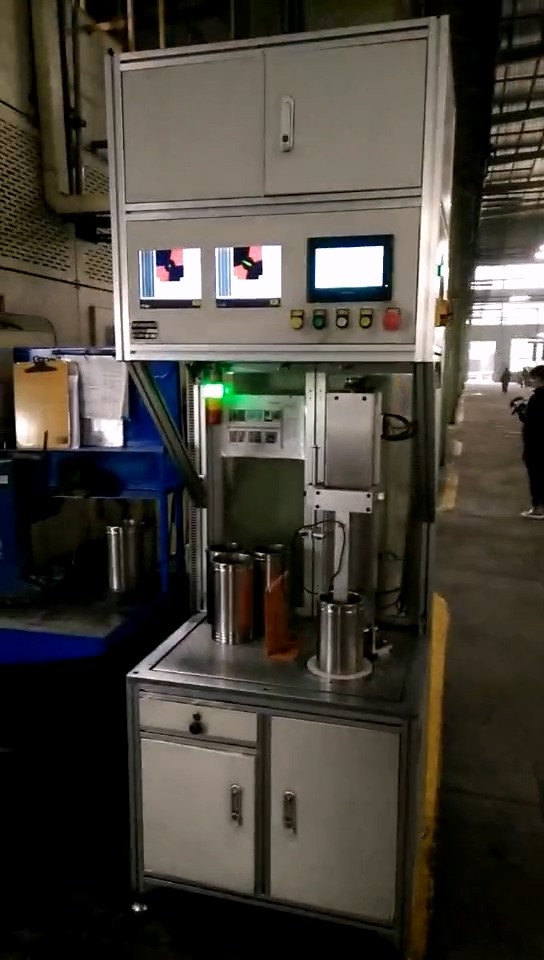

The DNT-ED-O semi-automatic cylinder liner inspection system is equipped with the most advanced digital eddy current testing instrument currently available in the field of non-destructive testing. By integrating PLC technology, analog electronic technology, digital electronic technology, and sensor technology, it enables semi-automatic detection of defects such as cracks, sand holes, and porosity in cylinder liners.The operating console of the DNT-ED-O semi-automatic cylinder liner inspection system features a built-in U-shaped groove that perfectly collects oil residue remaining on the workpiece surface, preventing oil contamination from damaging mechanical components and extending equipment service life.

Features:

Touch screen with statistical functions - statistical data can be downloaded for product quality traceability
Probe travel path can be freely programmed
Industrial-grade testing main unit capable of long-term, stable, and reliable operation

Technical Parameters:

Name	DNT-ED-O semi-auto eddy current cylinder liner flaw detector
Frequency Range	64 Hz to 2 MHz
Gain	0 to 48dB, with 0.5dB increments
Phase Rotation	0° to 360° in 1° steps
Gain Ratio (Y/X)	0.1 to 10
Synchronous Alarm	Internal and external clock-controlled synchronous alarm output
Signal Suppression	High-precision head and tail signal suppression function
Alarm Output	High-precision real-time and delayed alarm output
Alarm Zones	Non-uniform phase/amplitude alarm zones
Parameter Control	Fully digital computer-controlled parameter adjustment
Interface	Menu-driven human-machine interface (Chinese and English versions)
Balancing	Fast digital/analog electronic balancing
Memory Function	Memory trace delay blanking function
Storage & Playback	Hard disk and floppy disk storage and playback of detection signals
Data Storage	Mass storage of various detection data, charts, and other inspection results
Digital Filtering	Wideband digital filtering to suppress the effect of speed variations on signal amplitude, making it highly suitable for manual or automated testing
Signal Analysis	Automatic signal amplitude and phase measurement with slow-speed (adjustable) playback and extended analysis of eddy current detection signals

Support and Services:

Our Commitment to Quality & Your Peace of Mind

At Suzhou Desisen Electronics, we take immense pride in the superior quality and craftsmanship of our instruments and accessories. We guarantee that every product is free from defects in materials and workmanship. To underscore this commitment, we are pleased to provide the following comprehensive warranty and customer support plan, effective from the date of purchase.

One-Year Limited Warranty

Your new instrument is protected by our one-year limited warranty, covering all parts and maintenance.

Warranty Service: Should your instrument experience a fault due to a quality issue during the warranty period under normal use, please contact our service team. We promise to have a certified technician on-site to address the issue within 48 hours of receiving your call.

Lifetime Product Support

Our support for you extends far beyond the initial warranty period.

Post-Warranty Maintenance: If your instrument requires maintenance after the warranty has expired, we will provide the necessary service and only charge for the cost of parts and associated labor.

Warranty Exclusions

This limited warranty does not cover the following:

Damage resulting from improper use, unauthorized disassembly, or modifications.
Damage caused by external events beyond our control, such as fires, earthquakes, floods, or abnormal electrical voltage.
Damage resulting from user negligence or other preventable external causes.
Consumable Components: Please be aware that consumable parts, such as probes, are subject to normal wear and require periodic replacement. The cost for replacing these items is the responsibility of the customer.

Your Proof of Warranty

Warranty Card: Your warranty card is the official proof required to receive complimentary warranty services. Please take a moment to fill it out completely and store it in a safe place, as lost cards unfortunately cannot be reissued.

Our Premier Customer Care Program

We believe that exceptional products deserve exceptional support. Our goal is to ensure you have a seamless experience.

Dedicated Support Team: You have full access to our professional after-sales service team.
One-on-One Technical Assistance: We provide personalized, one-on-one technical support to resolve any questions you may have.
Complimentary Training: To help you master your new instrument, we offer free, comprehensive training.
Proactive Follow-Up: We will contact you within seven days of your purchase to ensure your instrument is performing perfectly.
Customer Check-In: To maintain our strong partnership and your continued satisfaction, we will arrange a follow-up visit within 30 days.

Machine Customization

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is FET-9HS.
