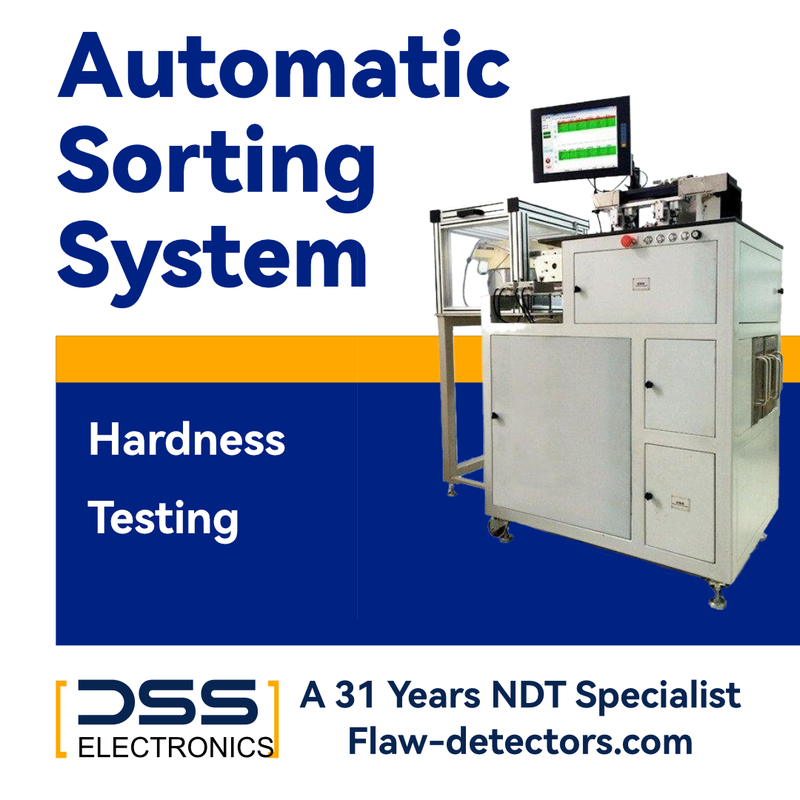

Hardness Testing Automatic Sorting System EHS-1X

Product Description:

This system can be used for
1. Cast iron, ductile iron, wear-resistant cast iron and forged cast iron (commonly known as steel) pieces of hardness sorting, all kinds of cast iron normalised, annealed, quenched or tempered hardness testing, can be used for automatic sorting of this system.

2. Any steel normalised and annealed pieces of hardness testing and sorting, such as a variety of rolling wire parts, gears, etc.

3. Plumbing fittings hardness sorting.

This equipment includes hardness sorting instrument, detection coil, mechanical transmission and automatic sorting, the instrument adopts inter-vehicle line, imported components installation, with stable and reliable performance, high sensitivity characteristics, the instrument panel set excitation power adjustment, sensitivity adjustment, phase adjustment, impedance balance adjustment, qualified and unqualified counting and other functions. Adopt Wenwu fluorescence oscilloscope display.There are two testing coils, one standard coil is used for placing qualified products, and the other measuring coil is used for testing the hardness of the workpiece. The mechanical transmission part is composed of all colourful non-conductive materials to avoid the influence of other magnetic materials on the testing coil. The automatic sorting part adopts pneumatic method to push the flap action.

Features:

1. Instrument excitation frequency, phase adjustable, can adapt to all kinds of magnetic conductivity metal parts hardness sorting

2. Impedance analysis, can suppress the influence of other physical factors on the hardness measurement.

3. Adopt two detection coils, improve the stability of the system.

4. Automatic counting, can directly get the total number of qualified products and unqualified products.

Technical Parameters:

Support and Services:

We provide technical support and service for Electrical Conductivity Meter. Our team of customer service professionals are available to help you with any technical questions or troubleshooting needs you may have.

We offer a wide range of services to help you get the most out of your Electrical Conductivity Meter. Our services include:

• Installation and configuration
• Software and firmware updates
• Troubleshooting and problem solving
• Maintenance and repair
• Calibration and accuracy testing

In addition, we provide a variety of support options, including phone support, online chat, and email support. If you need help with your Electrical Conductivity Meter, please contact us for assistance.

Q&A

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

A2: The model number of this product is EHS-1X Automatic.

A3: This product is made in China.

A4: Yes, this product has ISO9001 certification.
