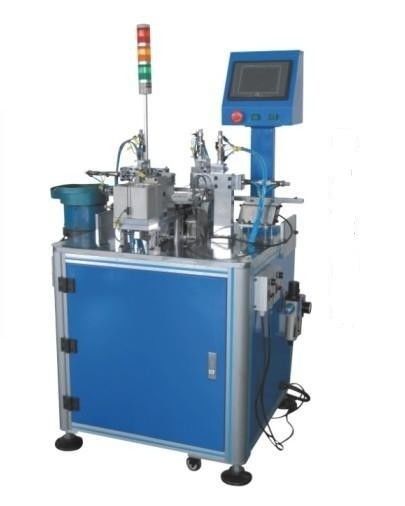

ODM End Eddy Current Inspection Machine Automatic

end eddy current inspection machine  external surface of the end of the axisymmetric metal component is searched for cracks

Introduction to the instrument:
SWT-610 end end eddy current inspection machine is a kind of automatic eddy current inspection equipment for finding cracks on the outer surface of the end of axisymmetric metal parts. It is suitable for 100% inspection of cylindrical metal parts.
Functional features:
The stepper motor drives the chain to rotate and step, and passes the probe in turn for detection. After the completion of the test, when the material is turned over, if it is qualified, the test sample is added, if it is not qualified, it is removed by the sorting cylinder; The electrical control module realizes the logic control of the whole process through photoelectric switch and control box; The detection host and probe realize the output of the detection signal through two modes of pre-multi-frequency and plane display precision measurement.
Instrument parameters:
1. Use point differential probe.
2. Can detect 0.05MM deep crack.
3. The detection surface is two ends.
4. The detection speed is about 1.5 seconds/piece.
5. Device noise <60db. Power consumption <500W (220V).
6. Automatic feeding, automatic sorting, automatic counting.
7. There is no damage to the parts after eddy current inspection.
8. No demagnetization, cleaning and other auxiliary processes are required after inspection.
