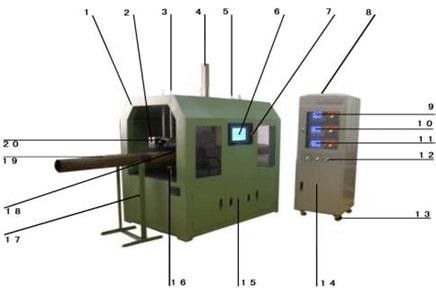

Integrated Eddy Current Testing Machine Metal Conductive Steel Pipe Material Mixed And Automatically Sorted Online Without Loss
Place of Origin | china |
---|---|
Brand Name | Suzhou Desisen (DSS) Electronics |
Certification | ISO 9001, CE |
Model Number | SWT-630 |
Minimum Order Quantity | 1 |
Price | personnally dicuss |
Packaging Details | Mechanical part: length × width × height =1500×1000×2350mm Main electric control cabinet: length × width × height =570×560×1960mm |
Delivery Time | 5-8days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 100 |

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xContour Feature | Gantry Detection Body | Sorting Speed | <20S/ Piece, Excluding Loading And Unloading Time |
---|---|---|---|
Sorting Accuracy | It Can Accurately Distinguish Different Steel Materials To Ensure That All Qualified Materials Are Qualified After Sorting | Outer Diameter Of The Steel Pipe To Be Measured | φ100~426mm |
Highlight | Integrated Eddy Current Testing Machine,Online Eddy Current Testing Machine |
Functional features:
1, the equipment can be non-destructive online automatic sorting of metal conductive steel pipe material after mixing.
2, the equipment can use single frequency and three frequency two modes for detection.
3, the steel pipe that is tested as qualified material will be transferred to the lower machine by the transfer roller, and the steel pipe with unqualified material will be sprayed with color markers or removed by the sorting mechanism of the lower machine.
4, the material of qualified steel pipe and unqualified steel pipe count respectively.
5, the main control instrument of the sorting machine has a column chart to dynamically display the material status of the measured steel pipe. The amplitude of the bar chart reflects the change of the composition of the steel pipe material under test, which is intuitive.
6, in the sorting of the main control instrument has the upper limit and lower limit of the material range of the setting function key, convenient for the operator to use, when the material composition of the measured steel pipe exceeds the upper limit of the set material range or is lower than the set material range of the limit, there will be a corresponding light indication on the instrument, while the qualified or unqualified signal can be transmitted to the sorting mechanism and marking mechanism of the sorting machine.
7. On the panel of the electrical control touch display screen of the sorting machine, there is a result light of the steel pipe material under test. When the green light is on, it means that it is qualified; when the red light is on, it means that the material variety is unqualified (exceeding the upper limit or lower than the lower limit).
8. On the panel of the electrical control touch display screen of the sorting machine, there are functions such as "data setting", "data query", "historical data" statistics, and "detection mode" selection.
9, the sorting machine master control instrument can store the upper limit and lower limit magnetic flux value of 12 different sizes of steel pipes, and in the upper right corner of the instrument with No. 1, 2, 3, 4, 5,... No. 12 represents different specifications and sizes of the measured steel pipe, which is convenient for users to call directly.
10, when the test result is unqualified steel pipe, the equipment has sound and light alarm function. At the same time, the surface of the tested steel pipe is sprayed with red paint.
