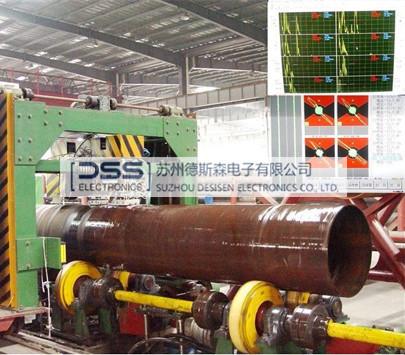

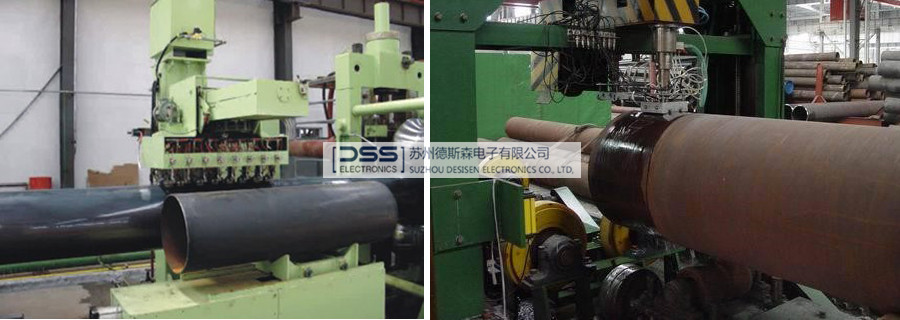

ERW Resistance Weld Pipe Automatic Testing System Offline Online

  • ERW Resistance Weld Pipe Automatic Testing System Offline Online
  • ERW Resistance Weld Pipe Automatic Testing System Offline Online
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number ERW
Minimum Order Quantity 1 set
Price negotiation
Delivery Time 2-3 weeeks
Payment Terms T/T
Supply Ability 100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature -15~55℃ Saving Temperature -20~60℃
Relative Humidity Not Exceed 85% Working Voltage AC380±15V
Highlight

Detection System For Welded Pipe

,

Detection System For ERW Pipe

,

Online ERW Pipe Inspection System
Leave a Message
Product Description

Product Description:

The testing system can be equipped with high precision lasting time marking model, measuring instrument ,marking machine and all direction changeable probe

The system is equipped with internal and external clock synchronization control alarm output function and high precision marking ,the width can be controllable

It is used to gas and oil tubes,and so on high frequency resistance weld pipe online or offline automatic testing.

Range of application :Φ219-610mm

Features:

1. It can according to standard and requirement to test welding line  longitudinal and horizontal and hierarchical defection and testing the thickness of welding line

2. Testing result will be showed by a way of direct graph and numerical value,so they can be understood easily

3. great structure pneumatic lifting ,humanization design

4. Picture-tracking and burr tracking system



Technical Parameters:

Name Portable Eddy Current Flaw Detector ERW
The number of channels 12 (customized)
Gain amount 80dB,stepping is 0.1dB
working method single probe launches,receive or double probes launch ,receive respectively
surplus sensitivity ≥50dB
resolution ≥26dB
Dynamic range ≥30dB
Scanned range 0～5000mm
Frequency range 0.5～15MHz
Repetition frequency 500Hz～10KHz,changeable
Vertical linearity ≤5%
Horizontal linearity ≤1%
Strobe setting every channel sets three strobes,alarm strobe,tracking strobe,and lock strobe
Lasting time alarm delayed time 0.5～10S ,stepping is 0.1 s
Defect detection conditions and waveform preservation the number is unlimited,can be used for using.Waveform playback,waveform communication


Support and Services:

Technical Support and Service for ERW Automatic Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is ERW Automatic.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
