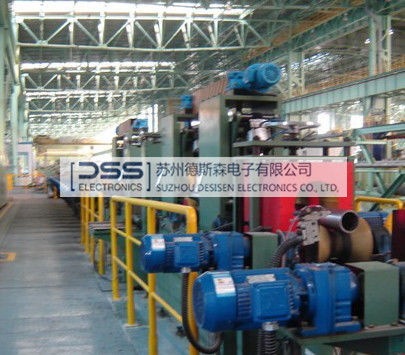

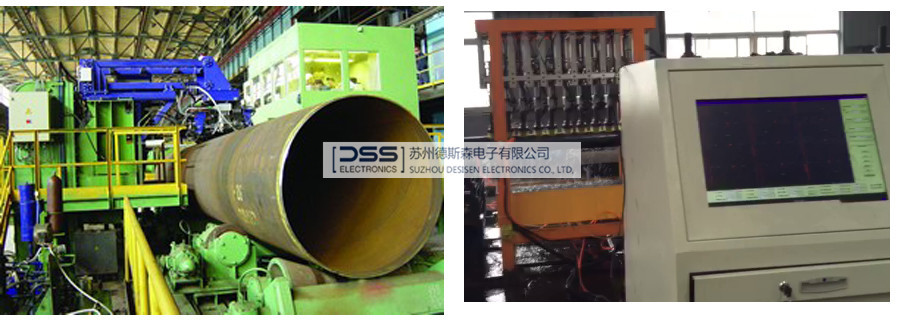

Seamless Steel Tube Pipe Automatic Testing System

  • Seamless Steel Tube Pipe Automatic Testing System
  • Seamless Steel Tube Pipe Automatic Testing System
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number CUT-HY Series
Minimum Order Quantity 1 sset
Price negotiation
Delivery Time 2-3 weeks
Payment Terms T/T
Supply Ability 100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature -15~55℃ Saving Temperature -20~60℃
Relative Humidity Not Exceed 85% Working Voltage AC380±15V
Highlight

Steel Pipe Testing Equipment

,

Seamless Tube Ultrasonic Testing Equipment

,

Seamless Pipe Ultrasonic Testing Equipment
Leave a Message
Product Description

Product Description:

Applying to electricity ,nuke industry, oil gas ,metallurgy,car,aerospace,boiler,liquid gas transfer and other seamless steel tube nondestructive detection.

Suitable rang and testing ways

φ20-φ90mm:Rotation ways

φ90-φ273mm:water bag array mode

φ273-φ1220 mm:Normal array ways

Features:

1. It adopts rotation probe or water bag array testing ways,according to different specifications of workpiece to choose the most suitable testing ways.

2.  It can realize longitudinal and horizontal and hierarchy and other flaw detection on all tube,simultaneously equip with thickness measurement.

3.  It can realize ultrasonic vortex integration testing ,so it makes sure the quality of testing

4. It will alarm automatically and mark when meet flaws

Technical Parameters:

Name Portable Eddy Current Flaw Detector CUT-HY Series
The number of channels 24  customized
Gain amount 80dB,stepping is 0.1dB
working method single probe launches,receive or double probes launch ,receive respectively
surplus sensitivity ≥90dB
resolution ≥26dB
Dynamic range ≥30dB
Scanned range 0～5000mm
Frequency range 0.5～15MHz
Repetition frequency 500Hz～10KHz,changeable
Vertical linearity ≤5%
Horizontal linearity ≤1%
Strobe setting every channel sets three strobes,alarm strobe,tracking strobe,and lock strobe
Lasting time alarm delayed time 0.5～10S ,stepping is 0.1 s
Defect detection conditions and waveform preservation the number is unlimited,it can be used for waveform playback ,waveform communication,waveform printing


Support and Services:

Technical Support and Service for CUT-HY Series Automatic Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is CUT-HY Series.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
