Hardness Sorting Machine Hardness Separation Various Small Thin Workpieces Carried Out

  • Hardness Sorting Machine Hardness Separation Various Small Thin Workpieces Carried Out
  • Hardness Sorting Machine Hardness Separation Various Small Thin Workpieces Carried Out
  • Hardness Sorting Machine Hardness Separation Various Small Thin Workpieces Carried Out
  • Hardness Sorting Machine Hardness Separation Various Small Thin Workpieces Carried Out
Place of Origin china
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number SWT-1.5
Minimum Order Quantity 1
Price personnally dicuss
Packaging Details Control cabinet 600×650×1600MM(customizable), Host: 900×650×1000MM (customizable)
Delivery Time 7-10days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Object Small Thin Workpieces (bearing Rings, Etc) Detection Frequency Range 64 HZ-5 MHZ Adjustable
Detection Speed 1 SEC/piece (dual Channel) Simple And Reliable Equipment No Magnetization Demagnetization Coil Required
Easy To Operate There Is No Need To Change The Probe When Inspecting Different Metal Parts
Highlight

Various Small Thin Workpieces Sorting Machine

,

Small Thin Workpieces Hardness Sorting Machine
Leave a Message
Product Description

Product Description:

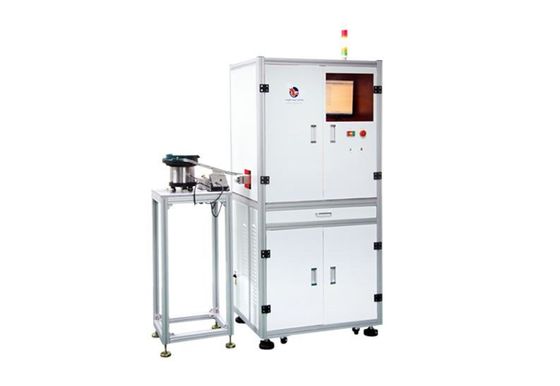

SWT-1.5 hardness sorting machine is a fully automatic eddy current testing equipment for hardness sorting of various small thin workpieces. The flaw detector used in the sorting machine is compatible with probes of various shapes and sizes, thus bringing new opportunities for automatic flaw detection of shaped workpieces.

Features:

    1. The probe does not touch the workpiece, increasing the durability of the probe.
    2. Continuous detection, improve detection efficiency.
    3. No need to change the probe when detecting different metal parts, easy to operate.
    4. With automatic balance, improve the reliability of the instrument on-line detection.
    5. Waveform display synchronized tracking, so that the defect signal stability
    6. No need to demagnetize the demagnetization coil, simple and reliable equipment.

Technical Parameters:

Name Portable Eddy Current Flaw Detector SWT-1.5
Applicable objects small thin workpieces (bearing rings, etc.)
Detection frequency range 64Hz-5MHz adjustable
Specification size customized according to user requirements
Detection speed 1 second / piece (dual-channel)
Sampling rate 4×25000 times/second
Gain 0-80db adjustable
Phase 0-360 degrees adjustable, frequency distance of 1 degree
Power consumption <600W (220V)
External dimensions control cabinet 600 × 650 × 1600MM (can be customized), the
Host 900 × 650 × 1000MM (can be customized)

Statistics on the total number of inspected workpieces, qualified number, qualified rate and other functions.

Adopt industrial control computer, WINDOWS operating platform flaw detection software.

No damage to the parts after sorting.

Can detect ± 1HRC hardness

Automatic loading, automatic sorting, automatic counting, automatic discharging

Using multi-frequency dual-channel detection of the workpiece (i.e. one tow two)


Support and Services:

Technical Support and Service for Portable Eddy Current Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is SWT-1.5.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
