2 switchable operating frequencies,eddy current conductivity meter，test sheet materials and small samples
| Place of Origin | china |
|---|---|
| Brand Name | Suzhou Desisen (DSS) Electronics |
| Certification | ISO 9001, CE |
| Model Number | DF-2X |
| Minimum Order Quantity | 1 |
| Price | Negotiate |
| Packaging Details | 170 mm×88 mm×50 mm |
| Delivery Time | 5-8days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eddy Current Conductivity Meter | Operating Frequency | 60 KHz And 500 KHz |
|---|---|---|---|
| Detection Object | Sheet Materials And Small Samples | Lift Effect Compensation | 0.1mm |
| Measuring Range | Form0.8% To 112% IACS | Resolution | 0.01 %IACS(less Than 51 %IACS) |
| Accuracy | Measured Value ±0.5% (temperature At 20℃) | Power Supply | Lithium-ion Rechargeable Batteries |
| Operating Voltage | Charger AC220±10V/DC12V | Weight | 0.3KG (battery Included) |
| L*B*H | 170 Mm×88 Mm×50 Mm | Operating Temperature | Tippically From -10°C To + 50°C |
| Storage Temperature | Tippically From -20℃ To +60℃ | Communication Interface | RS232 Serial Port |
| Probe Diameter | ￠13 Mm And ￠7mm | Data Storage | Up To 500 Measurement Readings |
| Highlight | Small Specimens Eddy Current Conductivity Meter,500 KHz Eddy Current Conductivity Meter,Sheet Materials Eddy Current Conductivity Meter |
||
Product Description
2 switchable operating frequencies,eddy current conductivity mete,test sheet materials and small samples
Descriptions

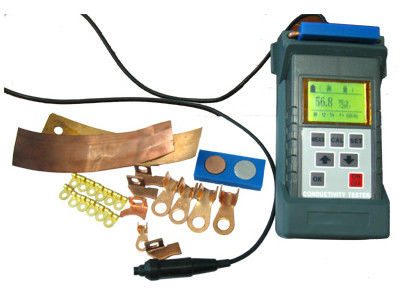

DF-2X eddy-current conductivity meter is a digital conductivity meter with advanced technical performance in China, which can replace similar foreign products and is designed by eddy current testing method. It can be used to check the electrical conductivity, classification and classification of non-ferromagnetic metals.
An Eddy Current Conductivity Meter is a non-destructive testing (NDT) device used to measure the electrical conductivity of materials, particularly metals. It works based on the principle of eddy currents, which are loops of electrical current induced within a conductor when exposed to a changing magnetic field.
The Eddy Current Conductivity Meter is designed to measure the electrical conductivity of conductive materials. The device provides quick and accurate readings without damaging the material under inspection. It is widely used in industries such as aerospace, automotive, and manufacturing for material verification, alloy sorting, and quality control.
Specifications
|
Other descriptions
1,DF-2X eddy-current conductivity meter provides two measurement units (MS/m or %IACS) to choose from, and resistance can be switched directly on the measurement interface.It can also display test results, test frequency, test time and other important parameters.
2,The probe of DF-2X eddy-current conductivity mete is interchangeable, the user can change the probe, the backlight lighting design is easy to read the test data in low lightconditions.
3,DF-2X eddy-current conductivity meter provides two language options: Chinese, English.
4,The unique design of temperature compensation and automatic calibration makes the operation of the eddy-current conductivity meter more concise and reliable.
