60 KHz And 500 KHz Metal Conductivity Meter 0.51% - 112% IACS (full scale)

Name: 60 KHz And 500 KHz Metal Conductivity Meter 0.51% - 112% IACS (full scale)
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: FET-3X3
Price: 7000 USD
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	FET-3X3
MOQ:	1
Price:	USD$7000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO 9001, CE

Document:

FET-3X2 FET-3X3.pdf

Product Name:

Eddy Current Conductivity Meter

Operating Frequency:

60 KHz And 500 KHz

Lift Effect Compensation:

0 To 0.5 Mm

Measuring Range:

Form0.51% To 112% IACS

Resolution:

0.01 %IACS (less Than 51 %IACS)

Accuracy:

Measured Value ±0.5% (temperature At 20℃)

Power Supply:

3.7V, 2200mA/h Lithium-ion Battery

Working Hours:

Continuous Working Time Is About 12 Hours

Weight:

0.5KG (battery Included)

Dimension:

220 Mm×95 Mm×55 Mm

Packaging Details:

220 mm×95 mm×55 mm

Supply Ability:

100 pieces/month

Highlight:

500KHz Conductivity Meter

Metal Conductivity Meter

500KHz eddy current conductivity meter

Product Description

Switchable operating frequencies, metal conductivity meter, lift compensation up to 500μm

Descriptions

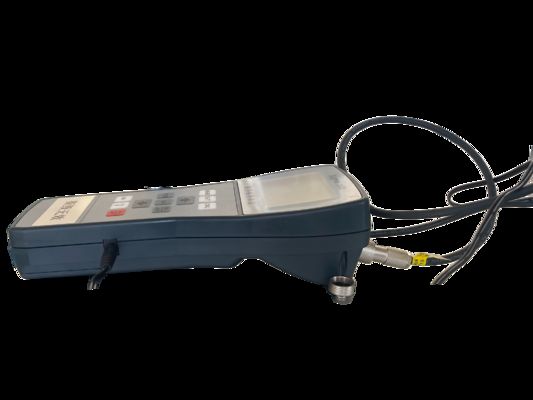

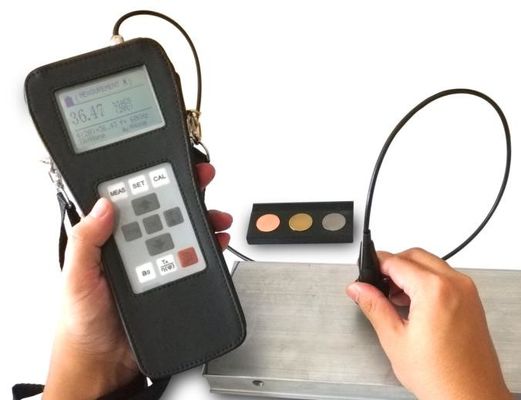

FET-3X3 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. The metal conductivity meters are widely used in the aircraft and aerospace fields for material conductivity. Our many years of experience in this field and our wide selection of instruments, allows us to match the best instrument and probe to our customers requirements. Whether you need a simple and rugged instrument for the use outdoors or a feature packed instrument for laboratory use, we have the answer.

The Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, etc.

Technical Parameters

Model	FET-3X3
Measurement Range	0.51% - 112% IACS (full scale)
Lift-off Compensation	0.5 mm
Operating Frequency	60 kHz and 500 kHz
Measurement Area	Minimum 8 mm (for small areas and thin strips)
Curved Surface Test	Yes (with curvature compensation)
Temperature Compensation	Three types of automatic compensation (same-temperature and different-temperature, automatic and manual input)
Data Storage	4,000 data sets, can be uploaded to a computer
Measurement Accuracy	±0.5% of the measured value

Resistivity, conductivity and temperature coefficient of resistance of typical metals and alloys

Material	Resistivity ρ at 20℃	0~100℃ Temperature coefficient γ	Conductivity at 20℃
Material	Resistivity ρ at 20℃	0~100℃ Temperature coefficient γ	x10⁷ S/m	m/(Ω·mm²)	% IACS
Silver	1.58(1.65)	4.1	6.33	63.3(60.6)	109
Copper (Pure Copper, Annealed)	1.724	4.3	5.80	58	100
Admiralty Brass	6.9		1.45	14.5	25
Phosphor	16		0.63	6.3	11
Cupronickel 90-10	18.95		0.53	5.3	9.1
Cupronickel 70-30 (70Cu-30Ni)	37.4		0.27	2.7	4.6
Pure Aluminum (99.9%)	2.65 (2.83)	4.2	3.77	37.7 (35.3)	65 (61)
Wrought Aluminum 6061-T6	4.1		2.44	24.4	42
Aluminum Alloy 7075-T6	5.3		1.89	18.9	32.6
Aluminum Alloy 2024-T4	5.2		1.92	19.2	33.1
Aluminum Bronze	12		0.83	8.3	14.3
Tungsten	5.65 (5.48)	4.6	1.77	17.7 (18.2)	31
Uranium	30		0.33	3.3	5.7
Zinc	5.95	4.19	1.68	16.8	29
Iron	9.78	6.5	1.03	10.2	17.6
304 Stainless Steel	72		0.14	1.4	2.4
316 Stainless Steel	74		0.135	1.35	2.3
Lead	20.77	3.7	0.48	4.8	8.3
Sodium	4.2		2.38	23.8	41
Tin	11.3	4.7	0.88	8.8	15. 2
Gold	2.35	3.24	4.26	42.6	73.4
Zirconium	40		0.25	2.5	4.3
Zirconium Alloy	72		0.14	1.4	2.4
Titanium (99%)	89		0.11	1.1	1.9
Titanium Alloy Ti-6Al-4V	172		0.058	0.58	1.0
Magnesium (99%)	4.45	16.5	2.25	22.5	38.8
Nickel	6.8	6.9	1.47	14.7	25.3
Low carbon steel (0.23C)	16.9	(1.5~5)	0.59	5.9	10.2
Monel	48.2		0.21	2.1	3.6
Nickel-chromium alloy (0.60Ni, 0.15Cr, 0.25Fe)	110	16	0.09	0.9	1.6
Inconel 600	98		0.1	1	1.7
Hafelloy	115		0.087	0.87	1.5
WaSpaloy	123		0.081	0.81	1.4
Hastelly-C	130		0.077	0.77	1.3

Support and Services:

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your conductivity meter. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is SWT-632 Automatic.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
