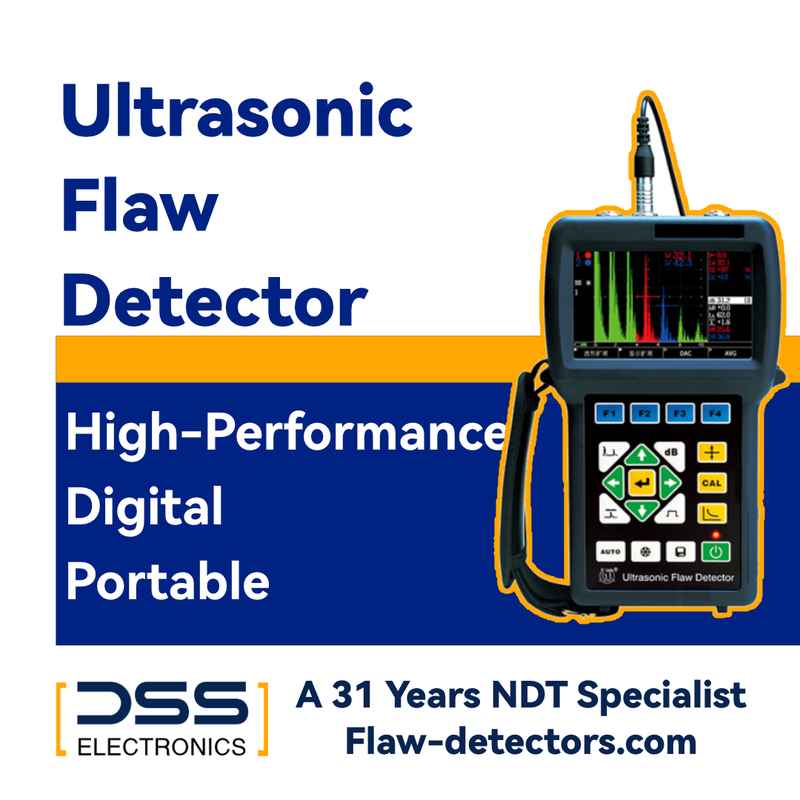

DSS-1003 Digital Ultrasonic Flaw Detector

Name: DSS-1003 Digital Ultrasonic Flaw Detector
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: DSS-1003
Price: 6299 USD
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	DSS-1003
MOQ:	1 Set
Price:	USD$ 6299
Payment Terms:	T/T,D/P
Supply Ability:	100 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Pulse Type:

Negative Square Wave, Output Voltage Continuously Adjustable From 25 To 250 V, With A Step Size Of 25 V

Damping:

400, 80 Ω

Operating Frequency:

Two Modes: Broadband And Narrowband. Broadband: 0.5 To 20 MHz; Narrowband: 1.5 To 3 MHz

Gain:

0.0–110.0 DB, Step Values: 0.1, 1.0, 2.0, 6.0 DB; The 0.1 DB Range Provides Intelligent Acceleration Adjustment Functionality

Sound Velocity Range:

1000–15000 M/s, Continuously Adjustable, With 30 Commonly Used Material Sound Velocity Values Pre-programmed

Detection Range:

0.0–10,000 Mm (steel Longitudinal Wave), Continuously Adjustable, Minimum Step Value 0.1 Mm

Packaging Details:

Wooden box

Supply Ability:

100 sets

Highlight:

9v Electrical Conductivity Meter

ABS Electrical Conductivity Meter

LCD electrical conductivity equipment

Product Description

Product Description:

Advanced circuit design, a sampling frequency of up to 640MHz, and a full WVGA resolution (800x480) display ensure fast and accurate display and analysis of defect echo signals. They can promptly respond to changes and details of various weak signals, effectively guaranteeing the real-time performance and authenticity of echo signals.

The advanced square wave excitation design offers excellent penetration and signal-to-noise ratio for detecting highly attenuating materials or thick workpieces; the adjustable excitation pulse width enables high resolution in detecting thin workpieces and composite materials.

The ergonomically optimized structure and appearance result in an instrument with a 4.3" display, built-in battery and charger, yet weighing only 0.95kg, which is unmatched by domestic counterparts, making it extremely convenient to operate and carry.

The dustproof and waterproof design fully meets the IP65 requirements, allowing reliable operation in harsh environments such as rain, humidity, and dust.

Features:

Industrial-grade, full WVGA TFT display enables the instrument to provide excellent display effects from different angles.

The optimized operation panel and user-friendly menu design allow both left-handed and right-handed operation of the instrument to be quick and hassle-free; there are multiple input methods and options for Chinese and English language menus.

Automatic calibration functions: including quick automatic calibration of material sound velocity, probe delay, probe K value, and testing of the basic performance indicators of the instrument.

The gate area waveform amplification function allows for easy viewing of waveform details; the waveform display area amplification function, combined with the optimized screen aspect ratio, ensures higher echo resolution.

DAC curve: DAC curves can be easily created, modified, stored, and recalled.

When an alarm is triggered, the color of the waveform within the gate changes, and the DAC curve alarm uses different color prompts, making it easy for users to distinguish.

Built-in intelligent lithium battery charger. Automatic detection and display of battery and DC power supply; automatic switching between charging and power supply, and dual protection for battery charging temperature, ensuring safety.

Ultra-long battery working time of more than 8 hours, ensuring a "steady stream" of power for long-term work.

USB external interface supports software upgrades, data transfer and printing, and can be connected to external devices such as mice, keyboards, and USB drives.

Technical Parameters:

Name	DSS-1003 Digital Ultrasonic Flaw Detector
Measurement method	Peak, leading edge
Display	Industrial-grade, TFT 4.3" WVGA color LCD display, resolution 800×480
Pulse shift	-7.5 to 3000 μs
Probe zero value	0 to 999.9 μs
Pulse repetition frequency	25 to 800 Hz, automatic adjustment mode
Vertical linear error	≤3%
Horizontal linear error	≤0.2%
Sensitivity margin	≥60 dB (200Φ2 flat-bottomed hole)
Resolution	≥36dB (5P14)
Dynamic Range	≥32dB
Attenuation	(0–90)%, without affecting linearity or gain
Power supply	High-capacity lithium battery, capable of continuous operation for 8 hours;
Dust/Splash/Waterproof	Complies with IP65 rating
Operating Temperature	-30°C to 50°C
Relative Humidity	20% to 95% RH
Weight	Approximately 0.95 kg (including battery and built-in charger)
Dimensions	246 mm × 166 mm × 47 mm(Height × Width × Depth)

Support and Services:

1. From the date of completion of installation and commissioning of the equipment, as the beginning of the quality assurance period of the equipment. The supplier will warranty the equipment for one year and implement lifelong maintenance service for the equipment. In the equipment warranty period of the relevant costs borne by the supplier, in the equipment warranty period outside of the relevant costs of the supply side only charge material costs.

2. The equipment into normal operation after the supply side will still be ready for the demand side to provide all the technical advice

3. In the use of equipment in the process of the demand side can not be resolved by the demand side of the technical problems, the supply side in the receipt of the demand side's request, should be answered and put forward solutions

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is DSS-1003.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
