2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K

  • 2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K
  • 2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K
  • 2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K
  • 2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number D60K
Minimum Order Quantity 1
Price Negotiate
Packaging Details 195mm×135mm×70mm
Delivery Time 5-8days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Digital Eddy Current Conductivity Meter Unit Of Measurement MS/m、%IACS
Data Processing Mode Single Chip Microcomputer Operating Frequency 60 KHz
Lift-off Effect 0.1mm Measuring Range From5.0Ms/m-to64MS/m
Resolution ±1%(In The 30-64Ms /m Range) Accuracy Measured Value ±0.5% (temperature At 20℃)
Power Supply 4×1.2V "AA" Rechargeable Battery (Ni-MH/Ni-cd) Battery Life 60hours Of Continuous Operation(without Backlight)
Weight 1KG (battery Included) Dimension 195mm×135mm×70mm
Operating Temperature Tippically From -10°C To + 45°C Storage Temperature Tippically From -20℃ To +50℃
Communication Interface RS232 Interface Display LCD Liquid Crystal, Backlight Function
Highlight

Digital Metal Conductivity Measuring Instrument

,

Metal Conductivity Measuring Instrument

,

60 KHZ Metal Conductivity Measuring Instrument
Leave a Message
Product Description

2 units of measurement ,Digital eddy current conductivity meter,Microcontroller data processing

Descriptions

    D60K  digital eddy current conductivity meter  can directly measure and analyze the conductivity value of non-ferrous metal materials and their alloys (such as measuring the conductivity value of silver, copper, aluminum, magnesium, titanium, austenitic carbon steel and their alloys). At the same time, the digital eddy current conductivity meter is also used for indirect measurement and evaluation of parameters closely related to the electrical conductivity of metal materials, such as alloy identification and verification, material mechanics evaluation, and determination of the densityof powder alloy parts.
   An Eddy Current Conductivity Meter is a non-destructive testing (NDT) device used to measure the electrical conductivity of materials, particularly metals. It works based on the principle of eddy currents, which are loops of electrical current induced within a conductor when exposed to a changing magnetic field.

   D60K digital eddy current conductivity meter is designed to provide the user with fast and accurate conductivity measurements, while offering the best in reliability, usability, technology and cost effectiveness. D60K digital eddy current conductivity meter is easy to use, whether you are a shop inspector or an engineer.

   It meets the requirements for conductivity measurements in the Aircraft manufacture and maintenance fields, where conductivity measurements are used to verify proper alloy/ temper or detect heat damaged components. ID60K digital eddy current conductivity meter is also useful to determine the purity of precious metals or whether they are counterfeit.

Specifications

Digital eddy current conductivity meter
Conductivity Range 8.6% to 110% IACS (International Annealed Copper Standard)
Accuracy ±0.5% of reading(Temperature at 20℃)
Resolution 1 %IACS(less than 51 %IACS);
Data Storage Up to 500 measurement readings
Display Digital LCD with backlight
Probe diameter ￠16mm
Power Supply 4×1.2V "AA" rechargeable battery (Ni-MH/Ni-cd)
Operating Temperature Tippically from -10°C to + 45°C
Storage temperature Tippically from -20℃ to +50℃
Communication Interface RS232 serial port
Measurement Modes Single and continuous measurement
Calibration Method Automatic and manual calibration available
Weight 1KG (battery included)
Dimensions 195mm×135mm×70mm
Lift effect compensation 0.1mm


Other descriptions

1,D60K digital eddy current conductivity meter  provides two measurement units (MS/m or %IACS) to choose from, and resistance can be               switched directly on the measurement interface.It can also display test results, test frequency, test time and other important parameters.
2,D60K digital eddy current conductivity meter takes advange of  single chip computer data processing, accurate and reliable reading.
3,Good temperature compensation of D60K digital eddy current conductivity meter ensures reliable and stable.
4,In the aerospace and automotive industries,D60K digital eddy current conductivity meter  monitors the heat treatment process, strength and         hardness of forged aluminium alloys .

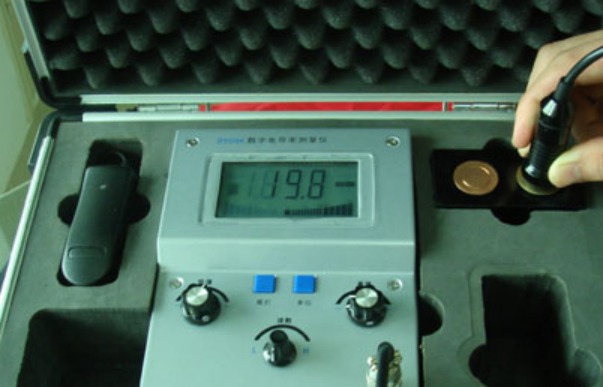

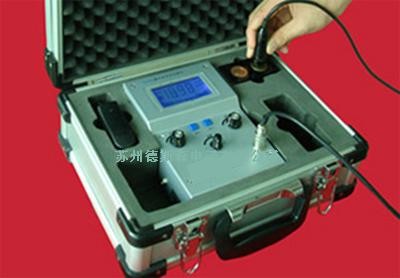

D60k digital eddy current conductivity meter Operating diagram


2 units of measurement ,Digital eddy current conductivity meter, Microcontroller data processing D60K 0
