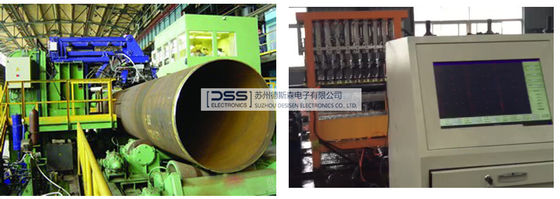

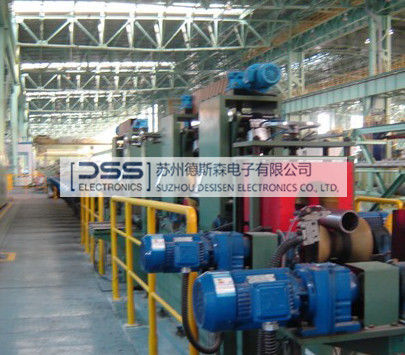

Seamless Steel Tube Pipe Automatic Testing System

Name: Seamless Steel Tube Pipe Automatic Testing System
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: CUT-HY Series
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	CUT-HY Series
MOQ:	1 sset
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	100 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Working Temperature:

-15~55℃

Saving Temperature:

-20~60℃

Relative Humidity:

Not Exceed 85%

Working Voltage:

AC380±15V

Supply Ability:

100 sets

Highlight:

Steel Pipe Testing Equipment

Seamless Tube Ultrasonic Testing Equipment

Seamless Pipe Ultrasonic Testing Equipment

Product Description

Product Description:

Applying to electricity ,nuke industry, oil gas ,metallurgy,car,aerospace,boiler,liquid gas transfer and other seamless steel tube nondestructive detection.

Suitable rang and testing ways

φ20-φ90mm:Rotation ways

φ90-φ273mm:water bag array mode

φ273-φ1220 mm:Normal array ways

Features:

1. It adopts rotation probe or water bag array testing ways,according to different specifications of workpiece to choose the most suitable testing ways.

2. It can realize longitudinal and horizontal and hierarchy and other flaw detection on all tube,simultaneously equip with thickness measurement.

3. It can realize ultrasonic vortex integration testing ,so it makes sure the quality of testing

4. It will alarm automatically and mark when meet flaws

Technical Parameters:

Name	Portable Eddy Current Flaw Detector CUT-HY Series
The number of channels	24 customized
Gain amount	80dB,stepping is 0.1dB
working method	single probe launches,receive or double probes launch ,receive respectively
surplus sensitivity	≥90dB
resolution	≥26dB
Dynamic range	≥30dB
Scanned range	0～5000mm
Frequency range	0.5～15MHz
Repetition frequency	500Hz～10KHz,changeable
Vertical linearity	≤5%
Horizontal linearity	≤1%
Strobe setting	every channel sets three strobes,alarm strobe,tracking strobe,and lock strobe
Lasting time alarm	delayed time 0.5～10S ,stepping is 0.1 s
Defect detection conditions and waveform preservation	the number is unlimited,it can be used for waveform playback ,waveform communication,waveform printing

Support and Services:

Technical Support and Service for CUT-HY Series Automatic Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is CUT-HY Series.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
