Gear Shaft Portable Eddy Current Flaw Detector In-line And Offline

Gear Shaft Portable Eddy Current Flaw Detector Online And Offline

Discriptiions

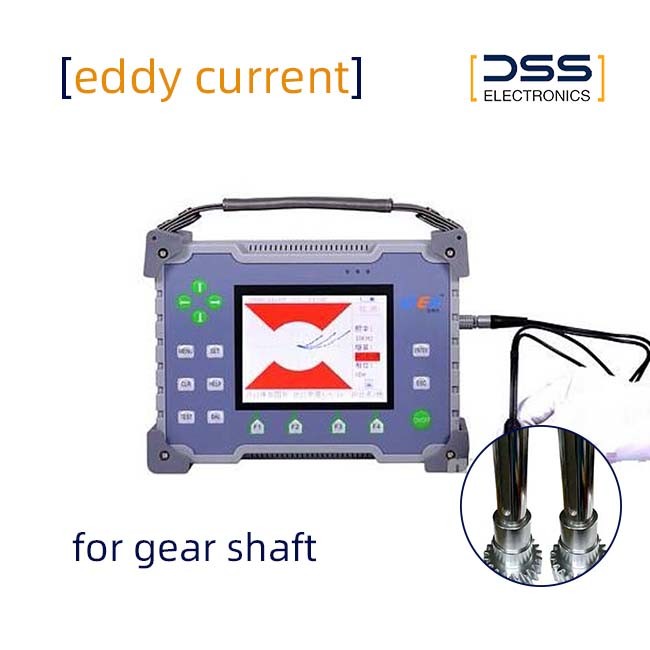

   FET-9HP intelligent digital Portable eddy current flaw detector is convenient to carry, suitable for metal tube bar, wire, plate online, offline flaw detection, also can be used for tube inner wall, drill plate, bearing ring, pipe, hole slab, square billet, round billet and other mechanical parts automatic flaw detection .
   The signal obtained by the detection channel can be displayed on the screen in real time by impedance plan and time base scan. It can adapt to the testing requirements of various metal materials, and because of the all-digital design, FET-9HP intelligent digital eddy current flaw detector can establish a number of standard testing procedures or expert systems in the instrument, which is convenient for users to call when changing product specifications, equipped with input and output control interfaces, which is convenient for the detection site to be connected with various equipment and work synchronously, forming a highly automated whole.
   FET-9HP intelligent digital Portable eddy current flaw detector adopt the most advanced digital electronic technology, eddy current technology and microprocessor technology, real effectively detect defects in metal components, to distinguish the type of alloy and heat treatment, and thickness variations, etc. FET-9HP intelligent digital Portable eddy current flaw detector is a small intelligent digital eddy current inspection instrument, adjustable phase, gain, test frequency, small size, lightweight, portable, built-in rechargeable battery can be no power supply on-site testing. The interference signal can be effectively suppressed and the operation is simple and convenient, and the frequency, the gain and the phase of the instrument are preset by the professional personnel. In the test, the operator at any time to detection the corresponding parameters of the detection can be carried out. The operator does not require special training for a long time, who can carry out work.

Specifications

Other descriptions

1,FET-9HP intelligent digital Portable eddy current flaw detector can store a large amount of various test procedures and test data.
2,FET-9HP intelligent digital Portable eddy current flaw detector is adjustable probe drive (excitation) rating: 1 ~ 8, in the true sense of "multifunctional" detection.
3,FET-9HP intelligent digital Portable eddy current flaw detector has one detection channel and can expand the number of channels as needed.

         FET-9HP intelligent digital Portable eddy current flaw detector's operating picture
