Wide Test Frequency Intelligent Digital Eddy Current Flaw Detector Copper Wire Aluminum Wire
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Name | Eddy Current Flaw Detector | Detection Object | Copper Wire, Aluminum Wire |
|---|---|---|---|
| Frequency Range | 64 Hz～5 MHz | Stability | Quartz Crystal Stability |
| Gain Range | 0-90dbcontinuously Adjustable, Step: 0.5dB | Phase Rotation | 0 ~ 360° Continuously Adjustable, Step: 1 Deg |
| Gain Ratio | (Y/X) 0.1 ~ 10.0 | Detection Speed | 550 M/min |
| Operating Temperature | Tippically From -10°C To + 55°C | Storage Temperature | Tippically From -20℃ To +60℃ |
| Operating Voltage | AC220±10 V | Relative Humidity | Not More Than 85% |
| Highlight | Intelligent digital eddy current flaw detector,digital eddy current flaw detector,Intelligent eddy current flaw detector |
||
Product Description

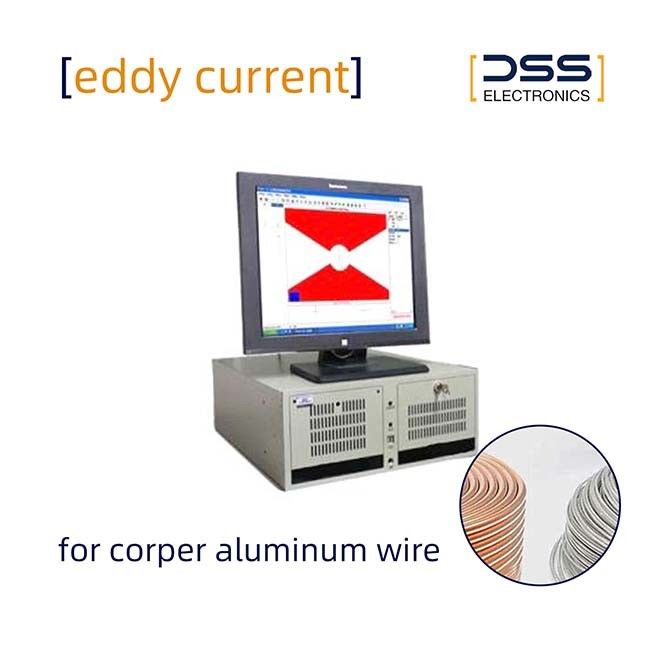

Wide Test Frequency Intelligent Digital Eddy Current Flaw Detector Copper Wire Aluminum Wire
Descriptions
FET-1.0 Digital Intelligence Eddy Current Detector is a high-precision, non-destructive testing (NDT) instrument designed to detect surface and sub-surface flaws, cracks, corrosion, and material inconsistencies in conductive materials. This technology utilizes the principles of eddy currents to identify defects without damaging the material being inspected.
FET-1.0 Digital Intelligence Eddy Current Detector is equipped with cutting-edge digital signal processing (DSP) technology, providing enhanced accuracy, faster response times, and improved flaw detection sensitivity. This ensures precise identification of even minute defects in various metals, such as aluminum, copper, steel, and other conductive materials.
The FET-1.0 intelligent digital eddy current flaw detector has a wide range of test frequencies from 64Hz to 5MHz with quartz crystal stability. Therefore, it is suitable for metal pipes with different conductivity (seamless pipes or welded pipes) and bars, wires and wires.
The intelligent digital eddy current flaw detector uses eddy current impedance plane technology and time base scanning technology to display the eddy current change of the object and two strip scanning curves in real time. All operation adopts menu-type man-machine dialogue and keyboard control. The standard test program can be stored in a large number of soft and hard disks, which is convenient for users to call at any time. Important test results can be frozen on the screen with text annotations and can be permanently stored on hard and soft disks or printed as hard copies.
Specifications
|
Other descriptions
1,The standard test program can be stored in a large number of soft and hard disks, which is convenient for users to call at any time.
2,Wideband digital filtering suppresses the effect of speed change on signal amplitude, so it is very suitable for manual or automatic flaw detection.
3,FET-1.0 Digital Intelligence Eddy Current Detector comes with Menu Dialog (Chinese and English).
FET-1.0 Digital Intelligence Eddy Current Detector detects the copper wire onsite.
