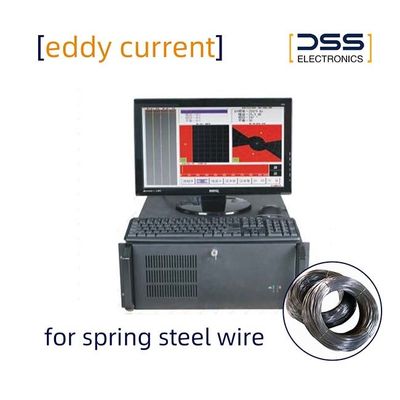

500m/min Spring Steel Wire Dual-channel Eddy Current Flaw Detector Non destructive Inspection

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Eddy Current Flaw Detector | Advanced | Intelligent Digital |
---|---|---|---|
Detection Channels | 2 | Detection Mode | Offline On-line Inspection |
Frequency Range | 1Hz-10MHz | Gain Range | 0-90dbcontinuously Adjustable, Step: 0.5dB |
Phase Rotation | 0 ~ 359° Continuously Adjustable, Step: 1 Deg | Detection Speed | 1m/min~500m/min |
Operating Temperature | Tippically From -10°C To + 55°C | Storage Temperature | Tippically From -20℃ To +60℃ |
Operating Voltage | AC220±10 V | Display | High-resolution LCD Displa |
Probe Type | External Pass-through, Rotary | Gain Ratio | (Y/X) 0.1 ~ 10.0 |
Highlight | Offline eddy current flaw detector |
Product Overview
The DS-MODEL-5H Intelligent Digital Dual-Channel Eddy Current Flaw Detector is a professional non-destructive testing (NDT) equipment utilizing advanced eddy current testing technology, specifically designed for metal material defect detection. This equipment is widely applied in quality control and safety inspection across industries including steel, non-ferrous metals, aerospace, petrochemical, and more.
Application Range
Wire Material Testing
- Metal Wire Inspection: Suitable for various specifications of steel wire, copper wire, aluminum wire, and other wire products
- Cable & Wire Testing: Online and offline quality detection of copper and aluminum conductors
- Specialty Alloy Wires: Defect detection for high-end materials including stainless steel wire and titanium alloy wire
Tube and Rod Material Testing
- Metal Tubing: Inner and outer wall detection for steel tubes, copper tubes, aluminum tubes, and other metal tubing
- Rod Material Inspection: Defect detection for round bars, square bars, and various cross-sectional rod materials
- Semi-finished Products: Quality control for square billets, round billets, and other metal semi-finished products
Precision Components Testing
- Bearing Ring Inspection: Surface and near-surface defect detection for bearing inner and outer rings
- Drill Plate Testing: Hole diameter precision and defect detection for drilled plate materials
- Perforated Billet Testing: Quality inspection for various perforated metal plate materials
Specifications
Frequency Range | 1Hz-10MHz |
Gain range | 0-90dbcontinuously adjustable, step: 0.5dB |
Phase rotation | 0 ~ 359° continuously adjustable, step: 1 Deg |
Detection speed | 1m/min~500m/min |
Display | High-resolution LCD displa |
Probe type | External pass-through, rotary |
Operating voltage | AC220±10 v |
Operating Temperature | Tippically from -10°C to + 55°C |
Storage temperature | Tippically from -20℃ to +60℃ |
Detection Channels | 2 |
Gain ratio | (Y/X) 0.1 ~ 10.0 |
Detection mode | Offline on-line inspection |
Features
1,The signal obtained by the detection channel can be displayed on the screen in real-time in the form of impedance plan and time-base scan.
2,The intelligent digital double-channel eddy current flaw detector has the function of detecting signal playback, two-way access and so on.
3,Various detection programs and detection data can be stored in large quantities.
4,The operation interface of the intelligent digital double-channel eddy current flaw detector is simple, intelligent and easy to operate
DS-MODEL-5H intelligent digital double-channel eddy current flaw detector's operating picture
