Double Channel Eddy Current Sorter Steel Hardness Automatic Sorting Machine

Double Channel Eddy Current Sorter Steel Hardness Automatic Sorting Machine

Discriptions

    EHS-4 eddy current hardness non-destructive sortors (also known as eddy current testing systems for hardness measurement) are devices that utilize electromagnetic induction to evaluate the hardness of conductive materials without causing damage to the material. These systems work based on the principle of eddy currents, which are circular electric currents induced within conductors when they are exposed to a changing magnetic field. The characteristics of the eddy currents (such as their magnitude and distribution) depend on the material's properties, including its hardness.
    EHS-4 eddy current hardness non-destructive sortors is suitable for the hardness sorting of cast iron, ductile iron, wear-resistant cast iron and malleable cast iron (commonly known as malleable iron), all kinds of cast iron normalizing, annealing, quenching or tempering hardness detection, can be used for automatic sorting system.
   EHS-4 eddy current hardness non-destructive sortorscan also be used for normalizing and annealing hardness detection and sorting of any steel, such as various wire rolling parts, gears, etc.EHS-4 eddy current hardness non-destructive sortors can also be water heating pipe hardness sorting.

Specifications

Other descriptions

   The workpiece tested with EHS-4 eddy current hardness non-destrutive sortors must meet the same material, the same size, the same surface state, the same heat treatment process state, and the surface is not serious defect.

   EHS-4 eddy current hardness non-destrutive sortors can store the upper limit and lower limit of the magnetic flux of 9 different specifications and sizes of the workpiece, and the magnetic flux of No. 1, No. 2,No. 3,No. 4... No. 9 represents the measured workpiece of different specifications and sizes, which is convenient for users to call directly.

   EHS-4 eddy current hardness non-destrutive sortors are Used for 100% non-destructive automatic sorting of qualified and unqualified hardness of the workpiece after heat treatment. The workpiece with qualified hardness and the workpiece with unqualified hardness will be automatically separated by the sorting door.

  The main control instrument of EHS-4 eddy current hardness non-destrutive sortors has a column chart to dynamically display the hardness state of the workpiece. Under normal process conditions, the amplitude of the bar chart reflects the hardness of the workpiece to be measured, which is intuitive.

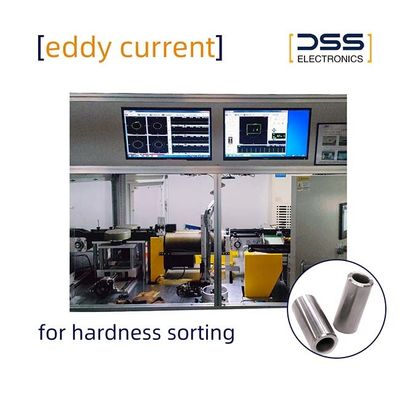

                   EHS-4 eddy current hardness non-destrutive sortors ’oparating picture
