Series Tube And Rod Eddy Current Automatic Testing System

Series Tube And Rod Eddy Current Automatic Testing System

Descriptions

    The eddy current non-destructive testing (NDT) device is designed for the inspection of conductive materials, particularly in detecting surface and near-surface defects in metals. It utilizes the principle of electromagnetic induction to generate eddy currents in the test material, allowing for precise evaluation of material integrity.
    The detection system can be equipped with high precision delay marking module, speed measuring device, marking machine and universal adjustable probe frame to realize eddy current online automatic flaw detection.            The system has the function of synchronous alarm output with internal and external clock control, and high precision marking mark width can be controlled.Application fields: non-destructive testing of pipe and bar in electric power, nuclear industry, oil and gas industry, metallurgy, automobile, aerospace, boiler, liquid gas transportation and other industries.

Specifications
                    Parameters of eddy current flaw detection pipe equipment

Other descriptions

1,Through or rotating mode, according to the different specifications of the workpiece to choose the appropriate detection method
2,FET-HY eddy current flaw detection pipe equipment can realize the longitudinal and transverse defect detection of the whole tube and rod body
3,Can realize ultrasonic eddy current integrated testing, fully ensure the quality of the workpiece detection
4, Automatic alarm and spray mark when encountering defects

5,Detection diameter range of FET-HY eddy current flaw detection pipe equipment
φ5-φ90mm through type,
φ20-φ90mm through type
φ90-φ273mm through type
φ273-φ1220 mm rotary type

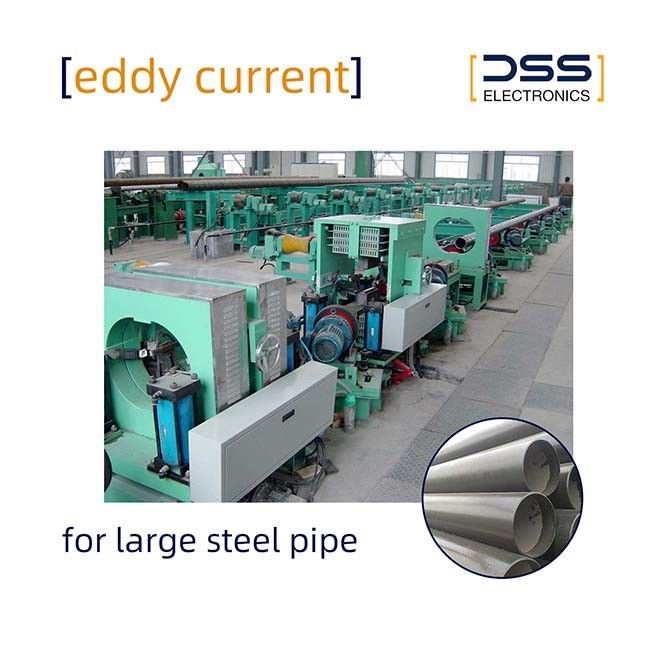

                     Eddy current flaw detection pipe equipment inspection site diagram
