Product Details:
|
Product Name: | Eddy Current Conductivity Meter | Operating Frequency: | 60 KHz And 500 KHz |
---|---|---|---|
Lift Effect Compensation: | 0 To 0.5 Mm | Measuring Range: | Form0.51% To 112% Iacs |
Resolution: | 0.01 %IACS(less Than 51 %IACS) | Accuracy: | Measured Value ±0.5% (temperature At 20℃) |
Power Supply: | 3.7V, 2200mA/h Lithium-ion Battery | Working Hours: | Continuous Working Time Is About 12 Hours |
Weight: | 0.5KG (battery Included) | Dimension: | 220 Mm×95 Mm×55 Mm |
Highlight: | 500KHz Conductivity Meter,Metal Conductivity Meter,500KHz eddy current conductivity meter |
2 switchable operating frequencies,metal conductivity meter,lift compensation up to 500μm

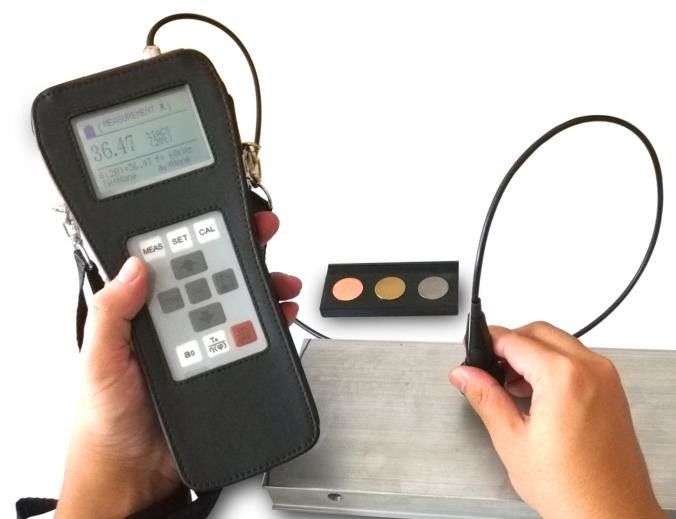

Descriptions
FET-3X3 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate,quality control,material state check and so on.The metal conductivity meters are widely used in the aircraft and aerospace fields for material conductivity. Our many years of experience in this field and our wide selection of instruments, allows us to match the best instrument and probe to our customers requirements. Whether you need a simple and rugged instrument for the use outdoors or a feature packed instrument for laboratory use, we have the answer.
The Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industriesof machinery, electric power, aviation, aerospace, etc.
Specifications
Measurement Range |
0.51 %to112 %IACS(International Annealed Copper Standard) |
Resolution |
0.1 %~0.001 %IACS |
Accuracy |
Measured value ±0.5% (temperature at 20℃) |
Operating frequency |
60 KHz and 500KHz |
Probe Type |
One diameter φ14 mm and one diameter φ8mm |
Display |
Large LCD screen, with backlit screen displaying several important parameters simultaneously |
Operating temperature | Typically from 0°C to +50°C |
Storage Temperature | Typically from -20°C to +90°C |
Battery Life |
12 hours of continuous operation, Lithium-ion battery |
