Two units of measurement,eddy current conductivity meter, workpieces containing non-conductive thin layers
| Place of Origin | china |
|---|---|
| Brand Name | Suzhou Desisen (DSS) Electronics |
| Certification | ISO 9001, CE |
| Model Number | DF-1X1 |
| Minimum Order Quantity | 1 |
| Price | personnally dicuss |
| Packaging Details | 220 mm×95 mm×55 mm |
| Delivery Time | 5-8days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eddy Current Conductivity Meter | Operating Frequency | 60 KHz Sine Wave |
|---|---|---|---|
| Detection Object | Workpieces Containing Thin, Non-conductive Layers | Lift Effect Compensation | Probe Compensation 0.5 Mm |
| Measuring Range | Form0.8% To 112% IACS | Resolution | 0.01 %IACS(less Than 51 %IACS) |
| Accuracy | Measured Value ±0.5% (temperature At 20℃) | Power Supply | 3 AA Rechargeable Batteries (Ni-MH) |
| Battery Life | 16hours Of Continuous Operation(without Backlight) | Weight | 0.5KG (battery Included) |
| Dimension | 220 Mm×95 Mm×55 Mm | Operating Temperature | Tippically From -10°C To + 50°C |
| Storage Temperature | Tippically From -20℃ To +50℃ | Communication Interface | RS232 Serial Port |
| Probe Diameter | ￠14 Mm | Data Storage | Up To 500 Measurement Readings |
| Highlight | Measuring Range Eddy Current Conductivity Meter,Portable Eddy Current Conductivity Meter,portable eddy current electrical conductivity meter |
||
Product Description
Two units of measurement,eddy current conductivity meter, workpieces containing non-conductive thin layers
Descriptions
DF-1X1 eddy-current conductivity meter is a digital conductivity meter with advanced technical performance in China, which can replace similar foreign products and is designed by eddy current testing method. It can be used to check the electrical conductivity, classification and classification of non-ferromagnetic metals.
An Eddy Current Conductivity Meter is a non-destructive testing (NDT) device used to measure the electrical conductivity of materials, particularly metals. It works based on the principle of eddy currents, which are loops of electrical current induced within a conductor when exposed to a changing magnetic field.
The Eddy Current Conductivity Meter is designed to measure the electrical conductivity of conductive materials. The device provides quick and accurate readings without damaging the material under inspection. It is widely used in industries such as aerospace, automotive, and manufacturing for material verification, alloy sorting, and quality control.
Specifications
|
Other descriptions
1,DF-1X1 eddy-current conductivity meter provides two measurement units (MS/m or %IACS) to choose from, and resistance can be switched directly on the measurement interface.It can also display test results, test frequency, test time and other important parameters.
2,The DF-1X1 with a lift compensation of up to 0.5mm can be used to measure workpieces containing non-conductive thin layers such as paint and plastic molds.
3,DF-1X1 eddy-current conductivity meter provides two language options: Chinese, English.
4,The unique design of temperature compensation and automatic calibration makes the operation of the eddy-current conductivity meter more concise and reliable.
5,It has the setting of ambient temperature and material temperature coefficient to ensure the accurate measurement of material conductivity values with different temperature coefficientsSex is very suitable for material research institutions and universities.

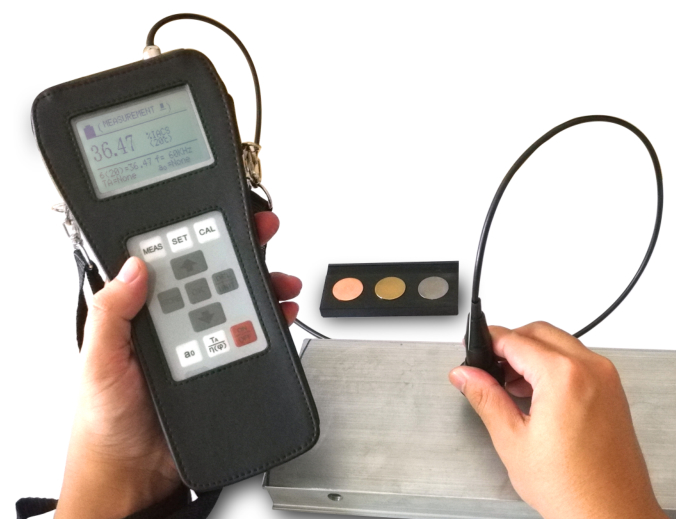

DF-1X1型涡流电导率仪测量图
