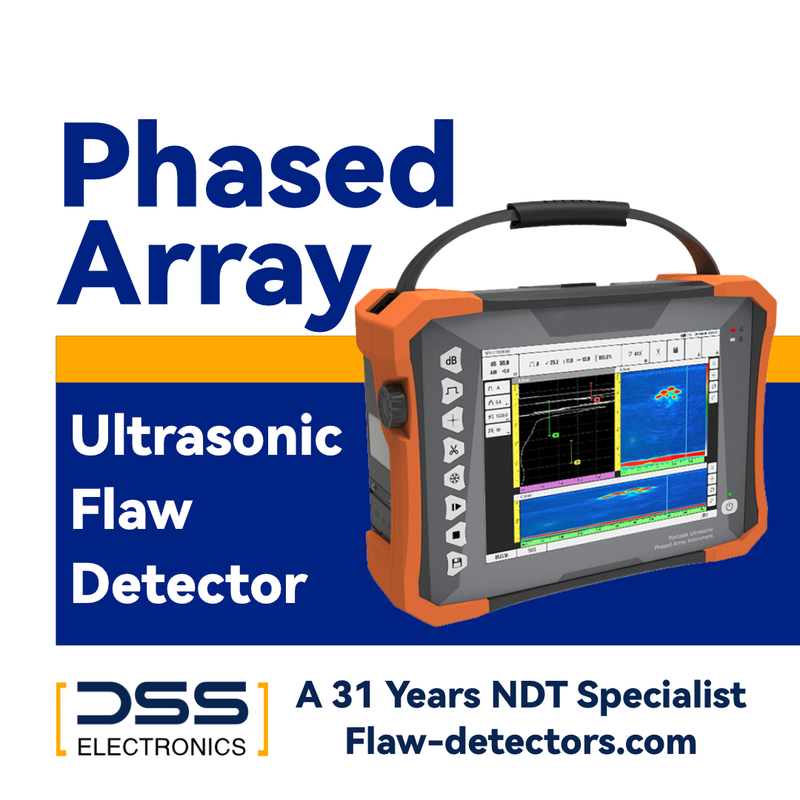

Phased Array Ultrasonic Detector DSS-PA32

Name: Phased Array Ultrasonic Detector DSS-PA32
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: DSS-PA32
Price: 50000 USD
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	DSS-PA32
MOQ:	1 set
Price:	USD $50000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	100 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Packaging Details:

wooden case

Supply Ability:

100 sets

Highlight:

Light Weight Portable Ultrasonic Flaw Detector

Small Portable Ultrasonic Flaw Detector

TOFD Portable Ultrasonic Flaw Detector

Product Description

Product Description:

The DSS-PA32 is a portable phased array ultrasonic testing instrument featuring 32:128 detection channels. The system integrates conventional ultrasonic testing, TOFD (Time of Flight Diffraction), traditional phased array, total focusing method (TFM), simultaneous TOFD and phased array scanning, and dual array probe support. With its waterproof and oil-resistant touch panel, the instrument provides complete testing data recording capabilities, making it an advanced domestically-produced intelligent phased array ultrasonic testing solution.

Features:

Detection Channels

The 32:128 channel configuration offers comprehensive testing capabilities including phased array detection, total focusing method imaging, simultaneous TOFD and phased array scanning, dual array probe support, dual-channel TOFD detection, and dual-channel conventional testing to meet diverse customer requirements.

Phased Array Modules

Specialized modules include: butt weld inspection, crankshaft inspection, pipeline corrosion detection, rail weld inspection, rim and axle inspection, bolt inspection, TKY inspection, and other application-specific modules.

TOFD Module

Features process parameter configuration and probe wedge parameter settings. Automatically calculates coverage area parameters based on probe and process parameters, including PCS (Probe Center Separation), scanning surface coverage, back-wall coverage, and beam angle calculations.

Conventional Module

Key functions include: A-scan waveform display; gate range, horizontal, depth, and amplitude settings; sound velocity, delay, and zero-point configuration; waveform freeze capability; DAC (Distance Amplitude Correction) curves; automatic gain control; pulse-echo and pitch-catch modes; pulse width and transmission voltage adjustment; filtering options; channel parameter storage and recall functions.

Process Design

Incorporates process simulation modeling with CAD software compatibility for importing workpiece dimensions directly into the instrument. Enables direct workpiece geometry recall and provides customized inspection processes with complete turnkey solutions.

Phased Array Calibration

Supports ASME standard ACG (Angle Corrected Gain) and TCG (Time Corrected Gain) curve compensation functions (TCG records up to 16 points), addressing energy distribution uniformity and measurement accuracy issues in sector scanning. Features streamlined calibration procedures for sound velocity, delay, ACG, TCG, and encoder settings with user-friendly operation.

Image Processing

Dynamic depth focusing and smoothing functions ensure excellent detection resolution and superior image quality for defects at various depths. Image zoom and pan capabilities enable customized display layouts, while gate expansion functionality allows detailed defect observation. Supports multi-group display with up to 4 simultaneous display groups.

Structural Design

Fully sealed waterproof and dustproof construction suitable for harsh testing environments. Comprehensive interface options include USB 3.0 for high-speed data transfer and DisplayPort (DP) video output convertible to HDMI for unlimited screen expansion.

Delay Precision

Nanosecond-level delay accuracy enhances phase delay precision, significantly suppressing side lobes while improving longitudinal and lateral beam resolution for enhanced imaging clarity.

Data Acquisition

Continuous A-scan storage, real-time rapid imaging for phased array linear scanning, sector scanning, C-scanning, and TOFD scanning. Total focusing method imaging with continuous data recording via encoder or time-base triggering.

Focusing Laws

Automatic calculation and rapid generation based on beam angle, focal distance, scanning mode, probe, and wedge parameters. Sector scan angle stepping with automatic optimization.

Filters

High-pass, low-pass, and multiple narrow-band filter options. Pulse filter bandwidth automatically optimized according to probe frequency, showcasing advanced noise processing technology.

Display

10.4-inch industrial-grade TFT touchscreen display providing excellent visibility in outdoor conditions and bright lighting environments.

Power Supply

Dual AC/DC power capability with battery operation ensuring over 4.5 hours of continuous operation.

Technical Parameters:

Channel parameters
PA/TFM mode	32:128 channel
UT mode	2 channels
TOFD mode	2 channels

Conventional ultrasound performance index
PRF	25Hz~ 10kHz
Emission voltage	75V~ 250V (50Ω load)
Pulse width	30Ns~ 1000ns, step 5ns
Damping	400Ω , 80Ω
Sampling frequency	100MHz
Bandwidth	Multi-band coverage 0.5MHz~ 20MHz (-3dB)
Gain	0.0dB~ 110.0dB
Sensitivity margin	≥ 60dB (narrowband), ≥ 52dB (wideband) (2.5P20, 2000022 2 flat bottom hole)
Vertical Linear	≤3%
Horizontal Linear	≤0.1%
resolution	≥26dB (2.5P20)
Dynamic Range	≥30dB
Sampling frequency	100MHz
Filter	High-pass, low-pass, multiple narrowband
detection	Positive, Negative, Full Wave, Radio Frequency (TOFD Mode)
Channel	dual-channel
Maximum Range	10000mm (steel longitudinal wave)
Measurement Gate	A,B,G
Gate Starting Point	Full Range
Gate Width	From the starting point of the gate to the full range
Gate Height	1~ 99%
Alarm	Sound and light alarm
Measurement Mode	Frontier, Peak
TCG	16 o'clock

Phased Array/Total Focusing Performance Indicators
Number of Channels	32:128 channel
Maximum aperture	32-element array
Maximum supported number of array elements	128 array elements
Focus Rule	Not less than 1024
Scanning Angle Range	-89°~ 89°
Calibration Function	Sound velocity, delay, TCG, ACG, encoder
Detection Range	1000mm
Minimum Angle Step	0.1°, with automatic optimization function
Sampling frequency	100MHz, 10bit
detection	Full Wave
A Sweep Wave Height Display	Up to 800%
Adjustable Analog Gain	80dB
Maximum repetition frequency	20kHz
Emission voltage	20V~ 110V (50Ω load)
Pulse Mode	Bipolar Square Wave
Pulse width	30Ns~ 1000ns, step 5ns
Bandwidth	Multi-band coverage 0.5MHz~ 20MHz (-3dB)
Filtering	High-pass, low-pass, multiple narrowband
Trigger	Encoder, Time Base
Measurement Mode	Frontier, Peak
Display Reading	Amplitude, Sound Path, Horizontal, Depth
Measurement Resolution	0.5mm
Scan Type	Line scan, Sector scan, C-scan, D-scan, Total Focusing Method (TFM)
Scanning Length	Not less than 15 meters
Scanning speed	Not less than 30mm/s
TFM Imaging	Real-time 2D
TFM Focus Count	Up to 1 million points
3D Reconstruction Imaging	Yes

DSS-PA32 Portable Phased Array Ultrasound Detector

The DSS-PA32 is a cutting-edge portable phased array ultrasound detector featuring 32:128 detection channels. This versatile instrument integrates a comprehensive suite of inspection functions, including:

Conventional ultrasound

Time-of-Flight Diffraction (TOFD)

Traditional phased array

Full-focused imaging

Simultaneous TOFD and phased array sweeping (supporting dual-array probes)

Designed for robust field use, the DSS-PA32 boasts a waterproof and oil-proof panel and intuitive touch-screen operation. It ensures complete data recording for all inspections, making it a leading intelligent phased array ultrasound testing equipment solution.

Key Application Areas:

The DSS-PA32 is ideal for a wide range of industrial inspections, including:

Conventional and specialized weld inspections in:
Steel structures
Power station boilers
Pressure vessels
Pipelines
Nuclear power components
Ships
Oil and storage tanks
Ethylene pipelines
Railway system engineering: Weld, vehicle, and machine axle wheelset inspections
Aerospace: Thorough inspection of aluminum alloy friction weld heads and composite material bonding structures
Power industry: Inspection of leaf roots, blades, and bolts
Workpieces with restricted moving space: The instrument is equipped with two TOFD inspection channels, capable of covering 100mm thick weld seams in a single pass.

Software:

C-scan of welds

3D modeling of welds

Phased Array Ultrasonic Detector DSS-PA32 2

Total Focusing Method (TFM)

Detection channel

32:128 oil-through phased array detection function, full focus detection imaging function, TOFD and phased array simultaneous scanning, support for dual array probes, dual-channel TOFD detection function, dual-channel conventional detection and other functions to meet various detection needs of customers.

Phased Array Module

Longitudinal wave TFM module, shear wave TFM module, butt weld TFM inspection module, butt weld dimensional inspection module, butt weld inspection module (TOFD+phased array multi-group on the same day), flat plate C-scan TFM inspection module, flat plate C-scan inspection module, bolt TFM inspection module, bolt inspection module, corrosion TFM inspection module, corrosion inspection module, TK inspection module, etc.

TOFD module

It has the function of setting process parameters and probe module parameters, and calculates the relevant parameters of the coverage area according to the probe and process parameters, including PCS, true coverage of scan, true mold cover of bottom, and sound angle.

Process design

Universal Test Block 3D Model

sectorial scanning

2D Imaging of bolt

3D modeling of welds

3D modeling of welds

C-scan of welds

It has a process simulation model, and you can also use CAD software to edit the workpiece size and import it into the instrument, directly call the workpiece shape, and customize exclusive inspection processes for users, providing a full set of solutions in one stop.

Display

10.4-inch industrial-grade TFT display, provides normal operation, and provides excellent display effect outdoors or under strong light.

Application:

Pipeline automatic scanner phased array inspection

Compatible with various non-destructive testing equipment probes such as phased array, TOFD, eddy current, etc.; ensure that the probe scans the old pipe weld in parallel and at a uniform speed, reduce the labor intensity of operators, reduce human errors, eliminate noise interference, and improve detection efficiency; flexible track, free change of curvature, suitable for pipes above 250mm; dual-wheel drive, the probe can be adjusted in both circumferential and axial directions along the pipe; remote automatic control, encoder can be added; low power consumption, replaceable rechargeable oil, standby time of more than hours; ultra-light material, easy to install and expensive.

Routine weld inspection

Phased array fan-shaped scanning is used for butt welds, fillet welds, and TKY welds in steel structures, power plant boilers, pressure vessels, transmission pipelines, nuclear power, oil tanks, storage tanks, etc. The primary and secondary waves are used to fully cover the welds, and the line scanning replaces the zigzag scanning, which significantly improves the detection efficiency and reliability.

Phased Array C-Scan Inspection of Composite Materials

The widespread use of composite materials, especially in aerospace, used to be detected by single probe and single point, which had low detection efficiency and was easy to miss. The cabinet control array push detection method can not only improve the detection efficiency, but also visualize the defects and evaluate the defect area.

Bolt inspection or threaded pipe inspection

Bolts are used in many flow connections of steel structures. The root diameter cracks of the bolts seriously affect the use of the threads. By using the small angle fan scan of the phased array to cover the thread area of the bolt inspection, it is easy to determine whether the threads have cracks by displaying the results in an image. The CTS-PA32 instrument meets the requirements of the high-temperature bolt field acoustic phased array detection technology in Appendix D of the power standard "DL/T 694-2012 Technical Guidelines for Ultrasonic Testing of High-temperature Fastening Bolts".

PE pipe joint inspection

The ethylene pipeline electric fusion joint adopts phased array line scanning detection, which can detect good welding, unmelted welding, slag inclusion (mud into sand), overburned welding and cold state. The test results are clear and easy to judge. The heat increase joint of the second adjustment pipeline adopts phased array scanning and sector scanning to cover the entire joint, and all kinds of defects have a high detection rate.

Small diameter pipe weld inspection solution

At present, the inspection of small-diameter pipe welds is usually carried out by X-ray, but X-ray inspection has high radiation and cannot be carried out at the same time as other types of work, which takes up construction time. Conventional acoustic inspection uses the near-field area of the acoustic field due to the thin wall thickness, and there are many wave-to-weight conversions, which makes it difficult to quantify and identify signals. The inspection results are greatly affected by the level, condition and on-site working conditions of the inspectors. Our company has launched a new self-developed phased array ultrasonic detector, a phased array probe for small-diameter pipe inspection and a chain detector for small-diameter pipes, which are

It provides a one-stop solution for weld inspection. The inspection results are displayed graphically, forming an A+5+C display, which is convenient for defect identification, characterization and measurement. The specially designed curved chip focusing phased array probe and the serialized design meet the requirements of arc modules of various pipe diameters, with higher signal-to-noise ratio and resolution. The specially designed chain scanner is easy to install and test, and can be expanded for different pipe diameters.

Support and Services:

Technical Support and Service for Phased Array Ultrasonic Detector DSS-PA32

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.
