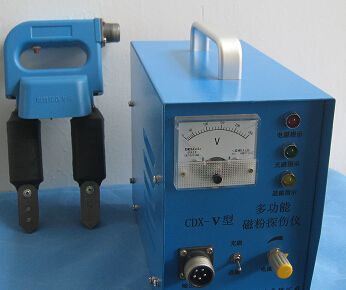

NDT Magnetic Particle Flaw Detector Portable CDX-V

Product Description:

The company absorbs the advantages of magnetic particle flaw detector at home and abroad, selects new materials, adopts new technology; manufactures the improved all-electronic-controlled new magnetic particle flaw detector, which has the advantages of complete functions, fast flaw detection, high detection sensitivity, easy operation, low failure rate, convenient maintenance, etc.; the instrument adopts the method of magnetisation with applied magnetic field, which is small in volume, light in weight and convenient to carry; the highly integrated circuit makes a device with all functions of the original equipment; it can be equipped with A, D, E, O four kinds of probes, the output current is adjustable, which can be adapted to different sensitivity requirements, AC magnetisation phase control, overload control, and the output current is adjustable. Highly integrated circuit makes a device with all the functions of the original equipment; A, D, E, O can be equipped with four kinds of probes, the instrument's output current size can be adjusted to adapt to the requirements of different sensitivities, AC magnetisation phase control of power outage, overload protection, and demagnetisation and other functions.

Procedure:

1 will be the power plug line and instrument power socket plugged, probe and output socket connected.

2 Turn on the instrument power switch, the power indicator red light, the instrument control circuit is connected at the same time, servo work.

3 will be examined and the probe workpiece contact good, will be ‘magnetisation, demagnetization’ switch is placed in the ‘magnetization’ position, press the switch on the probe, then the instrument on the workpiece is magnetized state, the green work light is on. Release the switch, then cut off the main circuit current, the workpiece stops magnetising. The size of the magnetising current can be changed by the ‘current adjusting’ potentiometer, when the current adjusting potentiometer is placed in the minimum position, the output current is the minimum (0); when the current adjusting potentiometer is placed in the maximum position, the output current is the maximum.

4 For some workpieces, if the residual magnetism on the workpiece will affect the next process or normal use, the workpiece should be demagnetised. When demagnetising, put the ‘Magnetise, Demagnetise’ switch in the “Demagnetise” position, the ‘Demagnetise Indicator’ yellow light will be on, press the button on the probe to demagnetise the workpiece.

5 When stop using, switch off the instrument power switch, cut off the power.

Caveat:
