Portable Magnetic Yoke Flaw Detector YHY602 AC/DC For Ferromagnetic Materials
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Size | Small |
|---|---|---|---|
| Weight | Light | Integrated Molding | Feel Comfortbale |
| Two Power Supply | AC DC | Scanning Speed | 0.1m/s-10m/s |
| Highlight | ferromagnetic materials magnetic yoke Flaw Detector,Portable magnetic yoke Flaw Detector,AC/DC magnetic yoke Flaw Detector |
||
Product Description
Portable magnetic yoke Flaw Detector YHY602 (AC/DC) for ferromagnetic materials
product feature
The magnetic yoke flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight and convenient carrying. It is suitable for the magnetic particle detection of surface and near surface defects of ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries, boilers, pressure vessels, pressure pipelines and various types of welded structures. The flaw detector can be directly connected to AC power, and can also be used with DC magnetized power supply, which is efficient and lightweight. Especially suitable for hull weld inspection, high-altitude steel structure weld inspection and pressure vessel internal operation.
Parameter
| Type number | YHY602 |
| Single-phase AC power supply | AC220V 50Hz |
| Operating temperature | -10～+40℃ |
| Working temperature rise | <18℃ |
| Relative humidity | <80% no condensation |
| sensitivity | Type A1 standard specimen 15/50 grooves clearly displayed |
| Dc magnetized power supply | 有 |
| Alternating current | AC2.2A |
| Dc working current | DC 1.5A |
| Charge time | 3hours |
| Battery life | 4h/6h(AC) / 8h(DC) |
| Temporary load rate | 50% |
| Magnetic pole distance | 0~220mm |
| Lifting force A C | ≥7.1kg (69N) (Plugged into 220V AC) |
| D C | ≥22.2kg (216N) |
| Weight yoke | 2.3kg |
| Magnetized source | 0.6kg |

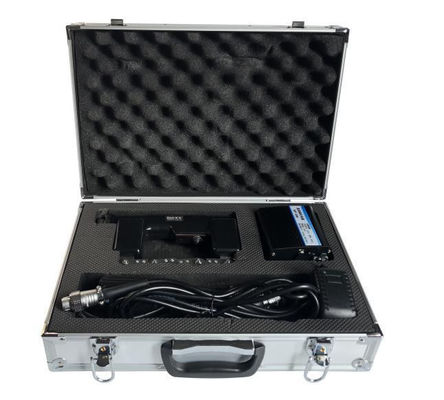

configuration
| Name | quantity |
| Magnetic yoke flaw detector | 1 |
| power line | 1 |
| Dc magnetized power supply | 1 |
| DC power charger | 1 |
| DC power output cable | 1 |
| DC power backpack | 1 |
| instrument container | 1 |
Options: A1 sensitivity test block, lifting force test block, magnetic suspension, magnetic paste, magnetic powder, white light
