Forging Defect Sorting with Eddy Current Testing

Automated Forging parts eddy current sorter | DSS FET-99S Flaw Inspection System 0

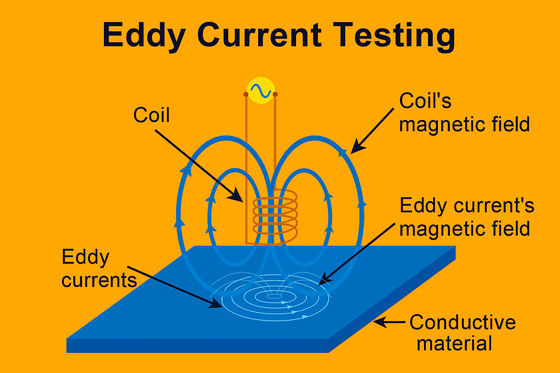

DSS Electronics specialize in automated non-destructive testing (NDT) solutions. For defect sorting in forgings, we utilize advanced eddy current testing technology. This method induces eddy currents on the surface of the forging and analyzes subtle changes in the eddy current field to identify potential defects.


When a forging contains defects such as cracks, inclusions, or material inconsistencies, they disrupt the normal eddy current path, causing changes in the coil's induced voltage and phase.

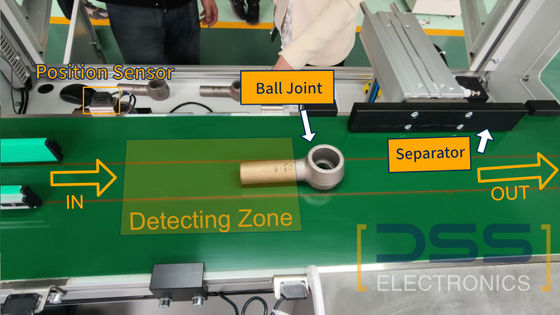

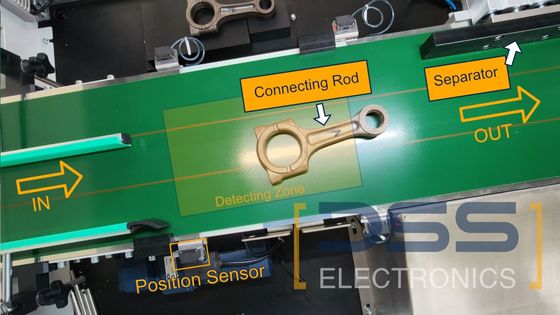

Our automated equipment can real-time, high-speed acquire and analyze these signals, comparing them against pre-set acceptance criteria. Upon detecting abnormal signals, the system immediately triggers a sorting mechanism, automatically removing the defective forging from the production line. This ensures 100% online/offline full inspection, guaranteeing product quality and boosting production efficiency. This non-contact method offers high inspection speed, repeatability, and is an ideal choice for efficient defect sorting on forging production lines.

Technical Parameters:

NamePortable Eddy Current Flaw Detector FET-99S
Detection channel 1 (can be extended according to the number of channels)
frequency range64 Hz ~ 10 MHz, to meet the detection of different metal parts
gain range0 ~ 90.0 dB continuously adjustable, step: 1dB
phase rotation0 ~ 359 ° continuously adjustable, step: 1 deg
Gain ratio(Y/X) 0.1～10.0
Detection speed0-780m/min
adjustable probe drive (excitation) level1-10
more in the display modeimpedance, time base;
 digital filteringlow-pass (0Hz ~ 2000Hz) high-pass (0Hz ~ 2000KHz)
alarm modesound and light alarm output

delay hardware output alarm, real-time hardware output alarm

non-equal amplitude, asymmetric phase alarm area settings

fast digital / analog electronic balance

with end, end signal removal function

can be stored in a large number of testing programs and testing data

eddy current signal playback expansion function, measuring defects amplitude, phase, digital values

Automatically form a test report (including the number of tests, the number of qualified and unqualified number)

Automatically record and display the number of defects and their location
fading display coefficient1 ~ 100
Display modesolid line, fading
automatic balance time1 ~ 1000 seconds
power supplylithium battery once full use 6-12 hours
 Operating temperature -15 ~ 55 ℃
  Storage temperature-20 ~ 60 ℃
   Relative humidityno more than 85%
  Working voltageDC24V


Support and Services:

Technical Support and Service for Portable Eddy Current Flaw Detector

We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

On-site Support

Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

Online Support

Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Desisen.

Q2: What is the model number of this product?

A2: The model number of this product is FET-99S.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Does this product have any certification?

A4: Yes, this product has ISO9001 certification.

Q5: What's the minimum order quantity?

A5: The minimum order quantity is 1.
