Portable Eddy Current Testing Instrument Frequency Range 1 Hz - 2 MHz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Requency Range | 1Hz～2MHz | Gain Ratio | (Y/X) 0.1 ~ 10.0 |
|---|---|---|---|
| Gain Range | 0-48dbcontinuously Adjustable, Step: 0.5dB | Testing Channels | 1 (Expandable As Needed) |
| Phase Rotation | 0 ~ 359° ContinFuously Adjustable, Step: 1 Deg | Probe Drive (Excitation) Level | 1 ~8 |
| Auto-Balance Time | 1 ~ 1000 Seconds | Display Modes | Impedance, Time Base |
| Multiple Filtering Selection | High-pass, Low-pass, Band-pass | Signal Gating | Head & Tail Signal Cut-off Function |
| Data Storage | Capable Of Storing Numerous Testing Programs And Test Data | Clock Source | Internal / External Selectable |
| Signal Review & Analysis | Eddy Current Signal Replay Function; Measures Defect Amplitude, Phase, Value | Blanking Coefficient | 1 ~ 1000 Seconds |
| Language | Chinese / English Operation | Power Supply | Lithium Battery |
| Battery Life | 8 Hours Of Continuous Operation In Full Charged | Operating Voltage | DC24V |
| Operating Temperature | Tippically From -10°C To + 50°C | Storage Temperature | Tippically From -20℃ To +60℃ |
| Size（L*W*H) | 330mm*290mm*190mm | Weight(including The Battery) | 2.3 KG |
| Detection Speed | 0-300m/min | The Object Of Detection | Pipes、 Rods、wires、 Bearings、 Automotive Parts |
| Highlight | 128GB ultrasonic crack detection equipment,usb ultrasonic crack detection machine,wifi ultrasonic crack detection machine |
||
Product Description

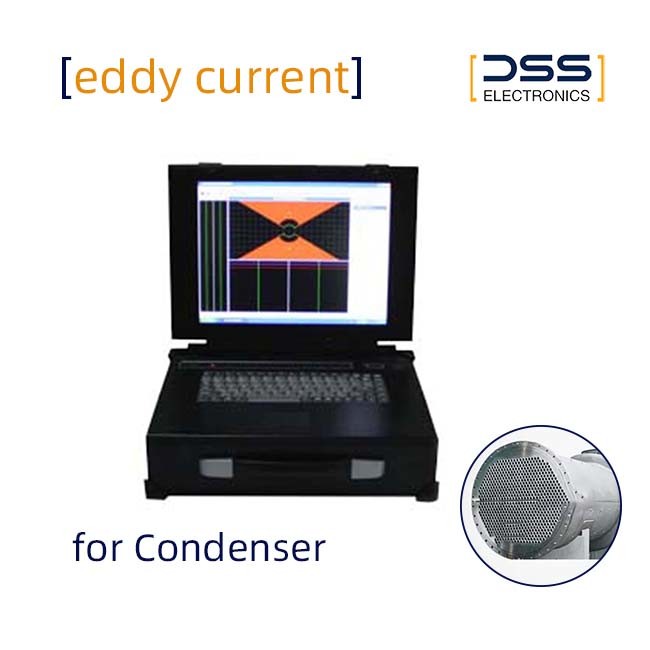

Portable Eddy Current Testing Instrument Frequency Range 1 Hz - 2 MHz
Discriptiions
The FET-9HS portable flaw detector is a versatile and compact device designed for both online and offline inspection of metal pipes, including steel pipes, aluminum pipes, heat exchanger tubes, and condenser components. Equipped with an internal insertion-type probe, it effectively identifies various defects on the inner surfaces of pipes. The system features a relatively independent testing channel capable of driving a combined probe consisting of absolute and differential coils. This enables simultaneous data acquisition for detecting longitudinal cracks and transverse flaws (e.g., seams) that may occur during the production process. The FET-9HS demonstrates high sensitivity to axial defects such as hidden cracks and open fractures. Furthermore, it reliably detects cracks and damage caused by equipment malfunctions during manufacturing. Signals captured by the detection channel are displayed in real-time on the screen as impedance plane diagrams and time-base scanning graphs, providing intuitive visualization of results. The FET-9HS is adaptable to the inspection requirements of diverse metallic pipe materials. Leveraging its fully digital architecture, it supports the creation of multiple standardized detection programs or expert systems within the instrument, facilitating seamless transitions when changing product specifications. Additionally, it includes input and output control interfaces, enabling integration with various devices at the inspection site for synchronized operation, thus forming a highly automated system.
Specifications
The FET-9HS Portable Eddy Current Testing Instrument Parameters
| Requency Range | 1Hz～2MHz | Gain ratio | (Y/X) 0.1 ~ 10.0 |
| Gain Range | 0-48dBcontinuously adjustable, step: 0.5dB | Probe Drive (Excitation) Level | 1 ~8 |
| Phase Rotation | 0 ~ 359° continFuously adjustable, step: 1 Deg | Auto-Balance Time | 1 ~ 1000 seconds |
| Detection Speed | 0-300m/min | Display Modes | Impedance, Time Base |
| Power Supply | Lithium battery | Multiple filtering selection | High-pass, low-pass, band-pass |
| Battery Life | 8 hours of continuous operation in full charged | Signal Gating | Head & Tail Signal Cut-off function |
| Operating Voltage | DC24V | Data Storage | Capable of storing numerous testing programs and test data |
| Operating Temperature | Tippically from -10°C to + 50°C | Clock Source | Internal / External selectable |
| Storage Temperature | Tippically from -20℃ to +60℃ | Signal Review & Analysis | Eddy current signal replay function; Measures defect amplitude, phase, value |
| Testing Channels | 1 (Expandable as needed) | Blanking Coefficient | 1 ~ 1000 seconds |
| Size(L*W*H) | 330mm*290mm*190mm | Language | Chinese / English operation |
| Weight(including the battery) | 2.3 KG | The object of detection | Pipes, rods,wires, bearings, automotive parts |
Other descriptions
1.The vortex flow signal playback expansion function enables the measurement of the amplitude, phase and digital value of the defect.
2.FET-9HS intelligent digital Portable eddy current flaw detector is adjustable probe drive (excitation) rating: 1 ~ 8, in the true sense of "multifunctional" detection.
3.FET-9HS intelligent digital Portable eddy current flaw detector has one detection channel and can expand the number of channels as needed.
FET-9HS intelligent digital Portable eddy current flaw detector's operating picture
