Intelligent Non-destructive Sorting Instrument ZGF-A

  • Intelligent Non-destructive Sorting Instrument ZGF-A
  • Intelligent Non-destructive Sorting Instrument ZGF-A
  • Intelligent Non-destructive Sorting Instrument ZGF-A
  • Intelligent Non-destructive Sorting Instrument ZGF-A
  • Intelligent Non-destructive Sorting Instrument ZGF-A
Place of Origin China
Brand Name Suzhou Desisen (DSS) Electronics
Certification ISO 9001, CE
Model Number ZGF-A
Minimum Order Quantity 1 set
Price discuss personally
Packaging Details Wooden box
Delivery Time 10-20 work days
Payment Terms T/T,D/P
Supply Ability 100 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Conditions The Same Size Of The Rules, Non-regular Pieces Can Be Applied. Sorting Precision A, Carbon: 0.03C B, Hardness: Brinell ± 10HB, Rockwell ± 1HRC C, Hardened Layer: 0.2mm
Resolution A, Carbon 0.01C B, Hardness: Brinell ± 1HB, Rockwell ± 0.1HRC C, Hardened Layer: 0.1mm. Detection Speed 1000 / Hour (depending On The Size Of The Workpiece And The Operator's Proficiency)
Working Power AC 220V ± 10V External Dimensions And Weight 364.1 × 191.6 × 300mm, 8kg
The Type Of External Probe Sleeve Probe, Plane Probe, Pen Probe, Rectangular Probe.
Highlight

full scale Electrical Conductivity Meter

,

electrical conductivity meter for metals

,

abs electrical conductivity probe
Leave a Message
Product Description

Product Description:

ZGF-A intelligent non-destructive sorter adopts a large-screen LCD display and a large-size digital display tube. The display interface has: bar graph, cursor graph, waveform graph and digital display. Users can choose different display interfaces according to different sorting items, which makes the quality condition of the measured workpiece clear at a glance on the display and makes the operation of the instrument more intuitive and simpler for users.

      1. Non-destructive testing, no special requirements on the surface of the workpiece (to avoid the traditional detection methods need to destroy the defects of the surface of the workpiece state).

      2. The instrument is simple, convenient, with unqualified products sound and light alarm function (the instrument is set up within the man-machine dialogue function, only in the same specifications of the workpiece to prepare two standard samples and after a simple setup can be carried out after work).

      3. Detection speed. (Detection of the workpiece only needs to be positioned to contact the appropriate probe can be, the efficiency of the traditional detection methods dozens of times, or even hundreds of times).

      4. To meet the needs of large-volume workpiece inspection, to ensure product quality foolproof (can be a full 100 detection of the workpiece, to avoid the conventional sampling caused by the leakage of detection).

      5. Instrument sensitivity can be adjusted in a wide range (detection current and frequency continuously adjustable to adapt to the needs of different workpieces and testing projects).

      6. Rich graphical interface, the quality of the measured workpiece intuitive display (using liquid crystal screen display and digital tube dual display mode, the display interface has: bar graph, wave pattern, cursor map and digital display of four. According to the relevant graphics and cursor position can be observed intuitively the quality of the workpiece under test, after the relevant procedures can be set to measure the steel species, hardness value, the height of the hardened layer, carbon content, etc.).

      7. Instrument modelling beautiful, light weight, exchange.

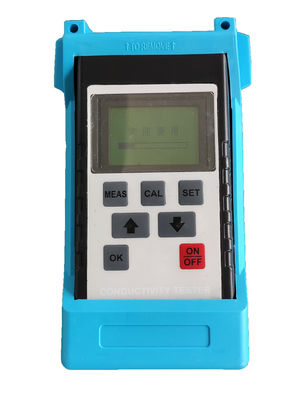

Technical Parameters:

Parameters Specifications
Power Supply 9V Battery
Resolution 0.1 MS/cm
Environmental Conditions 0 To 80% RH Non-condensing
Storage Temperature -10 To 60°C
Temperature Compensation Automatic (0 To 50°C)
Operating Temperature 0 To 50°C
Measuring Range 0.01 To 199.9 MS/cm
Calibration Points 1 Or 2 Points
Temperature Coefficient 2%/°C
Accuracy ±2% Full Scale


Applications:

1. Magnetically conductive materials (e.g. wire, plate, pipe, strip, billet and various automotive parts, standard parts, bearing parts, forgings, cast steel parts, etc.)

2. Distinction of steel grades and identification of steel grades of the same specification size material. (Rapid sorting of materials)

3. Hardness test and rapid differentiation of workpieces of the same size. (Fast sorting of hardness)

4. Carbon content of materials can be measured for carbon structural steel. (Carbon fixing)

5. Distinction and identification of defects in materials and heat-treated workpieces. (Flaw detection)

6. Identification and sorting of mechanical properties of materials and heat-treated workpieces.



Support and Services:

1. From the date of completion of the installation and commissioning of the equipment, as the beginning of the quality assurance period of the equipment. The supplier will warranty the equipment for one year and implement lifelong maintenance service for the equipment. In the equipment warranty period of the relevant costs borne by the supplier, in the equipment warranty period of the relevant costs of the supply side only charge material costs.
2. The equipment into normal operation after the supply side will still be ready for the demand side to provide all the technical advice
3. In the use of equipment in the process of the demand side can not be resolved by the demand side of the technical problems, the supply side in the receipt of the demand side's request, we can take a Virtual Space Video, or get to the scene in time.


FAQ:

Q&A about Desisen FET-3X3 Electrical Conductivity Meter
  • Q: What is the Brand Name for this Electrical Conductivity Meter?
    A: The Brand Name for this Electrical Conductivity Meter is Desisen.
  • Q: What is the Model Number for this Electrical Conductivity Meter?
    A: The Model Number for this Electrical Conductivity Meter is FET-3X3.
  • Q: Where is this Electrical Conductivity Meter made?
    A: This Electrical Conductivity Meter is made in China.
  • Q: What is the Certification for this Electrical Conductivity Meter?
    A: This Electrical Conductivity Meter is ISO9001 certified.
  • Q: What is the Minimum Order Quantity for this Electrical Conductivity Meter?
    A: The Minimum Order Quantity for this Electrical Conductivity Meter is 1.
