Electromagnetic Eddy Current Tester for Cracked Welding Defect Test Equipment Portable Eddy Current Flaw Detector

Product Description:

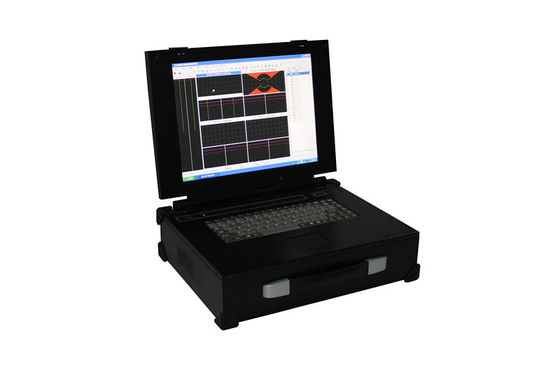

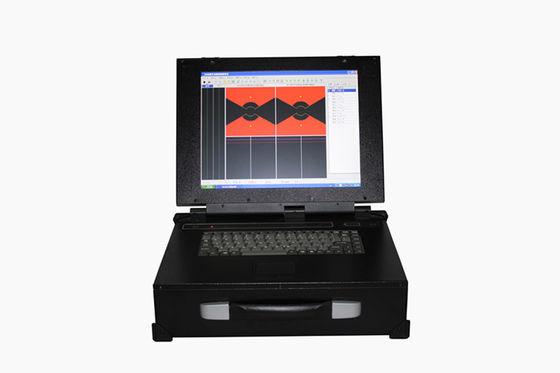

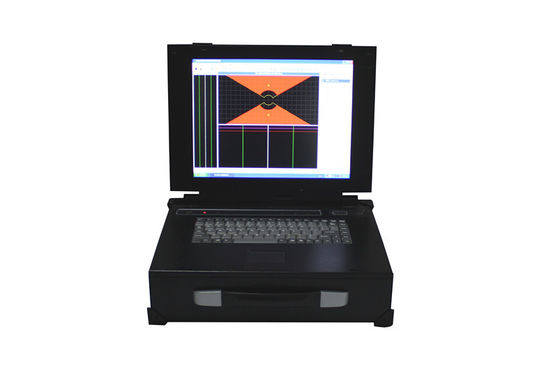

Portable FET-9HS intelligent digital eddy current flaw detector easy to carry for metal pipe bar, wire, steel pipe, steel bar, copper wire, aluminum wire online, offline flaw detection, available pipe wall, drilling plate, bearing rings, tubes, mechanical parts, orifice billet, billet, billet, and other mechanical parts of the automatic flaw detection. With a relatively independent test channel, can drive by and differential coil composition of the combined probe, detection channel at the same time for data acquisition, for detecting metal pipe, bar . Wire in the production of longitudinal cracks and transverse defects (such as barge mouth), dark meet, open cracks and other axial defects with high sensitivity. In the production process, due to faults caused by the product crack injury, road injury can be reliably detected.

Instrument parameter

1. Detecting channel :1 (the number of channel can be extended according to needs)
2. Frequency scope:64 Hz～2 MHz,satisfying detection of multiple kinds of metal material
3. The scope of gains:0～99.0 dB ,continuously adjust ,stepping is 0.5db
4. Phase position rotation:0～359°,continuously adjust,stepping is 1 degree
5. Ratio of gains:(Y/X)0.1～10.0
6. Detecting speed:0-640m/min
7. Probe drive level is adjustable :1～8 level ,truly means multifunctional detection
8. Quickly figure/analog electronic balance
9. Unequal amplitude,dissymmetric phase position alarm region setting
10. Multiple displayed ways:impedance ,time base
11. Digital filtering :low pass(0Hz～2000Hz)high pass(0Hz～2000Hz)
12. Delayed hardware output alarm,real time hardware output alarm
13. Sound-light alarm output
14. Automatic balanced time:1～1000 seconds
15. Internal external clock option
16. Having function of end socket,end signal cut off
17. Saving mass detecting procedures and detecting data
18. Eddy current signal playback extended function,detecting amplitude,Phase position,digital value of flaw
19. Automatically record the number of flaw and its position
20. Automatically form detecting report (including the number of detecting quantity,number of qualified products ,unqualified products)
21. Displayed ways :real line,blanking
22. Blanking displayed coefficient
23. China-English operating ,online help
24. Background solution of rectangular coordinate system and Polar coordinate system
25. Automatic calendar ,time displayed
26. Power source :lithium battery can be used for 6-8hours once it is charged /6
