Portable Magnetic Yoke Flaw Detector YHY602 AC/DC For Ferromagnetic Materials

Name: Portable Magnetic Yoke Flaw Detector YHY602 AC/DC For Ferromagnetic Materials
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: YHY602 (AC/DC
Price: 400.00 USD
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	YHY602 (AC/DC
MOQ:	1 SET
Price:	USD $300-500
Payment Terms:	L/C,T/T
Supply Ability:	100 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Color:

Black

Size:

Small

Weight:

Light

Integrated Molding:

Feel Comfortbale

Two Power Supply:

AC DC

Scanning Speed:

0.1m/s-10m/s

Supply Ability:

100 sets

Highlight:

ferromagnetic materials magnetic yoke Flaw Detector

Portable magnetic yoke Flaw Detector

AC/DC magnetic yoke Flaw Detector

Product Description

Portable magnetic yoke Flaw Detector YHY602 (AC/DC) for ferromagnetic materials

product feature

The magnetic yoke flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight and convenient carrying. It is suitable for the magnetic particle detection of surface and near surface defects of ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries, boilers, pressure vessels, pressure pipelines and various types of welded structures. The flaw detector can be directly connected to AC power, and can also be used with DC magnetized power supply, which is efficient and lightweight. Especially suitable for hull weld inspection, high-altitude steel structure weld inspection and pressure vessel internal operation.

Parameter

Type number	YHY602
Single-phase AC power supply	AC220V 50Hz
Operating temperature	-10～+40℃
Working temperature rise	<18℃
Relative humidity	<80% no condensation
sensitivity	Type A1 standard specimen 15/50 grooves clearly displayed
Dc magnetized power supply	有
Alternating current	AC2.2A
Dc working current	DC 1.5A
Charge time	3hours
Battery life	4h/6h(AC) / 8h(DC)
Temporary load rate	50%
Magnetic pole distance	0~220mm
Lifting force A C	≥7.1kg (69N) (Plugged into 220V AC)
D C	≥22.2kg (216N)
Weight yoke	2.3kg
Magnetized source	0.6kg

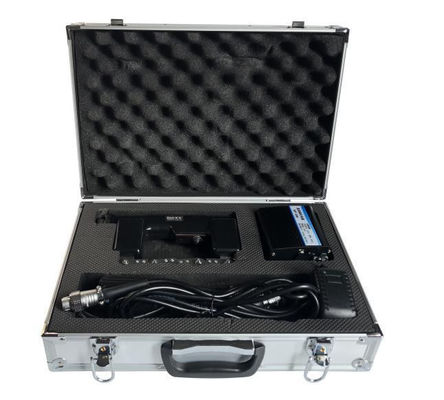

configuration

Name	quantity
Magnetic yoke flaw detector	1
power line	1
Dc magnetized power supply	1
DC power charger	1
DC power output cable	1
DC power backpack	1
instrument container	1

Options: A1 sensitivity test block, lifting force test block, magnetic suspension, magnetic paste, magnetic powder, white light
