Portable Eddy Current Scanner aerospace components testing FET-2021X

Name: Portable Eddy Current Scanner aerospace components testing FET-2021X
Brand: Suzhou Desisen(DSS) Electronics Co.,Ltd
SKU: FET-2021X
Availability: InStock

Brand Name:	Suzhou Desisen (DSS) Electronics
Model Number:	FET-2021X
MOQ:	1 set
Price:	personnally dicuss
Payment Terms:	T/T
Supply Ability:	100 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Rotate Speed:

10～240 Rpm Is Continuously Adjustable

Direction Of Rotation:

Positive /negative Button Switch Option

Probe Signal Wire Electrical Patterns:

Rotary Slip Ring Wire Electrical Applications

Probe Connecting:

Standard Q8 Fast Speed Connector

Instrument:

7 Core: Connect The Instrument Through The Special Adapter

Drive The Probe Diameter Range:

4 ~ 32mm

Scanner Rated Operating Voltage:

15V

Power Supply:

Can Be Powered By The Instrument, Can Also Be External Electrical Power Supply

Scanner External Dimensions:

100mm (L) × 50mm (W) × 24mm (H)

Weight:

255 Grams (net Weight)

Packaging Details:

wooden

Supply Ability:

100 sets

Highlight:

High Precision Eddy Current Sorter

High Speed Eddy Current Sorter

Intelligent Digital Eddy Current Sorter

Product Description

Product Description:

FET2021X handheld eddy current rotary scanner is a new generation of intelligent inspection equipment, its rotation speed can be continuously adjusted, positive and negative direction can be rotated, the use of slip ring lead appliances to ensure the transmission of detection signals, the scanner can be connected to a variety of types of absolute, differential, reflective and orthogonal detection probes, and with a variety of eddy current impedance plane instrumentation to match.

Features:

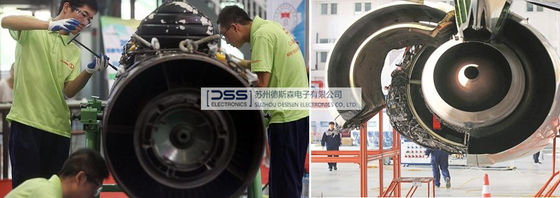

The FET-2021X is suitable for the inspection of individual attorney bolt holes as well as small cracks in internal threads, locating and inspecting, especially for periodic inspection of aerospace components.

Technical Parameters:

Name	Portable Eddy Current Scanner FET-2021X
Working temperature	-15~55℃
Saving temperature	-20~60℃
Relative humidity	not exceed 85%
working voltage	AC220±10V/DC12V

Support and Services:

1. From the date of completion of installation and commissioning of the equipment, as the beginning of the quality assurance period of the equipment. The supplier will warranty the equipment for one year and implement lifelong maintenance service for the equipment. In the equipment warranty period of the relevant costs borne by the supplier, in the equipment warranty period of the relevant costs of the supply side only charge material costs.

2. The equipment into normal operation after the supply side will still at any time for the demand side to provide all the technical advice

3. In the use of equipment in the process if the demand side can not be resolved on their own technical problems, the supply side in the receipt of the demand side of the request, we can carry out a virtual space conference, or as soon as possible to the scene.

FAQ:

Q: What is the brand name of the Metal Conductivity Meter?: A: The brand name is Desisen.
Q: What is the model number of the Metal Conductivity Meter?: A: The model number is FET-2021X .
Q: Where is the Metal Conductivity Meter made?: A: The Metal Conductivity Meter is made in China.
Q: Is the Metal Conductivity Meter certified?: A: Yes, the Metal Conductivity Meter is certified with ISO9001.
Q: What is the minimum order quantity?: A: The minimum order quantity is 1.
