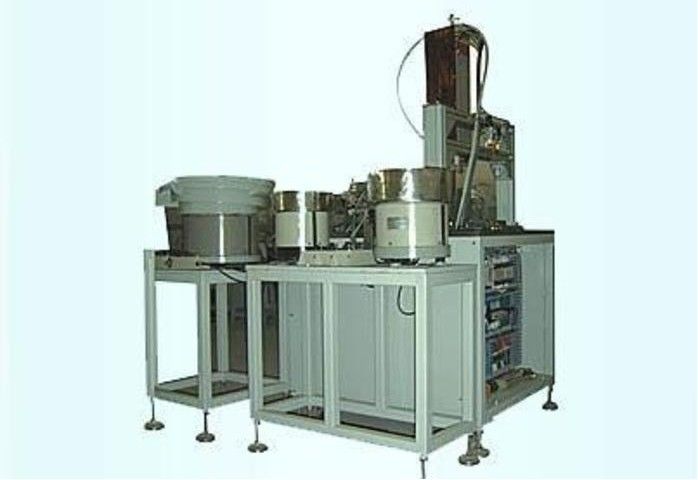

Customized Bearing Roller Eddy Current Instruments For Non Destructive Testing

bearing roller eddy current automatic testing systemSpecial equipment for automatic detection of bearing roller defects

Functional features:
1. Small and compact equipment can work on the workbench.
2. Balanced point probe, high detection sensitivity.
3. Using vibrating disk feeding mechanism, non-contact detection, high degree of automation of gate sorting.
4. Using fluorescent wave tube and height luminescent tube, the detection state is displayed intuitively.
Instrument parameters:
1. Test object: bearing roller and magnetic or non-magnetic metal parts of similar size
2. Applicable specifications: φ6mm~φ20mm
3. Detection sensitivity: ≤0.5mm (depending on workpiece length)
4. Phase shift range: 0°~360° (continuous)
5. Display mode: CRT waveform display and LED amplitude display
6. Geometric size: 1900mm×900mm×1000m (length × width × height) can be customized
